Why a Solder Joint Should Be Reheated Instead of Covered With More Solder

Usually, no. Don't just pile more solder onto a bad joint. On a circuit board, extra solder can cover up the real problem and can bridge to nearby connections.

If the joint looks bad because it never got hot enough, reheat it so the solder can flow onto both surfaces.

Add solder only when the surfaces are already wetted and the joint needs more material to finish. Good solder joint rework starts by finding out which of those two problems you have.

Why More Solder May Not Fix Poor Wetting

More solder adds volume, but it does not prove the solder has bonded to the metal underneath. "Wetting" means molten solder flows out and coats both the lead and the pad or trace. A joint can hold plenty of solder yet still lack wetting on one of those surfaces.

That's why a bigger blob can make things worse. A university hand-soldering guide warns that excess solder can cover potential problems and should be avoided. It also warns that excess solder can lead to solder bridges. So the joint may look fuller while the flaw stays hidden under it, and you may now have a new short to deal with.

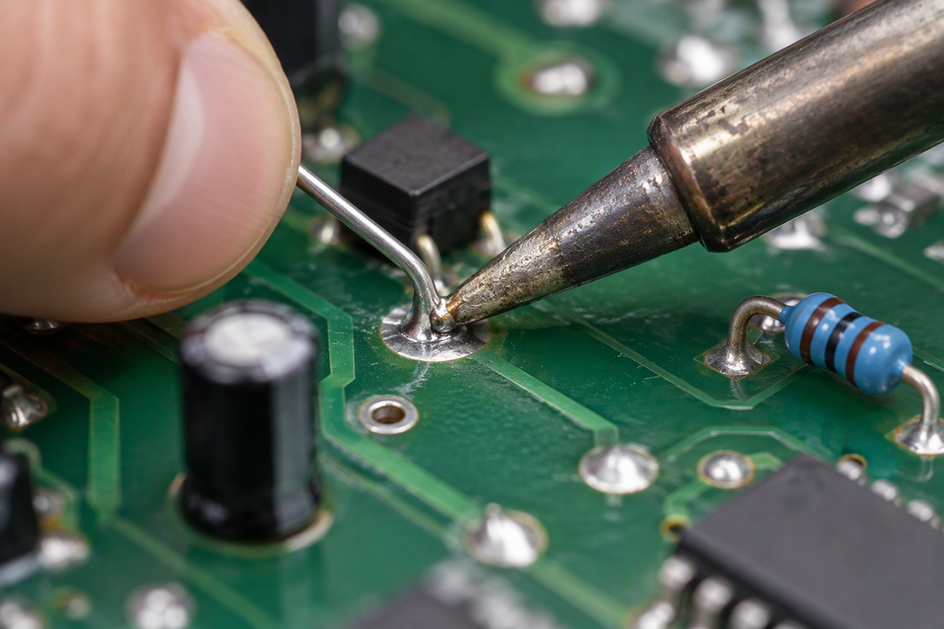

Reheating works on a different part of the problem. When the cause is poor heating, the same guide's method is to touch the iron tip to both the trace and the lead at once. Then you pull the iron away only after the solder has flowed and wetted every surface. Heating both parts lets the solder reach the place where the bond actually forms.

This has limits. Reheating fixes a joint that didn't get enough heat. It won't fix every bad joint. The guidance here also covers PCB hand soldering. It does not cover wire splices.

How to Tell Poor Wetting From Too Little Solder

Ask two separate questions about the joint. A single "does it look okay?" check isn't enough, because the two problems need opposite fixes.

Question 1: Did the solder flow and wet all the surfaces? The guide describes the result of good heating as solder that has flowed properly and wetted all surfaces. On a board joint, that means the lead and the pad or trace. If the solder has stayed on one part and hasn't spread onto the other, treat it as a wetting problem. More solder won't fix it.

Question 2: Is there enough solder? The guide treats amount as its own target: only enough solder to cover the joint and form a smooth fillet. A fillet is the smooth, sloped band of solder that runs between the lead and the pad. If the surfaces are wetted but the solder doesn't cover the joint or form that fillet, you're short on material. Wetting isn't the issue.

Keep the answers separate. A joint can pass question 2 and fail question 1. That is exactly the case the "add more solder" shortcut hides. Neither answer proves the joint is electrically sound, either. These two checks only help you pick the next step.

What to Do With a Suspect Joint

Choose your solder joint rework based on which question the joint failed. These actions apply to PCB hand soldering. Each one connects a condition to an action and the result to watch for:

• Solder didn't wet both surfaces, and you suspect poor heating: Reheat. Touch the iron tip to the trace and the lead together. Keep it there until you see the solder flow and wet all surfaces, then pull the iron away. If the solder spreads onto both parts, the heating problem is handled. Then check the amount.
• Surfaces are wetted, but the joint is thin: Add solder, but only enough to cover the joint and form a smooth fillet. Stop when you reach that point.
• The joint already has too much solder, or it touches a nearby pad: Don't add more. Excess solder is the condition that can hide defects and cause bridges. Removing it is a separate job, and you should do that before judging the joint again.
• Reheating doesn't get the solder to flow onto both surfaces: Stop repeating the same step. Reheating specifically targets inadequate heat, so if solder still refuses to flow across both parts, pause to reevaluate the joint rather than simply leaving the hot iron in place.

Fixes like these come up in many board-level jobs, including several of the common electronics repairs at home. Wire splices are a different job with their own setup. For example, choosing an iron temperature for wire splices is its own decision. Don't carry these PCB steps over to wire joints without separate guidance.

When to Stop and What Visual Inspection Can Prove

Stop rework when heating both parts fails to produce solder flow across the surfaces. A smoother joint is a visual indicator, but visual appearance alone does not verify electrical reliability.

Formal processes are strict about who inspects and what they look for. NASA PRC-7001's inspection requirement applies to the soldering process that specification covers. It calls for 100% visual inspection to confirm full and complete wetting and acceptable workmanship. The same document requires all soldering procedures to be done by trained and certified personnel.

That requirement applies to its covered aerospace process rather than a home workbench. Even so, it highlights that formal inspection verifies complete wetting rather than solder volume. On a DIY PCB project, a visual check only guides your next step, without serving as definitive proof of electrical integrity.

FAQs

Is a bigger solder joint a stronger joint?

Not necessarily. A bigger joint isn't treated as better. The PCB guidance aims for just enough solder to cover the joint and form a smooth fillet. Going past that adds risk, since excess solder can hide flaws and bridge to nearby connections.

What is a solder bridge?

A solder bridge is solder that connects two points that shouldn't be connected, like neighboring pads or pins. Excess solder is one way bridges form. That's one more reason to avoid fixing a doubtful joint by adding material.

Does this reheating advice apply to wire splices?

The steps in this article come from PCB hand-soldering guidance. That means heating the trace and the lead, then checking for a smooth fillet. They don't automatically carry over to splicing two wires. Treat wire joints as their own task with their own setup.

Does switching between leaded and lead-free solder change the rework?

The alloy affects melting behavior. That matters when you choose an iron setting. Keep the solder's melting range separate from the iron's working temperature, because they are different numbers. Our comparison of leaded vs lead-free solder covers how the alloys differ. The two diagnostic questions stay the same either way: did the solder wet both surfaces, and is there enough of it?
