How to Choose a Soldering Iron Tip for the Joint

How to Choose a Soldering Iron Tip for the Joint
A joint-first method for picking a soldering tip: balance contact area against access, adapt shape to crowded or open joints, and spot heat-delivery limits.

Share

Pick your soldering iron tip size by looking at the joint first. You want the broadest working face that makes good contact with the joint and can still reach it without touching nearby parts. The smallest tip is not automatically the most controlled choice, because a tip that is too small for the joint can't move enough heat into it.

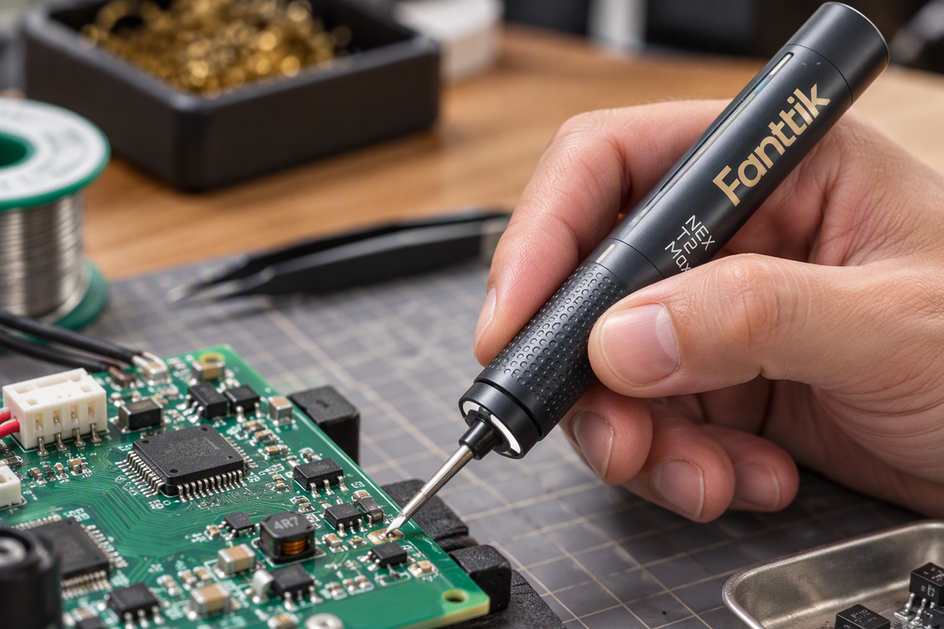

A Fanttik T2 Max soldering iron tip reaches a small circuit-board joint among nearby components.

No single tip width fits every joint. The surface you need to heat and the clearance around it decide the answer, and the iron itself sets a separate limit on how big a joint any tip can handle.

How the Joint and Clearance Set the Tip Size

Before you pick a tip, check two things: how much of the joint the tip face can touch, and how much room the tip has to get there. The right soldering iron tip size meets both conditions at the same time.

Start with contact. Heat moves from the tip into the joint through the area where they touch. For electronics work, the University of North Carolina's guide says to choose the tip shape with the highest contact surface area for the best heat conduction. Put simply, a face that sits against the pad and the lead together passes heat better than a point that barely touches one edge.

A Fanttik T2 Max soldering iron tip contacts a circuit-board pad and through-hole lead in an open area.

Next, check the approach path. Look at the joint from the angle your iron will come in. Note any tall parts, connector housings, or neighboring pads the tip could bump. Narrow tips have a real job here: iFixit notes that small-work tips can reach among crowded components, so a narrow face earns its place when clearance is the true limit.

Combine the two checks in this order:

  1. Find the part of the joint the tip can actually touch, usually the pad and the lead or wire sitting on it.
  2. Pick the broadest tip face that covers that surface well.
  3. Trace the approach path with that face. If it would hit a neighboring part, step down to a narrower face until it clears.
  4. Stop at the first face that fits. Going narrower than the clearance requires gives up contact and gains no access.

This is a judgment method, not a numeric sizing rule. It works the same way on a wire joint, as plain geometry: look at the wire and the surface it joins, then check what surrounds it. When a wire joint has open space around it, clearance may not force a narrow face at all. Contact then becomes the main check.

Choose a Tip Shape That Can Reach the Joint

Shape follows the same contact-and-access logic, but the board layout changes which side wins. A crowded pad pushes you toward a narrow shape, while an open lead or wire lets you favor contact.

For general electronics, UNC's guide names miniature needle or chisel point tips as the shapes that suit most work. That gives you two sensible starting shapes, not a rule that one of them is right for every joint.

Crowded, small joints. When parts sit close together, a fine, pointed tip can help reach the pad without touching its neighbors. The tradeoff is heat. iFixit says these precise small-work tips are suitable only for small joints because their small thermal mass can't transfer a large amount of heat. Thermal mass is the amount of metal in the tip that stores heat and hands it to the joint. A small pad between tight parts is the right job for this kind of tip.

Crowded but larger joints. This is the case to watch. A small tip may reach the joint and still fail to heat it well. If you can't fit a broader face, note that you're working at the edge of what a small tip can do. The next section covers the separate heat limit on the iron.

Roomier through-hole leads and wire joints. With open space around the joint, you're free to use a broader face. A chisel point has a flat face, which can make it easier to lay against a pad and lead at once. Run the same check from the first section: start broad, and narrow only if something is in the way.

When Tip Size Is Not the Heat-Delivery Problem

Tip size and the iron's power are two different limits. A broader tip helps only if the iron can supply the heat that tip is meant to deliver.

As iFixit notes on tip selection, larger tips suit larger jobs as long as the soldering iron has enough wattage to heat the joint. Wattage is the iron's power rating. A bigger tip offers more contact, but it can't add power the iron doesn't have.

Here's how that changes your next step. Say you've already moved to a broader face that fits the joint, and the joint still heats slowly or the solder won't flow onto it. Swapping to yet another tip size may not fix that. The limit may be the iron's wattage for that joint, and that's a question about the iron, not the tip.

Keep the iron's temperature setting separate from this question too. A high maximum temperature is not the same as the wattage that iFixit names as the condition for heating larger joints. Treat tip geometry, the temperature setting, and the iron's power as three separate decisions.

FAQs

Can one tip handle every joint on a project?

Sometimes, but not by default. iFixit points out that each tip shape comes in different sizes, and size affects how well a tip suits a given job. If one project mixes crowded small pads with open wire joints, you may need a narrow tip for one and a broader face for the other.

Is there a standard tip width for a given joint?

No standard width covers every joint. A more dependable approach is to measure the job by eye: the surface the tip must touch and the space around it. Pick the broadest face that fits, then narrow only for clearance.

Does this advice apply to plumbing, stained-glass, or jewelry soldering?

No. This guide covers small electronics and wire soldering, and the sources behind it address electronics work. Those other soldering categories involve different joints, materials, and tools, so don't carry these tip choices over without guidance written for that work.

What else should I prepare before soldering inside a device?

Plan how you'll open the device and protect its parts before the iron heats up. Our home electronics repair workflow covers ESD safety, torque control, and JIS fasteners, which helps you reach the board without damaging it.
