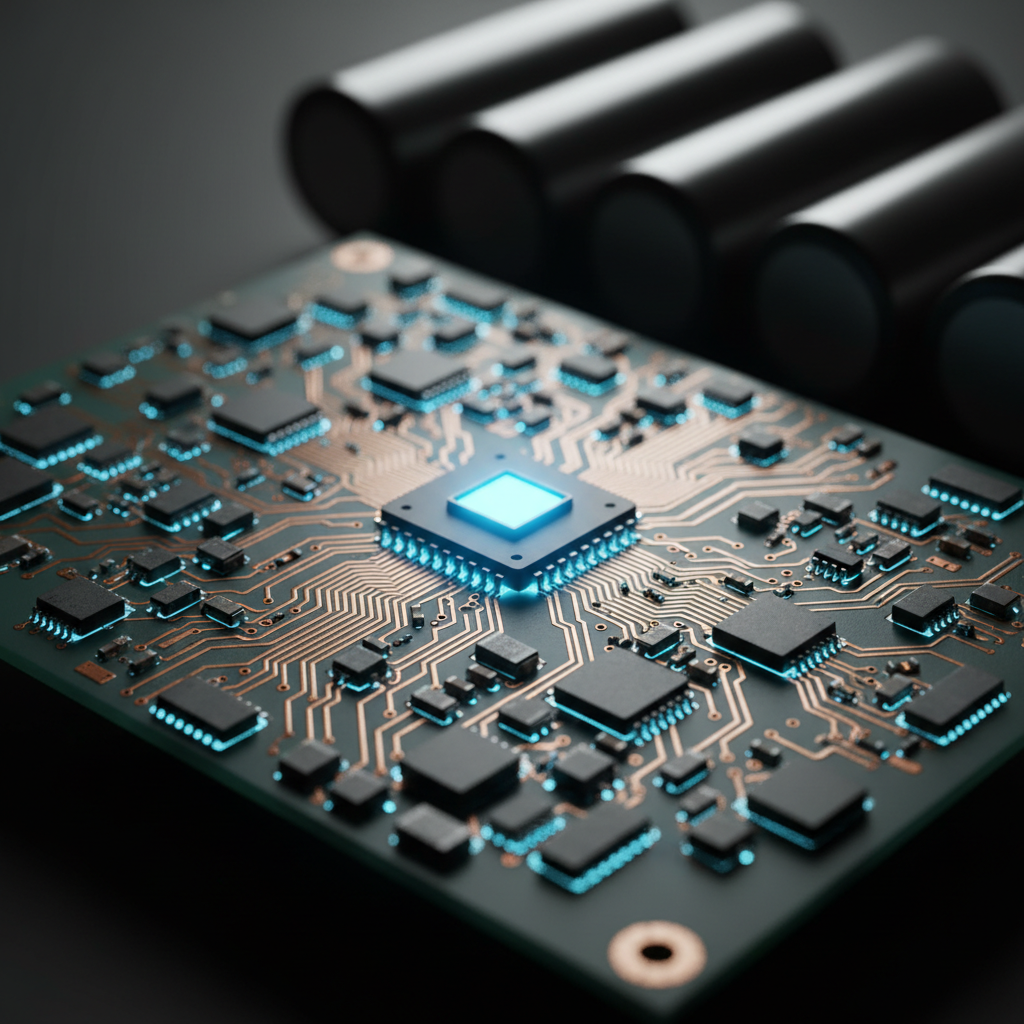

How BMS Deep Discharge Protection Saves Your Battery Investment

The Invisible Guardian: Why Your Battery Management System is a Financial Safeguard

For the modern prosumer, high-performance cordless tools and automotive emergency gear are significant investments in self-reliance. Whether it is a high-capacity jump starter or a precision electronics repair kit, the heart of these devices is the lithium-ion cell. However, lithium-ion chemistry can be volatile when pushed beyond its operational limits. The difference between a tool that lasts five years and one that fails prematurely often comes down to the engineering logic and MOSFET quality within the Battery Management System (BMS).

At its core, a BMS acts as the "brain" of the battery pack. While many users focus on peak current or total milliamp-hours (mAh), the most critical function for long-term durability is deep discharge protection. This article explores the methodical engineering required to help prevent irreversible cell damage, the practical application of safety margins, and why precision in voltage cut-offs is a primary differentiator in battery longevity.

Key Takeaways

• Safe Voltage Floor: Most professional-grade systems set a low-voltage cut-off between 2.8V and 3.0V per cell to provide a buffer against self-discharge and cell imbalance.
• The "Bricking" Risk: Discharging cells below 2.0V can cause copper dissolution and internal shorts (dendrites), which often renders the battery unsalvageable.
• Optimal Storage: For long-term health, store lithium-ion batteries at 50–60% State of Charge (SoC) rather than fully empty or fully charged.
• Temperature Sensitivity: Never charge a battery in below-freezing temperatures (32°F/0°C), as this can cause permanent "lithium plating" and safety hazards.

The Chemistry of "Bricking": What Happens at 0%?

To understand the value of BMS protection, we must first address a common misconception: that "0%" on a battery indicator means the cells are physically empty. In reality, a lithium-ion cell typically holds a safety buffer of charge when a device shuts off.

When a cell is discharged too deeply—often cited as below 2.0V in industry literature—the internal chemistry undergoes irreversible changes. At these extreme low voltages, the copper current collector in the anode can begin to dissolve into the electrolyte. When the battery is subsequently recharged, these dissolved copper ions can precipitate out, forming microscopic metallic bridges called dendrites. These dendrites can eventually puncture the separator, which may lead to an internal short circuit or localized heating.

Even if a short circuit does not occur immediately, the cathode structure often begins to degrade. According to research on lithium-ion battery degradation modes, repeated deep discharge cycles accelerate the loss of active lithium, which can permanently reduce the battery's capacity.

Logic Summary: Our understanding of "bricking" is based on the electrochemical principle that lithium-ion stability is voltage-dependent. We treat the 2.5V–3.0V range as a practical boundary to help prevent anode collector degradation, based on common industry safety protocols.

Threshold Engineering: 2.5V vs. 3.0V

A common challenge in budget-tier BMS design is setting the low-voltage cut-off (LVC) too low. Some entry-level manufacturers set their threshold at 2.5V or lower to maximize runtime for marketing purposes. While this increases short-term performance, it can significantly shorten the long-term lifespan of the cells.

Experienced engineers often target a more conservative cut-off, typically between 2.8V and 3.0V per cell under load. This 0.3V–0.5V buffer represents a critical safety margin that accounts for:

• Cell Imbalance: In a multi-cell pack, one cell may be slightly lower than the others. A 3.0V pack-level cut-off helps ensure the weakest cell does not dip into the high-risk zone.
• Self-Discharge: If a tool is stored immediately after a low-battery shutdown, natural self-discharge could pull a cell down to a critical level within weeks. A 3.0V cut-off provides a "shelf-life cushion."

The Precision of Measurement

A high-quality BMS does not just look at a static voltage number; it must accurately measure voltage under varying load conditions. When a high-draw tool, like a portable tire inflator, starts up, the battery voltage "sags" due to internal resistance. A basic BMS might read this sag as an empty battery and trigger a nuisance shutdown.

Conversely, sophisticated BMS algorithms compensate for this sag. By calculating the "rested" voltage based on the current draw, the system ensures the tool keeps working during peak use while still cutting off power the moment the actual chemical state of charge reaches the safety limit.

Case Study: The -20°F Fleet Emergency

To demonstrate how BMS protection translates to real-world reliability, let’s look at a scenario involving a commercial fleet manager in a northern climate. In these conditions, the BMS is a primary safeguard for the jump starter's internal cells.

Illustrative Scenario: Cranking a 6.7L Diesel at -20°F

In extreme cold, the demands on a battery system increase significantly. According to the SAE J537 standards for cold cranking, engine load increases as oil viscosity rises, while battery power availability decreases.

Parameter	Value	Unit	Rationale/Assumption
Ambient Temperature	-20	°F	Extreme winter baseline
Engine Type	6.7L Diesel	-	High-compression commercial load
Required Cranking Amps	~2,862	A	Example Model Output*
Vehicle Battery Contribution	~213	A	75% derating of an 850CCA battery
Power Gap to Fill	~2,650	A	The burden on the jump starter

*Note: The "Required Cranking Amps" is a theoretical model output based on an estimated ~425A per liter displacement required for diesel engines in sub-zero temperatures, plus a 20% safety margin for high-viscosity oil. Actual results vary by engine health.

In this "perfect storm," the jump starter's BMS must manage a massive current discharge while the cells are chemically sluggish. A pro-grade BMS identifies that at -20°F, the cells can only safely deliver a fraction of their rated power. It may pulse the power or trigger a protection lock-out to prevent the internal voltage from dropping below the critical 2.8V threshold. While this might mean the user needs to wait a few minutes for the battery to self-warm, it prevents the jump starter from being permanently damaged.

Modeling Note: This scenario uses a deterministic model based on SAE J537 cranking curves and BCI temperature derating. We assume a 0.7 efficiency factor for the BMS to account for thermal losses. This is an illustrative model, not a controlled lab study.

Storage Strategy: The 50–60% Rule

The BMS's job doesn't end when the tool is turned off. For long-term owners, storage is a critical factor in battery health. Storing tools at 100% (fully charged) or 0% (fully empty) can be detrimental.

Storing at 100% State of Charge (SoC) keeps the cells at a high voltage (typically 4.2V), which can stress the electrolyte and accelerate chemical breakdown. Storing at 0% risks a deep discharge scenario, as the BMS's own idle monitoring circuitry—though minimal—will eventually drain the remaining buffer.

The practical rule of thumb is to charge or discharge to 50–60% SoC (approximately 3.7V to 3.8V per cell) before long-term storage. This is a common industry practice recommended by resources like Battery University to minimize stress on the cathode and provide a window for safe self-discharge.

Compliance and the Global Standard for Trust

As the world shifts toward a cordless economy, regulatory bodies are establishing benchmarks for battery safety. The EU General Product Safety Regulation (GPSR) 2023/988 and the EU Batteries Regulation 2023/1542 are setting requirements for "traceability" and "lifecycle requirements."

These regulations are increasingly encouraging manufacturers to provide:

1. Lifecycle Reporting: Clarification on how many cycles the battery can handle before reaching 80% capacity.
2. Battery Replacement Pathways: Information on whether the cells are replaceable by users or professionals.
3. Safety Documentation: Evidence of UN 38.3 transport testing and IEC 62133 safety compliance.

This shift is detailed in the manufacturer white paper, The 2026 Modern Essential Gear Industry Report (Fanttik), which highlights that transparency in safety engineering is becoming a primary competitive advantage.

Common "Red Flags" in BMS Design

When evaluating a new tool, look for these indicators of a potentially lower-quality BMS:

• Lack of Hysteresis: Hysteresis is the "gap" between the cut-off voltage and the "re-enable" voltage. A poor BMS might cut power at 3.0V, but as soon as the load is removed, the voltage "bounces" back to 3.1V, causing the system to turn back on. This results in rapid "on-off" cycling (chatter) that can damage motors and cells.
• Single-Point Failure: In some budget designs, if the MOSFETs (switches) overheat, they can fail in the "closed" position. This can bypass protection and allow the battery to drain to absolute zero, creating a safety hazard.
• No Temperature Compensation: Lithium batteries behave differently at 100°F than at 0°F. A "one-size-fits-all" voltage threshold often suggests a generic BMS that hasn't been tuned for specific environmental use cases.

Actionable Checklist for Long-Term Battery Health

1. The "First Charge" Audit: After purchasing a new tool, charge it to 100% and use it until the first auto-shutdown. A clean shutdown without "stuttering" indicates a well-tuned BMS.
2. The Storage Routine: If not using a tool for more than 30 days, aim for ~50% charge (usually 2 or 3 bars on most indicators).
3. Avoid "Top-Off" Obsession: Keeping a battery on a charger indefinitely can be harmful if the charger lacks a proper termination circuit.
4. Temperature Awareness: Never charge a battery that is below freezing. If your tool has been in a cold garage, bring it inside for at least two hours before plugging it in.
5. Heed the Shutdown: If a tool shuts off, do not repeatedly try to restart it to "finish the job." Forcing a few more seconds of runtime is the fastest way to risk permanent cell damage.

Summary of Technical Specifications for Prosumers

Feature	Practical Requirement*	Why it Matters
Low Voltage Cut-off	2.8V - 3.0V (under load)	Helps prevent copper dissolution and "bricking"
Over-Discharge Hysteresis	>0.2V	Prevents damaging on-off cycling
Temperature Sensing	NTC Thermistor Integration	Adjusts thresholds based on environmental heat/cold
Cell Balancing	Active or Passive	Helps ensure the weakest cell is protected
Compliance	IEC 62133 / UN 38.3	Verified safety for transport and daily use

*Note: These requirements are derived from general industrial practices and electrochemical safety data provided by sources like Battery University. Specific requirements may vary by manufacturer.

Final Thought: Trust the "Boring" Engineering

In a market often driven by "peak power" claims, the most valuable part of your tool is often the one you never see. The BMS is a silent sentinel, working to help ensure your gear is ready when you are. By choosing tools that prioritize safety engineering and voltage protection, you are securing a long-term asset rather than a temporary convenience.

---

Disclaimer: This article is for informational purposes only and does not constitute professional engineering or safety advice. Always refer to your specific product's user manual for official safety guidelines. Lithium-ion batteries can be hazardous if misused.

References

• Battery University: Discharging at High and Low Temperatures
• EU Batteries Regulation (EU) 2023/1542
• SAE J537: Storage Batteries - Cold Cranking Amps
• Fanttik Whitepaper: Engineering Trust in a Cordless World (Manufacturer Data)
• ScienceDirect: Identification and quantification of degradation modes in lithium-ion batteries
