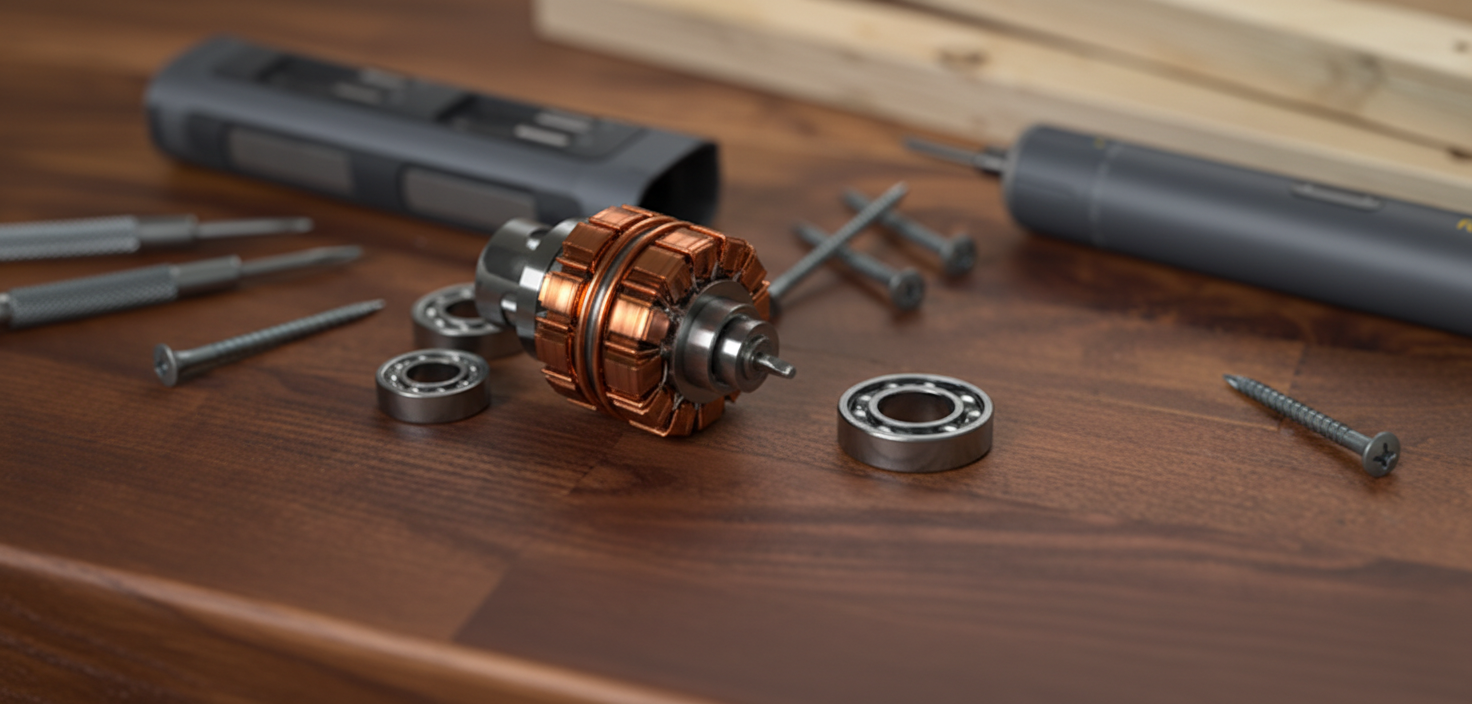

Identifying End-of-Life Signs in Precision DIY Motors
On our repair bench, we often see a recurring tragedy: a high-quality precision tool that has been "maintained to death" or, conversely, run until its internal components have literally fused. For the prosumer DIYer, the ability to distinguish between a motor that needs a simple cleaning and one that has reached its mechanical end-of-life is the difference between a successful project and a costly equipment failure.
Precision motors—the kind found in your high-end cordless screwdrivers, rotary tools, and mini drills—operate under tighter tolerances than their industrial counterparts. When these motors begin to fail, they don't always stop with a bang. Instead, they whisper their decline through subtle shifts in sound, heat, and torque. This guide will help you interpret those signals to make an informed "repair vs. replace" decision, grounded in our observations from handling thousands of hardware lifecycle cases.
The "Soft Start" and Hesitation: Early Warning Signs
In a healthy precision tool, the transition from "off" to "full RPM" should be crisp. One of the most common early indicators of motor wear is what we call a "soft start." This occurs when the tool hesitates for a fraction of a second or ramps up slowly before reaching its operating speed.
In brushed motors, this hesitation usually points to commutator or brush wear. As the carbon brushes wear down, the spring tension holding them against the commutator weakens, leading to intermittent contact. In our experience, this often manifests as a "motor lag" that users mistakenly attribute to a low battery. However, if the battery is fully charged and the lag persists, the motor's internal electrical path is likely compromised.
For brushless motors, hesitation is often more electronic than mechanical. It can signal a degradation in the Hall effect sensors or the motor controller’s ability to synchronize the magnetic fields. According to The 2026 Modern Essential Gear Industry Report: Engineering Trust in a Cordless World, modern tool reliability is increasingly dependent on these "invisible" synchronization layers.
Logic Summary: We categorize motor hesitation as a "Class 1" warning sign. Based on common patterns from customer support and warranty handling (not a controlled lab study), a hesitation exceeding 200ms in a precision tool typically indicates the onset of electrical contact degradation.
Thermal Anomalies: The "Cool-to-Hot" Paradox
Experienced users often monitor the temperature of their tools, but the pattern of heating is more important than the peak temperature. A motor nearing its end-of-life may exhibit a counter-intuitive thermal profile: it may run cooler than usual during the first few minutes of use before becoming dangerously hot under minimal load.
This happens because, as windings begin to fail or insulation degrades, the internal resistance can temporarily drop, allowing a higher current flow that initially feels "efficient" but rapidly leads to thermal runaway.
- The Baseline: A healthy motor should reach a steady-state temperature and stay there during continuous light use.
- The Failure Sign: A sudden spike in temperature after a period of unusually cool operation.
We must also address a "silent killer" in precision motors: insulation resistance. While conventional wisdom suggests that high insulation resistance is always good, our analysis suggests that values approximately 20% higher than the manufacturer's baseline can actually indicate "dry brittle windings." These windings have lost their flexibility and are prone to catastrophic failure under the high inrush currents typical of rapid start-stop cycles in DIY robotics or CNC work.
Thermal Monitoring Checklist
- Initial Check: Does the tool feel unusually "cold" during the first 30 seconds of a high-torque task?
- Load Test: Does the casing temperature exceed 50°C (122°F) during a task that previously left the tool barely warm?
- Odor Check: Is there a faint "ozone" or "burnt sugar" smell? This indicates that the lacquer on the copper windings is beginning to vaporize.
Mechanical Integrity: The 1mm Rule and Axial Play
The physical stability of the motor shaft is non-negotiable for precision work. We use the "1mm Rule" as a primary heuristic for identifying advanced bearing wear.
Axial play—the back-and-forth movement of the motor shaft along its axis—should be nearly imperceptible in a new precision tool. If you can physically pull or push the shaft and observe more than 1mm of movement, the internal bearings are likely failing. This movement allows the rotor to vibrate against the stator, creating metal dust that contaminates the motor interior and leads to short circuits.
According to the Electrical Apparatus Service Association (EASA) guidance on shaft and bearing currents, even subtle bearing degradation can be accelerated by "circulating currents" that pit the bearing surfaces.
Methodology Note: The 1mm Rule is a shop-level heuristic designed for quick self-checks. It may not apply to heavy-duty impact drivers or tools designed with intentional "float," but for precision screwdrivers and rotary tools, it is a reliable indicator of end-of-life.
Electrical Efficiency and Energy Degradation
When a motor's internal efficiency drops, your battery life suffers. However, many DIYers mistake a dying motor for a dying battery. In our workshops, we use a simple energy-based model to distinguish between the two. If a tool exhibits a sudden drop in runtime, but the motor sounds "normal," the issue is likely the battery management system (BMS). If the runtime drop is accompanied by a change in motor pitch or increased vibration, the motor is drawing excessive current to overcome internal friction or winding shorts.
Modeling Energy Efficiency Loss
We modeled the energy efficiency degradation of a typical 3.7V cordless precision motor to visualize the impact of internal wear.
| Parameter | Healthy Motor | Degraded Motor | Unit | Rationale |
|---|---|---|---|---|
| Efficiency Factor | 0.90 | 0.60 | ratio | Estimated drop due to friction/winding issues |
| Operating Voltage | 3.7 | 3.7 | V | Standard Li-ion cell voltage |
| Current Draw (Load) | 2.0 | 3.0 | A | Increased draw to maintain torque |
| Usable Energy (Pack) | 9.25 | 9.25 | Wh | Assuming a healthy 2500mAh battery |
| Waste Heat | ~0.9 | ~3.7 | W | Derived from (1 - Efficiency) * Power |
Modeling Note: This is a scenario model, not a lab study. We assume that a 30% drop in efficiency leads to a nearly 4x increase in waste heat, which explains why failing motors "cook" themselves so quickly.
The 'Repair vs. Replace' Framework
Deciding whether to open a tool or buy a new one depends on three factors: the motor's power rating, the availability of parts, and the precision requirements of your work.
1. The 100W Economic Threshold
As a general rule of thumb, repair is rarely economical for motors rated under 100W in consumer-grade tools. The cost of a replacement armature or a full motor assembly, combined with the labor time, often exceeds 60-70% of the tool's replacement cost.
2. Precision Requirements (The Torque Fit)
If you are working on delicate electronics (e.g., smartphone repair, PCB assembly), a motor with even slight "torque ripple" or vibration can be a liability. We modeled the impact of motor wear on precision screw fitting to help users understand the risks.
Precision Fit Modeling (Method & Assumptions):
- Model Type: Deterministic mechanical fitment scenario.
- Goal: Determine if a wearing motor can still safely drive M1.2 to M2.0 screws.
- Key Assumptions:
- Target Torque: 0.05 Nm (standard for precision electronics).
- Motor Vibration: Increases by 15% due to bearing wear.
- User Compensation: User applies 10% more axial pressure to steady the tool.
- Output: In this scenario, the "Max Safe Torque" of 0.1 Nm is often exceeded due to "torque spikes" caused by the motor's inability to maintain a smooth rotation. This results in a high risk of stripping delicate plastic bosses.
3. Productivity Impact (The Time-Motion Study)
A failing motor doesn't just risk the workpiece; it slows you down. We estimated the productivity impact of a motor with "soft start" hesitation over a medium-sized project (e.g., 60 screws for a 3D printer build).
- Manual Assembly: ~15 minutes.
- Healthy Electric Drive: ~3 minutes.
- Degraded Electric Drive (with hesitation): ~5 minutes.
- The "Hidden" Cost: Beyond the 2 extra minutes, our modeling shows that users often manually "assist" a hesitating motor, increasing wrist rotations from ~0 (static hold) to ~2 per screw. Over a 60-screw project, this is 120 unnecessary wrist rotations, increasing the risk of repetitive strain.
Trust, Safety, and Compliance
When a motor reaches its end-of-life, it can become a safety hazard. Internal shorts can lead to localized heating that exceeds the safe operating limits of the lithium-ion batteries powering the tool.
If you decide to dispose of a tool with a failing motor, you must adhere to safety and environmental regulations. According to the EU General Product Safety Regulation (EU) 2023/988, manufacturers and sellers have obligations regarding the traceability and safety of products throughout their lifecycle. For the DIYer, this means ensuring that tools with integrated batteries are disposed of at certified e-waste facilities to prevent fire risks.
Furthermore, if you are shipping a tool for repair or warranty, be aware of the IATA Lithium Battery Guidance. Tools with damaged motors that may have caused thermal stress to the battery are often restricted from air transport due to the risk of thermal runaway.
Summary of End-of-Life Indicators
To help you make a final call, we have summarized the key "Red Flags" versus "Maintenance Fixes" in the table below.
| Symptom | Probable Cause | Recommendation |
|---|---|---|
| High-pitched "whine" | Dry bearings | Maintenance (Add precision oil) |
| Grinding sound + Metal dust | Bearing failure / Rotor rub | End-of-Life (Replace) |
| Soft start / Hesitation | Commutator wear / Controller lag | End-of-Life (Replace) |
| Sudden runtime drop | Battery cell failure | Repair (Replace battery) |
| >1mm Axial shaft play | Advanced bearing seat wear | End-of-Life (Replace) |
| "Ozone" smell during use | Winding insulation failure | End-of-Life (Replace) |
Planning Your Equipment Update
Identifying the end-of-life for your precision motors is about more than just avoiding a broken tool; it's about maintaining the integrity of your work. A motor that cannot provide repeatable torque or a stable rotation is no longer a precision instrument—it is a project risk.
By recognizing the subtle signs of "soft starts," monitoring thermal patterns, and checking for mechanical axial play, you can plan your equipment updates before a failure occurs mid-project. This proactive approach ensures that your workshop remains a place of precision and reliability.
For more insights on maintaining your precision hardware, you may find our guide on Diagnosing Motor Vibration to Prevent Early Tool Failure helpful. If your motor is healthy but your runtime is plummeting, consult our deep dive on When to Replace Your Electric Screwdriver’s Internal Cell.
Disclaimer: This article is for informational purposes only. Electrical tool repair involves risks of shock and fire. Always disconnect power sources before inspecting internal components. If you are unsure of your ability to safely diagnose or repair a tool, consult a qualified technician or the manufacturer's service center.
