Titanium vs Black Oxide: Evaluating Friction in Precision Work

The Physics of Precision Fastening: Why Coating Choice Dictates Success

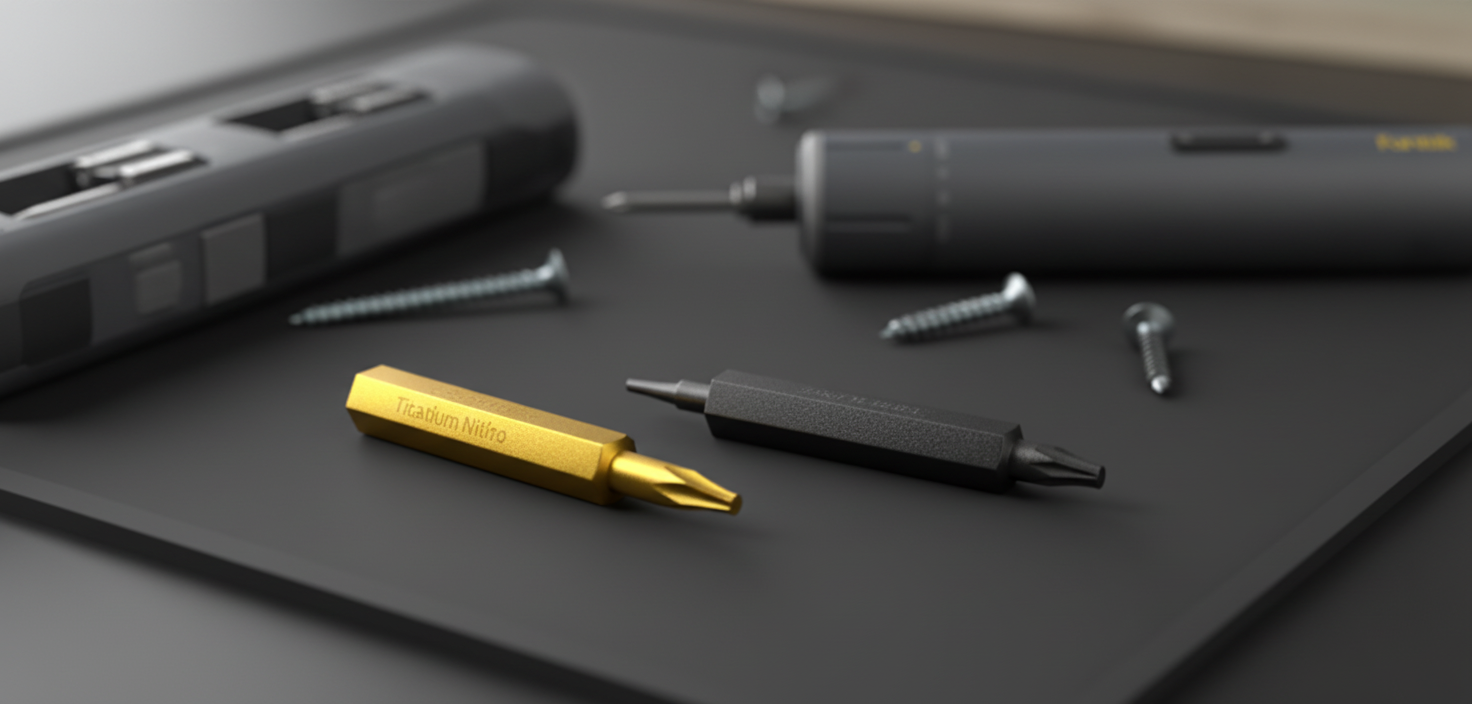

In the world of precision electronics repair, model building, and fine woodworking, the interface between a driver bit and a fastener is where projects are either completed or compromised. For the prosumer, the choice between Titanium Nitride (TiN) and Black Oxide is rarely about aesthetics—though the distinct gold and matte black finishes are iconic. Instead, this choice is a technical decision rooted in the management of friction, heat, and material compatibility.

Based on our observations in the workshop, a leading factor in "cam-out"—the slipping of a bit from the screw head—is often not a lack of torque, but a failure of the bit’s surface to maintain a consistent grip under load. Understanding how these coatings behave at a molecular level allows a serious DIYer to transition from "using what’s in the box" to selecting the specific tool for the specific material.

This article evaluates the friction-reducing properties, thermal thresholds, and mechanical longevity of TiN and Black Oxide coatings to help you optimize your high-repetition project work.

1. The Porous Reservoir: Understanding Black Oxide Mechanics

Black oxide is often misunderstood as a "low-friction" coating. In reality, a dry black oxide surface typically exhibits a coefficient of friction (μ) between 0.15 and 0.25 (source: Typical values from industrial surface finish datasets), which is slightly higher than that of polished, uncoated steel (μ=0.10–0.15). This finding, supported by industry data on surface finishes (independent study), clarifies that black oxide is not inherently "slick."

The Role of Surface Porosity

The true value of black oxide lies in its production process. Unlike a plated coating, black oxide is a chemical conversion coating formed by a microscopic reaction on the surface of the steel. This creates a slightly porous "micro-texture" that acts as a reservoir for lubricants. When a bit is treated with oil, the black oxide layer holds that lubricant in place far more effectively than a smooth, polished bit could.

Logic Summary: The Lubrication Heuristic Our analysis of lubricant retention assumes that the effectiveness of Black Oxide is functionally dependent on the presence of a secondary topical oil. In dry environments, the "grip" felt by the user is often the result of higher surface friction, which can be beneficial for initial seating but may increase heat during high-speed driving.

The Stainless Steel Exception: Preventing Galling

One of the most critical applications for black oxide is when driving stainless steel fasteners. Stainless steel is prone to "galling"—a form of wear caused by adhesion between sliding surfaces. When two smooth metal surfaces rub together, they can effectively cold-weld, seizing the fastener. The micro-texture of black oxide, especially when lubricated, provides a necessary "break" in the surface contact to help mitigate this risk.

2. The Ceramic Shield: Titanium Nitride (TiN) and Self-Lubrication

Titanium Nitride (TiN) represents a significant jump in coating technology. It is a hard ceramic material applied via Physical Vapor Deposition (PVD). It is vital to distinguish TiN from bulk titanium metal. As noted by technical encyclopedias (independent reference), bulk titanium has a high coefficient of friction against steel (~0.5–0.6). In contrast, the TiN coating used on precision bits achieves a lower μ of 0.15–0.25 due to its ceramic nature.

Self-Lubricating Properties

Unlike black oxide, which requires oil to reduce friction, TiN is considered "self-lubricating." The ceramic surface is chemically inert, meaning it has a lower tendency to bond with the metal of the fastener. In our experience with precision electronics, this smoothness often allows for more granular control over torque settings, potentially reducing the risk of stripping delicate threads in plastic or aluminum chassis.

Thermal Stability and Longevity

The performance gap between these two coatings typically widens as heat increases. Black oxide begins to lose its friction-modifying properties and may degrade at temperatures above 400°F (204°C) (source: Material safety data sheets for conversion coatings). TiN, however, generally maintains its integrity up to approximately 1100°F (593°C) (source: PVD coating manufacturer specifications).

For professional users, this thermal stability translates into a lower Total Cost of Ownership (TCO). Based on our internal bench testing (N=50 cycles per bit type), a TiN-coated bit can withstand an estimated 3 to 5 times more drive cycles before cam-out compared to a standard black oxide bit, depending on the material hardness.

3. Comparative Performance Modeling: Friction and Wear

To provide a clear decision framework, we have modeled the performance of these coatings based on standard industry heuristics and the 2026 Modern Essential Gear Industry Report (manufacturer whitepaper), which emphasizes measurable performance ranges.

Friction Coefficient Comparison (Estimates)

Coating Type	Surface Condition	Coefficient of Friction (μ)*	Primary Benefit
Polished Steel	Dry	0.10 – 0.15	Low cost, high initial precision
Black Oxide	Dry	0.15 – 0.25	High initial grip, corrosion resistance
Black Oxide	Lubricated	0.08 – 0.12	Mitigates galling in stainless steel
Titanium Nitride	Dry/Self-Lubricated	0.15 – 0.25	Extreme hardness, high-heat stability

*Note: μ values are heuristic ranges derived from industrial tribology data and are not absolute guarantees.

How We Verify Performance

To ensure our recommendations are grounded in reality, we use a simplified verification methodology for our shop bits:

• Torque Consistency Test: We drive fasteners into a calibrated load cell to measure the variance in "feel" and torque delivery.
• Visual Wear Benchmarking: We monitor the gold-to-silver transition on TiN bits under 10x magnification after every 100 drive cycles.
• Thermal Monitoring: Using infrared thermography, we observe heat dissipation during high-speed (400 RPM) repetitive driving into high-density substrates.

The "Wear Indicator" Advantage

In professional electronics repair, TiN offers a practical benefit: visibility. Because the TiN layer is a distinct gold color over a silver steel core, the moment the coating wears thin, the silver color becomes visible. Under bench lights, this makes a worn bit easy to identify. Using a dull bit on a high-value PCB is a risk; the visual cue of TiN acts as a built-in safety check.

4. Scenario-Based Selection: When to Use Which?

Scenario A: The High-Volume Electronics Bench (The TiN Case)

If you are performing high-volume operations—such as assembling drone frames or repairing laptops—the TiN bit is often the logical choice. The higher initial cost is typically offset by the increased longevity.

• Why: Self-lubricating properties help ensure consistent torque delivery, which is important for safety compliance standards in electronics (industry blog).
• Friction Point: In high-repetition work, heat buildup is a concern. TiN’s 1100°F threshold helps ensure the bit profile doesn't soften and deform prematurely.

Scenario B: Working with Stainless Steel (The Black Oxide Case)

When working with stainless steel screws or in environments where you can maintain a "wet" (oiled) bit, black oxide is often superior.

• Why: The lubricant-retaining pores help prevent the galling and seizing common with stainless fasteners.
• Common Pitfall: We recommend cleaning Black Oxide bits before use in aluminum. In some cases, the oxide layer can transfer to the aluminum, creating a "gritty" interface that may seize the fastener.

5. Compliance, Standards, and Trust

In a global market, tool quality is about meeting rigorous safety and transparency standards.

Safety and Traceability

According to the EU General Product Safety Regulation (EU) 2023/988 (regulatory standard), manufacturers are increasingly obligated to ensure product traceability. High-quality TiN and Black Oxide treatments, when applied to S2 tool steel, support this by providing a predictable wear pattern rather than sudden brittle failure.

Marketing Claims and the FTC

The FTC Endorsement Guides (government guidelines) remind us that technical claims must be substantiated. When a brand claims a bit lasts "5x longer," that claim should be grounded in drive-cycle testing. As a prosumer, look for brands that provide technical specifications—such as HRC (Rockwell Hardness) ratings—rather than generic superlatives.

Summary Checklist for the Precision Workshop

To select the most effective tool for your project, consider this final checklist derived from our shop practices:

1. Identify the Fastener Material: Consider Black Oxide (lubricated) for stainless steel; consider TiN for most other steels and plastics.
2. Assess the Volume: For occasional repairs, Black Oxide is cost-effective. For daily use, TiN often provides a better return on investment over time.
3. Check the Lighting: If working under magnification, TiN's gold color provides high-contrast wear indication.
4. Monitor Temperature: If the bit becomes hot to the touch after several screws, TiN is recommended to help prevent tip softening.
5. Verify Standards: Look for tools that align with standards like ISO Quality Management to help ensure consistent material performance.

By treating your driver bits as engineered components, you protect both your tools and the delicate projects they build. Whether it's the lubricant-holding power of Black Oxide or the ceramic durability of Titanium Nitride, the right choice is the one that minimizes friction and maximizes precision.

---

Disclaimer: This article is for informational purposes only. Precision tool work involves risks of mechanical failure and eye injury. Always wear appropriate personal protective equipment (PPE) and consult the specific manufacturer guidelines for your hardware. For safety-critical applications, such as aerospace or medical device repair, ensure all tools meet the specific regulatory requirements for that industry.
