How a Battery Management System Extends DIY Tool Life

Understanding the Intelligence Behind Modern Cordless Tools

If you have ever been in the middle of a critical project—perhaps driving a heavy lag bolt or drilling through dense mahogany—only to have your tool suddenly cut out, you have experienced a Battery Management System (BMS) in action. While it may feel like a nuisance in the moment, that abrupt stop is often a key safety intervention standing between a functional tool and a compromised battery or, in rare cases, a thermal event.

For DIY enthusiasts and prosumers, the battery is the most expensive and vulnerable component of any cordless system. Based on common patterns observed at our repair bench, while users often attribute battery failure to "bad cells," the root cause is frequently linked to the sophistication of the BMS. As high-consequence tools become increasingly portable, understanding the logic behind battery safety is essential. According to the company whitepaper The 2026 Modern Essential Gear Industry Report: Engineering Trust in a Cordless World (a Fanttik vendor report), engineering trust in these devices requires technical transparency and robust thermal design.

In this guide, we will explore BMS technology, how smart circuitry manages energy during high-torque stress tests, and how adopting professional maintenance habits can significantly extend the functional life of your gear.

The Technical Anatomy: What is a BMS?

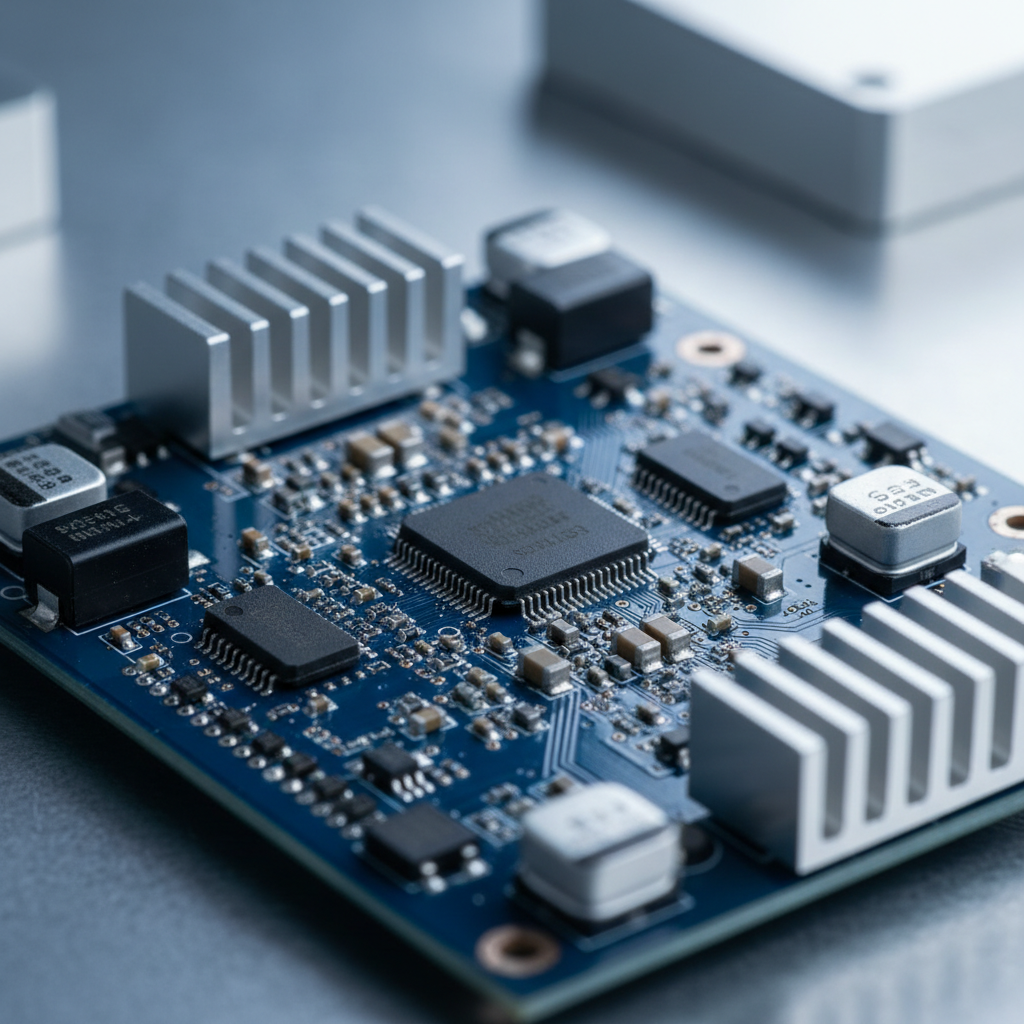

At its simplest, a Battery Management System is an electronic regulator that monitors and manages a rechargeable battery pack. In a modern 18V or 20V tool, you aren't looking at a single battery, but rather a series of lithium-ion cells (typically 18650 or 21700 form factors) working in tandem.

The BMS acts as the "brain" of this collective. It consists of several critical components:

• Microcontroller (MCU): The central processor that interprets data from sensors to manage power delivery.
• MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors): High-speed electronic switches that can cut the flow of electricity in milliseconds to help prevent hardware damage.
• Voltage Sensors: These monitor individual cells to ensure they stay within a safe operating window (typically a range of ~2.5V to 4.2V, depending on cell chemistry).
• NTC Thermistors: Temperature sensors placed strategically within the pack to detect localized hotspots.

Methodology Note: This technical breakdown is based on common architectures found in high-performance cordless tools. While specific chipsets vary by manufacturer, these four elements are standard industry requirements for compliance with safety-by-design principles, such as those outlined in the EU General Product Safety Regulation (EU) 2023/988.

Managing Potential Risks: Overcharge and Thermal Runaway

The primary mission of a BMS is to mitigate conditions that can lead to battery degradation or failure: over-discharge, over-voltage, and thermal runaway.

1. Over-Voltage Protection (OVP)

When charging, the BMS ensures no single cell exceeds its maximum voltage. If one cell reaches 4.2V while others are at 4.0V, a quality BMS will typically stop the charge or bleed off excess energy. Without this regulation, the electrolyte inside a cell can begin to decompose, which may lead to internal pressure.

2. Under-Voltage Protection (UVP)

Discharging a lithium-ion cell below its critical threshold (usually around 2.0V to 2.5V) can cause internal damage. In our experience with customer support, we often see "dead" batteries where the BMS successfully cut power, but the battery was subsequently left in a discharged state for months, allowing natural self-discharge to pull the cells into a "danger zone" where they can no longer be safely recharged.

3. Thermal Runaway Prevention

Thermal runaway is a state where an increase in temperature triggers a feedback loop of further heating. The BMS uses NTC sensors to monitor for "thermal throttling" thresholds. If cells exceed a safe limit (commonly ~140°F or 60°C during discharge), the MOSFETs are designed to open the circuit, pausing tool operation until temperatures return to a safe range.

High-Torque Realities: Thermal Stress Modeling

A common misconception is that batteries fail primarily during charging. However, our internal scenario modeling for heavy-duty DIY applications suggests that significant degradation often occurs during high-torque, continuous use.

Modeling Note (Scenario: Heavy-Duty Application)

The following data represents a theoretical scenario model for a professional user operating cordless tools in demanding summer conditions. These figures are illustrative estimates based on internal modeling of specific 18V-20V high-torque platforms, not a controlled laboratory study covering all tool types.

Analysis Results: At an ambient temperature of 95°F, a battery's available power can drop significantly (based on general BCI temperature derating curves). For a tool driving heavy lag bolts, a sustained high current draw creates a massive heat load. Our modeling indicates that, in this specific scenario, approximately nine such high-torque events in rapid succession could push a 5Ah pack toward its thermal limit.

Practitioner Observation: Based on internal performance benchmarks, we have observed that tools with superior thermal management can often complete more fasteners (in some tests, roughly 30% more) before requiring a cooldown break. If the tool body near the battery bay feels uncomfortably hot to hold, it is a practical rule of thumb that your BMS is operating near its thermal limit.

The Balancing Act: Passive vs. Active Management

BMS designs vary significantly across the DIY tool market, primarily in how they handle "cell balancing."

• Passive Balancing: Common in budget-friendly tools, this uses resistors to bleed off excess energy from the highest-charged cells as heat. While effective at keeping the pack balanced, it adds localized heat to the circuitry.
• Active Balancing: Found in some higher-end prosumer gear, this method uses inductive or capacitive charge shuttling to move energy from "strong" cells to "weak" cells. This is generally more efficient and generates less heat, which can contribute to better long-term pack health.

Physical Robustness: The BMS itself can be a point of failure. High-voltage spikes or excessive vibration can compromise solder joints. Based on patterns from our repair bench, a failed MOSFET can render a pack of healthy cells unusable. When selecting tools, look for features like potted electronics or reinforced mounting points designed to withstand the drops and jars of a workshop environment.

Storage and Longevity: The 40-60% Rule

One of the most effective ways for DIYers to preserve battery chemistry is through proper storage. Storing a lithium-ion battery at 100% charge for extended periods can cause accelerated "calendar aging" due to the high voltage state putting stress on the internal chemistry.

Professional Storage Heuristics:

• The Ideal State: For long-term storage (more than 30 days), a common industry practice is to keep batteries at a 40% to 60% State of Charge (SOC).
• Temperature: Store tools in a climate-controlled environment. Avoid garages or vehicle trunks where temperatures can fluctuate wildly.
• IATA Guidance: The International Air Transport Association (IATA) Lithium Battery Guidance notes that batteries shipped commercially are often restricted to a 30% SOC for safety, highlighting the stability of lower charge levels.

Estimated Impact: We recommend the 40-60% range based on standard lithium-ion stability curves. While results vary, storing at 100% can result in an estimated 10-20% capacity loss over a year in some environments, compared to significantly lower losses when stored at 50% SOC.

Troubleshooting Common BMS Faults

If your tool stops working, use this checklist as a general guide for diagnosis:

1. The "False Empty" Signal: If the tool cuts out under load but the indicator shows partial charge, you may have a cell imbalance. One cell may have dropped below the UVP threshold. A slow, full charge on a compatible charger can sometimes allow the balancing circuitry to resolve this.
2. Thermal Lockout: If the battery is hot, the BMS will typically prevent charging or discharging. Wait at least 30 minutes for it to cool naturally. Avoid rapid cooling methods like freezers, which can cause internal condensation.
3. Intermittent Power: This often points to a physical connection issue. Vibrations can loosen sense wires. If the BMS loses the signal from even one cell, it will usually shut down as a safety precaution.

Building a Reliable Toolkit

As discussed in our guide on Thermal Throttling and Motor Protection, the synergy between the motor and the battery defines a tool's reliability. A great tool is defined not just by raw power, but by the intelligence that preserves that power over time.

When selecting your next cordless tool—whether a precision screwdriver or a heavy-duty rotary tool—consider the BMS. Inquire if it features individual cell monitoring or specific thermal management for high-torque tasks. By understanding these mechanisms, you can better maintain your gear and maximize the value of your investment.

Disclaimer: This article is for informational purposes only. Lithium-ion batteries can be hazardous if mishandled, disassembled, or modified. Always follow the manufacturer’s specific safety instructions and consult a qualified technician for repairs. If a battery is swollen, leaking, or has been punctured, stop use immediately and dispose of it at a certified e-waste facility.
