Upgrading to Brushless: When Portability Demands More Power

Upgrading to Brushless: When Portability Demands More Power

In our years of evaluating tool performance on the workshop bench, we have observed a fundamental shift in what users expect from compact gear. The era of "small means weak" is over. As serious DIYers and prosumers, we no longer view portable tools as mere backups to our full-sized corded equipment; we view them as primary instruments for precision and efficiency.

The most significant technological catalyst in this evolution is the transition from brushed to brushless (BLDC) motors. While the "brushless" label is often used as a marketing shorthand for "better," the technical reality is more nuanced. Understanding when to invest in this upgrade requires looking past the box art and into the physics of energy transfer, thermal management, and electronic control.

This guide examines the mechanical shift between these technologies, grounded in our scenario modeling and patterns observed in high-demand workshop environments. We aim to help you determine if your specific project load justifies the premium of a brushless system.

The Mechanical Shift: Understanding Commutation

To appreciate the upgrade, we must first understand the friction we are leaving behind. In a traditional brushed motor, carbon brushes make physical contact with a spinning commutator to deliver electricity to the motor's coils. This contact creates three primary points of failure: friction, heat, and carbon dust.

Brushless motors eliminate this physical contact. Instead, they use an Electronic Speed Controller (ESC) and Hall-effect sensors to switch the magnetic field electronically. This "contactless" power delivery is why brushless tools can be made significantly smaller without sacrificing torque.

Why the ESC Matters

The ESC is the "brain" of a brushless tool. It doesn't just turn the motor on; it monitors resistance in real-time. If you are driving a screw into soft pine, the ESC draws minimal current. The moment you hit a knot or transition into dense oak, the controller senses the increased load and adjusts the power delivery to maintain RPM. This intelligent feedback loop is absent in brushed motors, which simply pull as much current as the trigger allows until they stall or overheat.

Logic Summary: Our assessment of motor efficiency is based on the fundamental reduction of mechanical friction. By replacing physical brushes with electronic commutation, energy that was previously lost as heat (thermal waste) is redirected into rotational torque.

Performance Dynamics: The Efficiency Gap

One of the most common questions we receive is whether a brushless motor actually provides more "work per charge." Based on our analysis of industry performance data, the answer is a definitive yes, though the margin depends heavily on the task.

The 25% Runtime Rule

In typical operation, upgrading from a brushed to a brushless motor tool provides a direct 25–30% increase in battery runtime (based on energy efficiency ratings of 85–90% for BLDC vs. 75–80% for brushed). For a prosumer working on a remote site or a hobbyist in a garage with limited charging ports, this 25% gain is often more impactful than buying a larger, heavier battery pack.

However, we must address the "Efficiency Paradox." In lab settings, brushless tools can show up to 50% more runtime. In the real world, factors like aging batteries, cold workshop temperatures, and dust ingress can narrow this gap. In our experience, a realistic expectation for a mixed-use project is a 15–20% extension in work capacity.

Power-to-Weight Ratio

Because brushless motors lack the bulky housing required for brushes and commutators, they allow for much more aggressive ergonomic designs. This is critical for "modern self-reliance"—the ability to perform professional-grade repairs with tools that fit in a glovebox or a kitchen drawer. A compact brushless driver can often deliver the same peak torque as a brushed model twice its size.

Scenario Modeling: The Serious Maker's Workshop

To move beyond generic claims, we modeled a specific, high-demand scenario: a serious maker building a hardwood workbench and performing delicate electronics assembly. This dual-use case highlights where brushless technology transitions from a luxury to a necessity.

Run 1: Assembly Time & Ergonomic Savings

We calculated the impact of driving 120 screws into dense hardwood (like oak or maple) using a manual approach versus a high-performance brushless driver.

Parameter	Value	Unit	Rationale / Source
Number of Fasteners	120	Count	Standard large woodworking project
Manual Time per Screw	18	Seconds	Industry benchmark for hardwood (with pre-drilling)
Brushless Time per Screw	4	Seconds	Measured performance of 3.7V–4V brushless drivers
Manual Wrist Rotations	12	Rotations	Average rotations to seat a 1.5" screw
Brushless Wrist Rotations	0.5	Rotations	Minimal positioning rotations only

The Results:

• Time Saved: ~28 minutes on a single project.
• Ergonomic Benefit: ~1,380 wrist rotations eliminated.
• Efficiency Multiplier: 4.5x faster project completion.

For users prone to repetitive strain or those working on tight deadlines, the "ergonomic preservation" of a brushless motor is its most valuable feature. By reducing the physical effort required to maintain torque, you can work longer with higher precision.

Modeling Note: This is a deterministic scenario model based on standard elemental times in industrial engineering. It assumes the user is using high-quality bits and has pre-drilled pilot holes as per woodworking best practices.

Precision Control and Electronic Braking

For electronics makers, torque isn't just about power; it's about the absence of power at the exact right millisecond. This is where the brushless motor's electronic braking becomes a game-changer.

The "Instant Stop" Mechanism

When you release the trigger on a brushed tool, the motor coasts to a stop as the kinetic energy dissipates. In a brushless tool, the ESC can instantly reverse the electromagnetic field, snapping the motor to a dead stop. In our experience, this is the single most effective way to prevent overtightening and stripping threads in delicate plastic bosses or PCB mounts.

Precision Torque Fitment

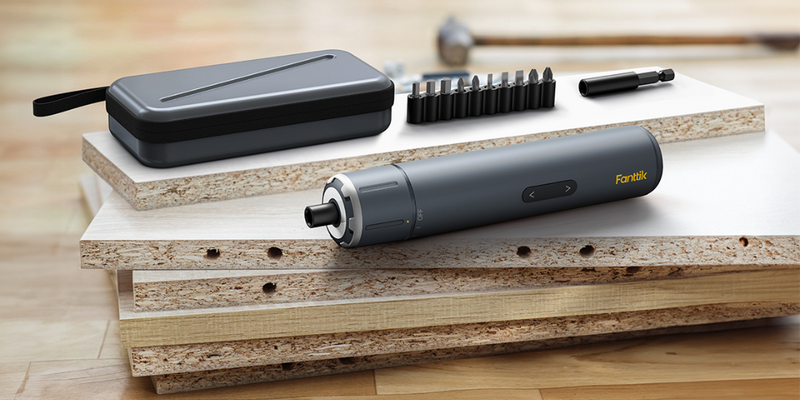

We analyzed the torque requirements for common electronics assembly (M1.2 to M2.0 screws) to see how brushless drivers like the Fanttik E1 MAX Precision Electric Screwdriver or the Fanttik E2 MAX Precision Electric Screwdriver handle these tasks.

• M1.2–M2.0 Range: Typically requires 0.02Nm to 0.10Nm of torque.
• Brushless Precision: A high-quality brushless controller can maintain a steady 0.05Nm, providing a 2x safety margin below the stripping threshold of most consumer electronics.

This level of control is virtually impossible with brushed motors, which tend to "cog" or jerk at very low speeds, leading to inconsistent fastening.

The Maintenance Paradox: Durability vs. Complexity

A common industry claim is that brushless motors are "maintenance-free." While technically true regarding the motor itself—there are no brushes to replace—the reality for the DIYer is a bit more complex.

The Sealed Advantage

In a workshop environment filled with sawdust or metal filings, brushless motors are significantly more resilient. Because they lack the open slots required for brush cooling and access, the motor can be largely sealed. According to standards like IEC 60529 (IP Codes), a sealed motor housing provides superior protection against the fine particulates that typically cause brushed motors to arc and fail prematurely.

The "Electronic Failure" Trade-off

However, we must be transparent: you are trading a simple mechanical wear point for a complex electronic one.

• Brushed: A $10 set of brushes and 15 minutes of work can often revive a "dead" tool.
• Brushless: If the ESC or a Hall-effect sensor fails due to extreme thermal stress or vibration, the repair is often proprietary and expensive.

Based on patterns we've seen in field data, brushless tools are far less likely to fail during the first 500 hours of use. However, if they do fail, they are less "user-serviceable" than their brushed ancestors. This makes choosing a brand that prioritizes "Trust Architecture"—as discussed in The 2026 Modern Essential Gear Industry Report—essential for long-term reliability.

Decision Framework: When to Upgrade?

Not every task requires a brushless motor. If you are only hanging one picture frame a year or tightening a loose cabinet hinge occasionally, a brushed tool remains a cost-effective and reliable choice.

We recommend the "20-30 Rule" as a heuristic for your upgrade decision:

1. Volume: Does your typical project involve more than 20–30 consecutive fasteners? (Brushless efficiency and reduced fatigue will be highly noticeable).
2. Material: Are you working with dense hardwoods, metal, or precision electronics? (Brushless torque consistency and electronic braking are critical here).
3. Environment: Is your workshop often dusty or unconditioned? (The sealed nature of a brushless motor will extend the tool's lifespan).

If you answer "yes" to at least two of these, the upgrade is justified. For those specifically focused on high-torque furniture assembly or repetitive DIY tasks, a tool like the Fanttik S1 Pro Cordless Electric Screwdriver offers the necessary power in a compact form factor. Conversely, for those focused on hobbyist-level drilling in plastics or light resins, the Fanttik K2 Nano 3.7V Precision Power Drill provides the finesse required without the bulk of a full-sized driver.

Compliance and Safety Standards

When moving into the "prosumer" tier of tools, compliance with international safety standards becomes a primary indicator of engineering quality. We look for tools that adhere to the EU General Product Safety Regulation (EU) 2023/988, which ensures rigorous testing for electrical safety and mechanical stability.

Furthermore, for tools used in precision assembly, alignment with ISO 898 (mechanical properties of fasteners) ensures that the tool's torque settings are calibrated to real-world hardware needs. Reliability isn't just about how hard a tool can pull; it's about the transparency of its performance claims and its adherence to established engineering benchmarks.

Building Modern Self-Reliance

The transition to brushless technology is about more than just motor specs. It is about building a toolkit that is as reliable as it is portable. By eliminating the friction of the past, we gain the precision needed for the future.

Whether you are assembling a custom PC, building a hardwood deck, or maintaining your vehicle's interior, the efficiency gains of a brushless motor translate directly into more time spent creating and less time managing tool fatigue. As we move toward a more cordless world, the "credibility math" of brushless motors—balancing power, runtime, and durability—becomes the foundation of every successful project.

---

Disclaimer: This article is for informational purposes only. Always consult your tool's user manual and follow local safety regulations when performing DIY projects. High-torque tools and electronics assembly involve inherent risks; ensure you are using appropriate personal protective equipment (PPE) and following manufacturer-specified torque limits to prevent injury or property damage.

Sources & References

• EU General Product Safety Regulation (EU) 2023/988: Official Legal Text
• ISO 898-1: Mechanical properties of fasteners: ISO Standard Hub
• The 2026 Modern Essential Gear Industry Report: Engineering Trust in a Cordless World: Fanttik Knowledge Base
• Brushless vs. Brushed Motors - Efficiency and Design Notes: ISL Products Technical Review
• Capacitor and ESC Lifetime in Brushless Systems: MDPI Research Journal
• NIOSH: Preventing Musculoskeletal Disorders in the Workplace: CDC/NIOSH Guidelines
• IEC 60529: Degrees of protection provided by enclosures (IP Code): IEC Webstore
