How to Use a High-Pressure Washer Hose Reel Without Kinking or Pressure Loss

Install a pressure washer hose reel by checking hose diameter, pressure rating, fitting type, and reel capacity before you mount anything. Secure the reel to a fixed surface, align the guide with the hose's natural path, then feed the hose out and back in slow, centered coils. Skip the checklist and you risk a leaking swivel, a crushed hose, or pressure loss you can't explain later.

The two decisions that make the biggest difference are how the swivel fitting seals and whether your hose is sized for the flow your washer actually needs. Get those right first, then the winding technique mostly takes care of itself.

How to Install and Wind a Pressure Washer Hose Reel

Before you touch a wrench, confirm the hose, reel, and washer agree on diameter, pressure, and fittings. Then mount the reel and rewind it in a way that keeps every layer flat.

Check the Complete Hose-Reel Setup

Match the hose's internal diameter and length to your washer's flow requirement and the reel's stated capacity. Confirm the working and maximum pressure ratings independently. A hose rated for your washer's PSI is not automatically the correct diameter, and a reel that fits the hose length is not automatically rated for your pressure.

• Hose diameter and length match both the washer's flow output and the reel's spool capacity.
• Working pressure and maximum pressure ratings are checked separately, not assumed from one number.
• Fitting and thread type match on both the washer side and the reel side.

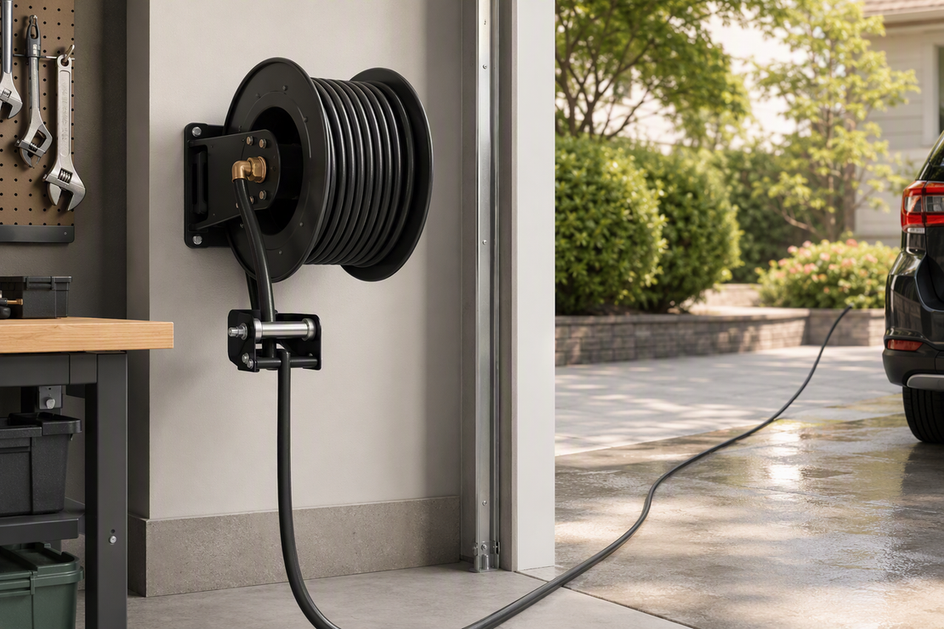

Mount and Align the Reel

Use the mounting hardware documented for your specific reel and attach it to a surface that can hold the reel's loaded weight without flexing. Position the guide so the hose approaches the spool in a straight line rather than at a sharp angle. A crooked approach angle causes the hose to stack unevenly on one side of the spool, which is one of the most common causes of layer crossing on the next rewind.

Payout and Rewind Without Crossed Layers

1. Release the reel's latch or lock exactly as the manual describes.
2. Pull the hose out slowly, keeping tension light and steady rather than yanking it.
3. When rewinding, guide the hose by hand so it lands centered on the spool instead of drifting to one edge.
4. If the hose jams, catches, or starts to kink, stop pulling or cranking immediately. Forcing a jammed reel is how hoses split or connectors crack.

How Does a Swivel Fitting Seal?

A swivel fitting seals in two places that do different jobs: a rotating seal that lets the reel turn while keeping water inside, and a threaded joint that holds the swivel to the hose or reel body. Knowing which one is leaking tells you what to inspect next.

The Rotating Seal and the Threaded Joint Do Different Jobs

The rotating portion of the swivel has to keep the water path closed while the reel spins freely under pressure. That's a different mechanical job than the threaded connection, which simply holds two parts together and depends on proper seating and thread engagement rather than rotation. Where the water first appears tells you which part failed: water at the rotating body points to the swivel's internal seal, while water at a stationary joint points to the threaded connection.

What to Check When the Swivel Leaks

• Watch closely to see whether water emerges from the rotating housing itself or from a stationary threaded joint nearby.
• Inspect the threaded connection for proper seating, visible damage, or cross-threading before assuming the internal seal has failed.
• Don't add sealant, tape, or lubricant based on a generic fitting assumption. The exact seal type, thread standard, and any approved sealing method are specific to your reel model, so check that model's documentation before altering the connection.

3/8-Inch vs 1/4-Inch: Which Hose Fits Your Washer?

Choose 3/8-inch hose when your washer delivers higher flow or requires long runs with less resistance, and pick 1/4-inch when your system specifies it for lighter handling. Neither diameter is a universal upgrade, so match the rest of your setup before buying.

The Practical Choice Between 3/8-Inch and 1/4-Inch

A larger internal diameter generally reduces flow resistance at the same flow rate and hose length, which is why higher-flow or longer-run systems generally benefit from larger hose ID. That doesn't make 3/8-inch hose better for every setup. It's heavier, takes up more space on the reel, and needs fittings and a reel spool rated to handle it.

The table shows the general direction, not a guarantee. If your washer's documented flow requirement and your reel's fitting size don't both support 3/8-inch, stick with 1/4-inch even on a long run.

Keep These Metrics Separate

Internal diameter affects flow resistance, but it says nothing about maximum pressure rating on its own. A hose can have the right diameter and still be undersized for your washer's pressure rating, or correctly rated for pressure and still restrict flow if it's too long or the fittings are narrower than the hose itself. Check diameter, pressure rating, length, and fitting size as four separate specs, not one combined number.

Why Is the Pressure Dropping? Follow This Check Order

Check the physical hose path before you touch the washer's settings. Most pressure loss traces back to a restriction or leak you can find by hand, not a machine problem.

Check the Hose Path First

1. Straighten any tight bends and run your hand along the hose to feel for flattened or pinched sections.
2. Look at the reel itself for crossed layers or hose stacked unevenly on one side of the spool, which creates drag even without a visible kink.
3. Stop and inspect further if the hose feels jammed against the reel frame or won't pay out smoothly. Forcing it can damage the hose or the spool mechanism.

Then Check Connections and Hose Choice

• Inspect the nozzle end, the quick-connect fittings, and the reel inlet for blockage, cracking, or a mismatched connector.
• Check the swivel for the earliest sign of leakage, since a slow leak at the rotating seal or threaded joint bleeds off pressure gradually.
• Compare your hose's actual diameter and length against your washer's documented flow requirement. If everything upstream is clear and the hose is still undersized or too long for the run, that's a persistent restriction rather than a one-time fault.

If the physical checks come back clean and pressure still drops or surges intermittently, the issue may sit further upstream in the water supply or pump rather than the reel. Our pressure washer flow issues troubleshooting guide walks through that broader diagnostic path.

When to Stop and Release Pressure

Shut the pressure washer down and fully release system pressure before you disconnect a fitting, straighten a jammed hose, or inspect anything that looks damaged. Handling a pressurized hose by hand is the point where a manageable kink turns into an injury.

A documented OSHA accident record describes a worker's hand being injured while attempting to unkink a pressurized high-pressure washer hose, which is exactly the situation this rule prevents. Follow your washer's documented shutdown and pressure-release sequence rather than a generic technique, and don't continue operating a setup that's actively leaking or clearly incompatible with your equipment. If you're unsure whether your reel's manual allows any kind of controlled winding under pressure, default to full depressurization before you handle the hose.

When you notice a sudden drop in spray force or feel resistance while reeling in, stop immediately, squeeze the spray gun trigger to vent the system, and clear the physical hose path before restarting your work.

FAQs

Why does my pressure washer hose reel leak at the swivel?

A leak that appears only while the reel is rotating usually points to the swivel's internal rotating seal, while a leak that shows up at a stationary joint points to the threaded connection instead. Watch where the water first appears before deciding what to inspect. Check your exact reel's manual before adding sealant, lubricant, or replacement parts, since seal construction varies by model.

Is a 3/8-inch pressure washer hose always better than a 1/4-inch hose?

No. A 3/8-inch hose generally makes sense for higher-flow washers or longer hose runs when your reel and fittings are built to handle the larger diameter. A 1/4-inch hose can be the better fit for a lower-flow consumer washer where easier handling and a lighter reel matter more than maximum flow. Check your washer's flow spec and your reel's fitting size before switching either direction.

Can I rewind a pressure washer hose while it is still pressurized?

That depends entirely on what your specific reel's manual permits. Some reels are designed for controlled winding at reduced or partial pressure, but many are not. If your documentation doesn't explicitly describe a pressurized or partial-pressure rewind procedure, shut the washer down and fully release pressure before retracting or correcting the hose.
