How to Drill Repeated Holes to a Consistent Depth

To drill repeated holes to a consistent depth with a handheld drill, don't judge depth by eye. Put a physical depth reference on the bit, such as a secured stop collar or a wood block stop. Then drill one hole, measure it, and keep that same setup for the rest of the holes.

The measuring step matters because it catches a bad setting before it spreads to every hole. If the first hole reads off target, go back and redo the stop setup before drilling the rest. The sections below cover how to set the reference, how a visual mark differs from a real stop, and how to read the depth of that first hole.

Set a Physical Depth Reference on the Drill Bit

A depth reference is anything on the bit that marks or limits how far it goes into the material. Two setups show clearly how to tie that reference to your target depth: a stop collar set with a shop gauge, and a homemade block stop.

The Woodpeckers 6-in-1 gauge instructions explain how to set the drill stop with the gauge's depth scale. This sequence is written for that specific gauge:

1. Set your target depth on the gauge's "Height - Drill Bit Depth" scale.
2. Place the drill bit in the gauge's V-groove.
3. Slide the stop collar on the bit until it sits against the gauge's slider.
4. Tighten the collar so it holds that position.

The result is a collar fixed at a measured distance on the bit, rather than a spot you picked by eye. If you use a different gauge or collar, follow that tool's own setup. The scale labels and contact points on this Woodpeckers gauge may not match other tools.

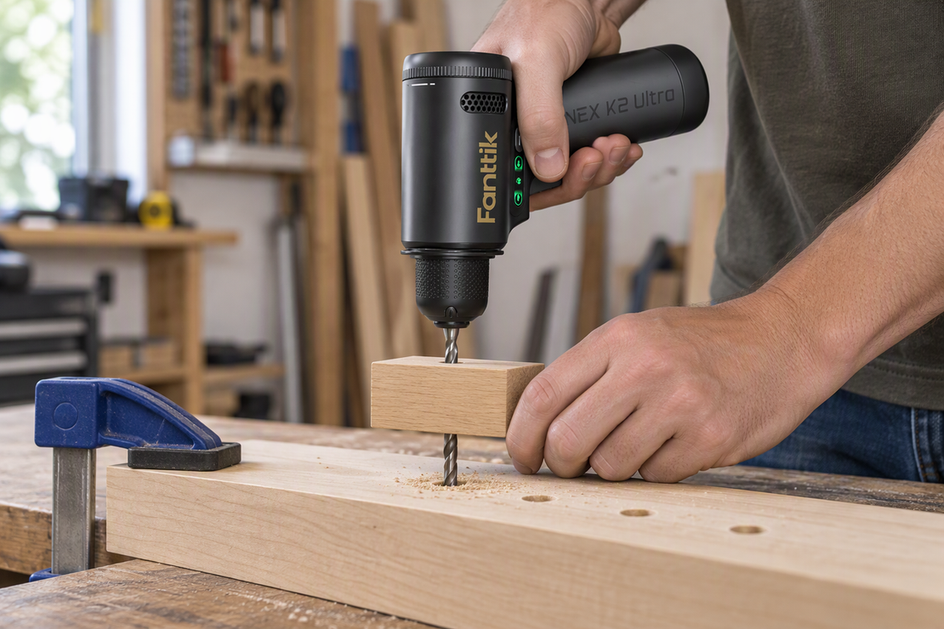

No gauge? A block of wood can do the same job in a woodworking project. Today's Homeowner describes how to set a woodworking block stop by matching the bit's projection to the depth you want. Drill a hole lengthwise through a piece of 1" x 1" stock and slide the block over the bit. Then adjust the bit in the chuck so it sticks out of the end of the block by your desired hole depth.

To drill, hold the block firmly against the wood surface and push the drill through it until the bit bottoms out. The block hitting the surface is your stop. It works because the block physically limits travel. Keep the bit seated in the chuck the same way for every hole, since the setting depends on how far the bit sticks out of the block.

Whichever reference you use, set it once and leave it alone while you work through the batch. Changing bits, re-chucking, or bumping the collar resets the job, so measure the first hole again after any of those changes.

Choose a Visual Mark or a Mechanical Stop

A visual mark shows you where to stop. A mechanical stop actually stops the bit. For repeated holes in wood, that difference decides how consistent your holes stay from the first one to the last.

In woodworking, a tape mark is visual, while a secured stop collar physically limits travel. WOOD Magazine notes that if you drill a little too far, a tape sleeve tends to slide up the bit. That makes every hole after it too deep, and you may not notice until you measure. Tape is fine when you only need a rough cue. It doesn't hold a depth by itself.

A stop collar gives you a repeatable, predetermined depth when it's installed correctly. Slide the collar onto the bit and tighten the set screw against the outside surfaces of the flutes, not inside the flutes or on the cutting edges. The flutes are the spiral grooves on a twist bit. A screw seated in a groove or on a cutting edge won't grip properly and can damage the bit.

One trade-off: steel stop collars can mar a wood surface when they make contact. If the surface around each hole will show in the finished piece, plan for that before you start. The block stop from the previous section spreads the contact over a flat face instead of a metal ring.

For a batch of identical holes, pick the method that physically stops the bit. Save tape for a few quick holes where small depth differences don't matter.

Measure the First Hole Before Repeating It

Drill one hole, measure its real depth, and compare it with your target before you drill any more. A stop that was set slightly off will repeat the same error on every hole, so this check protects your consistent hole depth.

The same Woodpeckers instructions show how to measure a drilled hole with the gauge's depth rod. For that gauge, the steps are:

1. Rest the gauge flat on the workpiece over the hole.
2. Lower the depth rod into the hole until it touches the bottom.
3. Lock the rod in place.
4. Read the depth on the scale next to the rod.

Before measuring, clear chips and dust out of the hole. Debris at the bottom stops the rod early and makes the hole read shallower than it really is.

Next, compare the reading with your target. If they match, drill the remaining holes with the same stop and the same bit. Don't touch the collar or block between holes. If the reading is off, don't continue the batch. Go back to the setup step and reset the reference, then drill and measure another hole before you commit to the rest.

On a long run of holes, measuring again partway through is a quick way to catch a stop that has crept. That matters most with tape, which WOOD Magazine notes can slide up the bit after over-drilling. Measuring this way turns consistent hole depth from a guess into a number you have actually checked.

FAQs

How do I make a tape mark easier to see while drilling?

Wrap a piece of masking tape around the bit and stick the two ends together to form a small flag, as Today's Homeowner describes. Stop drilling when the flag brushes the shavings away from the surface. The tape tends to wear out after a few holes, so it suits short jobs better than long batches.

Can clear plastic tubing work as a drill depth gauge?

Yes, for woodworking with a portable drill. WOOD Magazine describes a clear plastic tubing gauge. Chuck the bit, slip a short section of tubing over it, push the tubing firmly against the chuck jaws, and cut it to match the hole depth. Because its length is set against the chuck, re-chucking the bit means you'll need to check the setting again.

Do I need a depth stop for holes that go all the way through?

Not to set depth. A through-hole ends at the exit face of the material, so there's no target depth inside the piece to repeat. A depth stop matters for blind holes, which have to stop inside the material without breaking through. Those are the holes where you want to drill holes to the same depth every time.
