How to Keep Wires Still While Solder Cools

Clamp the wire in a holder such as helping hands before you heat the joint. Then leave it alone until the solder has fully set. A fixed soldering wire support does the steadying, so the joint stays put and your fingers stay away from the hot iron.

Make holding still the plan from the start by securing the wires before heating. The rest of this guide covers where to clip the wire, how to check the setup while everything is still cold, and when it's safe to let go.

Use a Holder to Keep the Wires Still

Use a holder that grips the cable for you, and keep your hands for the iron and the solder. Your fingers can't stay perfectly still for the whole heat-and-cool cycle, and they shouldn't be that close to the tip anyway.

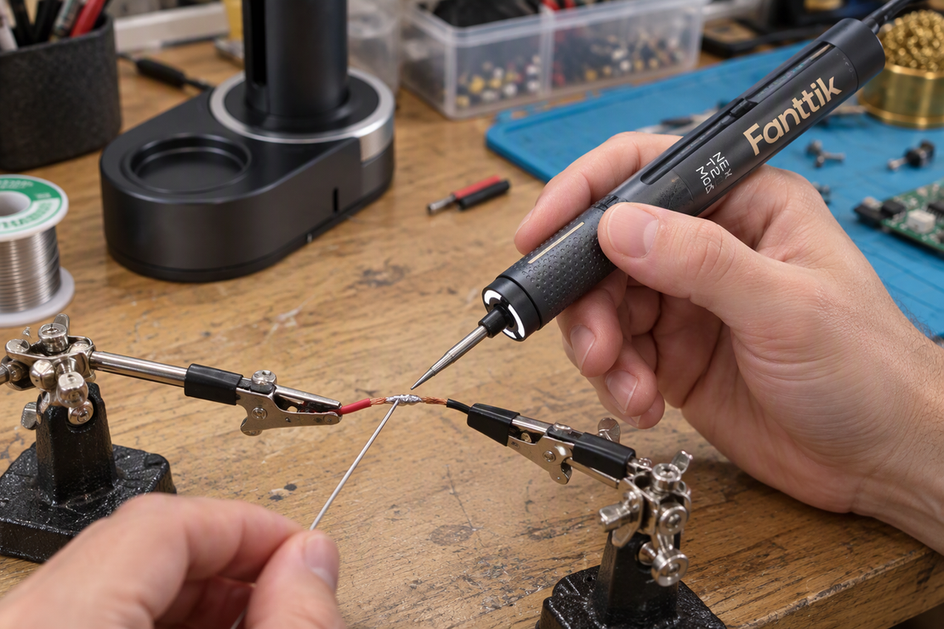

A third-hand tool, usually sold as "helping hands," is the familiar choice for small-electronics wire work. It's a weighted base with adjustable arms and small clips. In an Adafruit electronics project guide, helping hands hold the cable in place while the exposed wire strands are tinned. Tinning means coating the bare strands with a thin layer of solder. That example shows the basic idea: the tool holds the cable, and both of your hands stay free to work.

To carry that idea through to the cooling stage, grip the intact, insulated part of the cable just behind the stripped section. Don't clip the bare wire itself. A clip on the bare wire takes up the spot where the iron and solder need to go. Clipping the insulation keeps the whole exposed section open. This placement is a practical setup based on how the tool works, not an exact position from the Adafruit guide.

If you're joining two wires, give each one its own clip. Angle the arms so the bare ends meet on their own without you pushing them together. Then leave both clips closed until the solder has set. A holder only helps if it stays on through cooling, not just while you heat the joint.

Set Up the Support Before Heating

Arrange the support completely before the iron touches anything, so every adjustment happens while the wire is cold and safe to handle. The fixture should be what keeps the wire steady. Your fingers should never be doing that job next to the hot tip.

Run through this setup in order:

1. Clamp the insulation. Clip each cable on its insulated jacket, just behind the stripped portion, and leave the bare strands untouched.
2. Position the joint in open space. Swing the arms so the bare ends sit where they need to meet, with nothing blocking the area the iron and solder will reach.
3. Do the let-go test. Take your hands away completely. The cable should stay exactly where you put it. If it sags, springs back, or rotates in the clip, tighten the clip or move it before you heat anything.
4. Check your hand positions. Pretend to hold the iron in one hand and the solder in the other. If you can reach the joint without touching the wire, you're ready. If you find yourself wanting a fingertip to steady the cable, stop and re-clamp instead.

Getting a pass on the let-go test is the whole point of this step. It's your go/no-go check. A wire that stays put when you release it cold is much more likely to stay put while the solder cools. A wire that drifts now will drift later, when you can't safely grab it.

If you're working with short wires or a cramped spot, take a minute to adjust the arms before heating rather than trying to correct things mid-joint. Once the iron is on the joint, your attention belongs on the heat and the solder, not on the wire's position.

When to Release and Check the Joint

Keep the support in place until the solder has stopped flowing and turned solid. Then release the clips and inspect the joint. Go by what the solder is doing, not by a stopwatch, because no single cooling time fits every wire joint.

For context, a PCB hand-soldering guide from a university electronics course tells readers not to move the joint for a few seconds while the solder cools. It warns that moving it produces what's called a "cold joint." That guidance is written for circuit board soldering, so treat its "few seconds" as PCB advice, not as a fixed rule for wire joints. Its main point still applies here: movement during cooling is what you're trying to prevent.

The same guide describes properly applied solder as melting and flowing smoothly around the surfaces to form a smooth, shiny surface. It also says a rounded, lumpy, dull, irregular, or granular look points to improper solder application. Those descriptions come from a PCB context. They're useful visual cues, but they aren't a complete pass/fail test for a wire joint, and a shiny surface alone doesn't tell you when to release the holder.

After you open the clips, do a quick visual check:

• The wires should sit in the same position they were clamped in.
• There should be no obvious gap or separation where the wires meet.
• The solder surface should look smooth rather than lumpy or grainy.

If any of those look off, don't treat the joint as finished. Look at it more closely before you rely on the connection, and for the next joint, go back to the let-go test to find where the movement came from.

FAQs

What is a cold joint?

"Cold joint" is the name the PCB hand-soldering guide above gives to the result of moving a joint before the solder has cooled. In that guide's terms, well-applied solder flows smoothly and looks shiny. A dull, lumpy, or grainy look points to a problem with how the solder went on. Preventing movement during cooling is the practical way to avoid the cold-joint problem that guide describes.

Should the wire be held during tinning too?

Yes, the same holder setup works for both steps. In the Adafruit project mentioned earlier, the cable sits in helping hands while the bare strands are tinned. Because you're already clipping the insulation and leaving the strands exposed, you can tin the wire and then make the joint without re-clamping between steps.

Does this advice apply to stained-glass, plumbing, or jewelry soldering?

No. This guide covers wire joints in small-electronics work only. Stained-glass, plumbing, and jewelry soldering use different materials, tools, and techniques, so don't carry these holding and cooling steps over to those jobs. If you're still choosing your gear, our guide to choosing an electronics soldering station compares portable and benchtop stations and explains why a stained-glass iron belongs to a different tool category.

Is a soldering wire support worth it for just a few joints?

For even a single joint, a fixed support solves two problems at once. It keeps the wire from moving while the solder sets, and it keeps your fingers out of the hot work area. Helping hands are a simple, familiar option for this, and the setup steps above work whether you're making one splice or a dozen.
