What Solder Wire Diameter Should You Use for a Small Electronics Joint?

What Solder Wire Diameter Should You Use for a Small Electronics Joint?
A practical guide to choosing fine solder wire for electronics, with guide-based sizes for SMT pads and through-hole leads and the control trade-offs of each.

Share

For a small electronics joint, start with solder wire that is about 0.5 to 0.6 mm (0.020 to 0.025 in) thick. Move up to about 0.8 mm (0.031 in) for general through-hole work. These sizes come from supplier and specialist guides, not a formal standard, so use them as a starting point and match the wire to the pad or lead in front of you.

Smaller contacts usually call for thinner wire because it makes the amount of solder easier to control. Larger leads, connectors, and terminals call for thicker wire, so you don't end up feeding solder in pass after pass.

What Diameter Can You Start With?

For fine or small electronics work, start at about 0.5 to 0.6 mm. Solder supplier KEM-TRON's solder wire diameter guide ties each common size to a type of job. The table below lists those sizes with their inch labels, so you can match them to spool packaging sold in either unit.

Diameter Listed use in the KEM-TRON guide
0.5 mm (0.020 in) Fine-pitch SMT rework, small connectors, precision hand soldering
0.6 mm (0.025 in) General SMT rework, fine hand soldering
0.8 mm (0.031 in) General electronics hand soldering; through-hole and mixed assembly
1.0 mm (0.040 in) Larger through-hole components, connectors, terminals

The two smallest rows cover the "small electronics joint" this article is about. Surface-mount (SMT) pads, tiny connector pins, and other precision spots sit at 0.5 mm. Less demanding fine work sits at 0.6 mm. The guide calls 0.8 mm its most versatile size for general electronics hand soldering. That makes 0.8 mm a sensible second spool if your project also has ordinary through-hole leads.

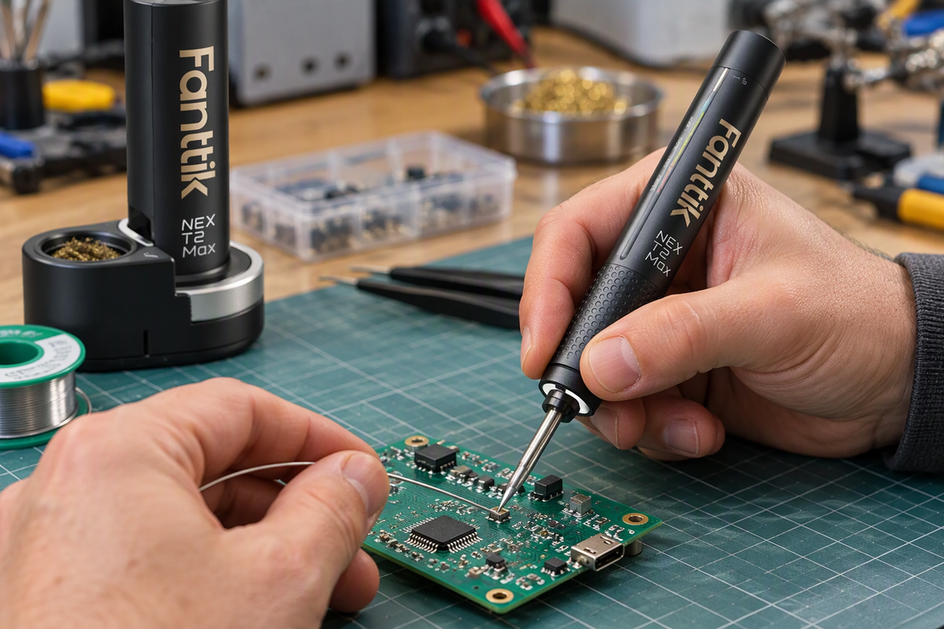

A hobbyist feeds fine solder wire to a tiny circuit-board pad with a Fanttik T2 Max soldering iron.

A broader reference points the same way. Techspray's guide to electronic soldering describes electronics solder wire as running from about 1.5 mm down to 0.5 mm or less. It also advises matching the solder wire diameter to the size of the connector or contact. So the finer end of that range fits the smallest contacts.

Read all of these numbers as practical guide-level advice. They are not a manufacturer specification for your part or a universal requirement. They tell you where to start. The joint itself tells you whether to stay there or change sizes.

How Joint Size Changes Feed and Control

Picking a solder wire diameter is about matching the wire to the contact. Each guide describes what goes wrong when the two don't match. Neither gives an exact cutoff between "small" and "large," so use the application examples above as reference points rather than hard lines.

When the wire is too big for the joint. KEM-TRON says wire that is too large for fine-pitch work makes it harder to control how much solder you apply. On a tiny pad, the tip of thick wire carries a lot of solder into a small space with every bit you feed. The Techspray guide adds that wire which is too large can be harder to maneuver around small contacts. On a crowded board, that awkwardness matters most when nearby pins or pads sit close together.

When the wire is too small for the joint. The trade-off flips on bigger contacts. Techspray notes that very small wire may require feeding more wire to get enough solder in. KEM-TRON says undersized wire on large joints can take multiple passes and slow the work down. A 0.5 mm wire that feels precise on an SMT pad can feel slow on a connector terminal.

An illustrative example. Imagine a hobbyist repairing a small board. The job includes reflowing a few fine SMT pads and resoldering a through-hole header. Going by the guide examples, 0.5 or 0.6 mm wire fits the pads. A 0.8 mm wire fits the header leads, and 1.0 mm is listed for larger connectors and terminals. Keeping two diameters on the bench lets the hobbyist switch to whichever wire fits the contact in front of them instead of forcing one size to cover both. This is an example of how to apply the guides, not a tested result.

A hobbyist solders a through-hole header lead on a circuit board with a Fanttik T2 Max soldering iron.

Diameter is only one part of a good joint. It affects how easily you can meter and place solder, but heat, flux, and technique still decide whether the solder flows and bonds. If you're still learning how to feed solder, our beginner soldering iron guide walks through tinning the tip and forming clean, conical joints. If a finished connection looks dull or grainy, see how to spot and reflow cold joints before you blame the wire size.

Tool shape affects control on small work too. Our comparison of pistol grip and pencil irons explains which style suits delicate circuit board repairs and which suits heavier wiring.

FAQs

What do labels like 0.020" and 0.5 mm mean on solder wire?

They give the wire's diameter in inches and millimeters. The two labels describe the same nominal size. The KEM-TRON wire guide pairs them as 0.020 in with 0.5 mm, 0.025 in with 0.6 mm, 0.031 in with 0.8 mm, and 0.040 in with 1.0 mm. If a spool is labeled only in inches, you can use those pairs to compare it with metric guidance.

If I can only buy one spool, which diameter covers the most electronics work?

KEM-TRON describes 0.8 mm (0.031 in) as its most versatile diameter for general electronics hand soldering and a good default for through-hole and mixed assembly. If most of your work is fine-pitch SMT or very small pads, that same guide points you toward 0.5 or 0.6 mm instead.

Is solder wire thinner than 0.5 mm used for electronics?

Yes. Techspray describes electronics wire as reaching 0.5 mm "or less" at the fine end of its range. The trade-off is feed: very small wire may require feeding more wire to deliver the same amount of solder, so it works best when the contact is small enough to need only a little.

Are these diameter recommendations an industry standard?

No. The sizes in this article come from practical guides published by a solder supplier and a specialist electronics company. They work well as starting points for matching wire to contact size. They don't replace a specification you've been given for a particular assembly.
