How to Use a Heat Gun for Heat Shrink Tubing: Safe Wiring Insulation Techniques

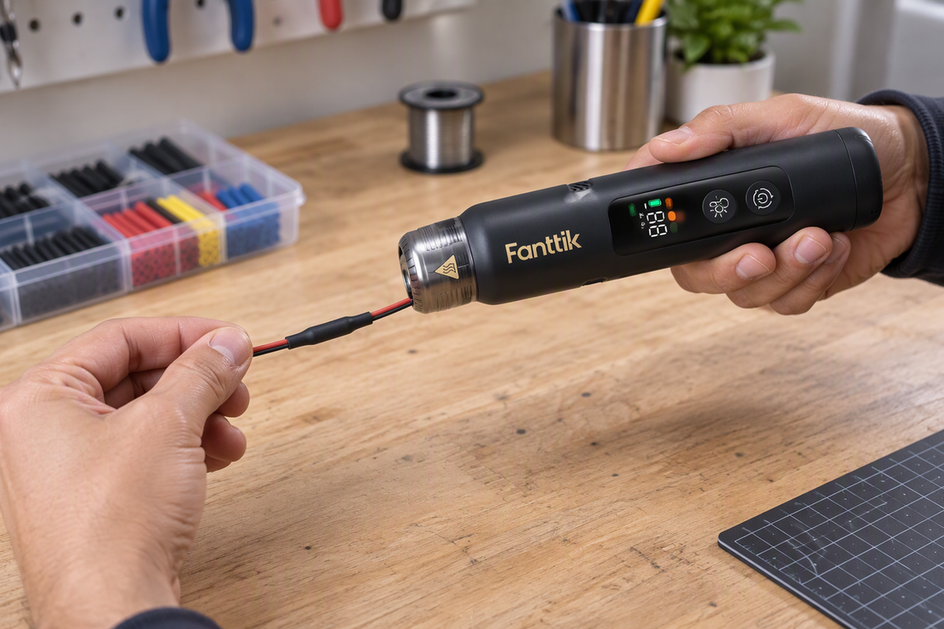

To shrink heat shrink tubing safely, heat it only on wire that is disconnected and confirmed de-energized. Use the instructions for your exact tubing and your exact heat gun. For the single-wall tubing families in one maker's guide, that means starting at one end, working evenly to the other end, and rotating the gun or the wire so the nozzle never touches the tube.

Stop when the tubing reaches the completion sign its maker describes, or sooner if anything looks damaged. Temperatures printed on tubing datasheets, such as 212°F, describe the tubing itself. They are not heat-gun settings.

How to Use a Heat Gun on Heat-Shrink Tubing

Prepare the wire and identify both products first, then apply heat the way the documents describe. This covers tubing over a bare wire or a connection you have already finished, not making the splice itself.

Prepare the Wire and Identify Both Products

• Disconnect and verify the wire is de-energized. If you cannot disconnect the wiring and confirm it is dead, do not heat it.
• Hand off safety-critical wiring. If the circuit is outside your experience or a failure would create a hazard, have a qualified professional do the work.
• Name the tubing. Write down the brand, product family, and construction, such as single-wall or adhesive-lined thick-wall. That tells you which instructions apply.
• Name the heat gun. Find the manual for your specific model. It is the source for settings, nozzles, and handling limits.
• Confirm the connection is finished. Tubing only covers a joint. If solder beaded up instead of flowing, fix that first. Our guide to why solder won't wet the wire walks through the causes.
• Look at what sits nearby. Heat-sensitive parts or materials close to the tubing may mean the planned heating method is not a good fit. The same concern about nearby flammables comes up in our guide to heat gun adhesive removal.

Use Only the Documented Heat-Gun Setup

Your heat gun's manual sets the temperature, airflow, nozzle, and working distance. Do not dial in a number from a tubing datasheet, because that number describes when the tubing responds, not what the gun should be set to. For application technique, TE Connectivity gives a clear method for the general-purpose single-wall families its guide covers. Start at one end, heat progressively and evenly toward the other end, and rotate either the heat gun or the assembly for uniform heat. The same guide warns that letting the end of the gun touch the tubing can cause splitting. It does not name a heat-gun model, setting, attachment, or distance, so those still come from your tool's manual. Other tubing has its own directions. Panduit's HST thick-wall instructions, for example, say to keep the heat source moving around the diameter of the tube.

What the Tubing Datasheet Can—and Can't—Tell You

A tubing datasheet tells you how that specific product behaves when heated. It does not give you a heat-gun setup, and its numbers do not carry over to other tubing.

3M FP-301: A Product-Specific Minimum

3M describes FP-301 as shrink-fit electrical insulation used over cable splices and terminations. The datasheet lists FP-301's 2:1 shrink ratio and 212°F minimum shrink temperature. A 2:1 ratio means the tube can shrink to about half its supplied diameter. The 212°F figure is the lowest temperature at which this tubing shrinks. It is not a gun setting, and reaching it does not mean the job is done.

3M EPS-200: Adhesive Behavior During Heating and Cooling

EPS-200 is adhesive-lined, so its datasheet describes two stages. According to EPS-200's heating response and adhesive solidification on cooling, the tubing shrinks to a tight fit when heated above 250°F, forcing the melted lining to flow over the substrate. The adhesive then solidifies as it cools. Keep that description tied to EPS-200. Other adhesive-lined tubing may list different temperatures and behavior.

When to Stop Heating

Stop at the completion sign your tubing's maker describes, or stop earlier if you see damage. A minimum shrink temperature is never a completion point by itself.

• Any apparent damage: Stop if the tubing, the wire insulation, or nearby material shows damage. For TE Connectivity's covered single-wall families, the guide says to stop immediately if the tubing blisters, chars, or shows other degradation.
• TE single-wall completion: For those same families, a completed assembly is free of cold spots and wrinkles and conforms to the shape of the substrate.
• Panduit HST thick-wall completion: The Panduit HST installation instructions say the shrink is complete when adhesive oozes from between the tube and the cable or lug.
• Any other tubing: Use the endpoint printed in that product's own instructions. Do not borrow a sign from a different tubing family.

What to Inspect After the Tubing Cools

Let the tubing cool as its instructions direct, then recheck the work before the wire goes back into service. There is no general cooling time. EPS-200's adhesive firms up on cooling, so handling it early can disturb the lining.

• Compare the cooled tubing with its maker's criteria. Use the same product documents you followed while heating.
• Check for damage you may have missed. Look over the tubing, the exposed wire insulation, and anything that sat near the heat.
• Remember what you cannot see. A clean-looking tube does not prove the connection underneath is sound.
• Keep doubtful work out of service. If you find damage or cannot confidently judge the connection, do not reconnect it. Have a qualified technician inspect or repair it.

FAQs

Is 212°F the right heat gun setting for heat shrink tubing?

No. That value is FP-301's stated minimum shrink temperature, and it applies only to that 3M product. It tells you when the tubing starts to respond. The heat-gun setting comes from your tool's manual.

Does every adhesive-lined tube behave like EPS-200?

Not necessarily. EPS-200's adhesive-lined heating and cooling behavior, with shrinking above 250°F and adhesive setting as it cools, is specific to that product. Other adhesive-lined tubing, such as Panduit HST, describes its own temperature and completion sign.

Is there a universal distance or temperature for a heat gun?

No universal distance, setting, or heating time applies across all tubing and heat guns. Your heat gun's manual and your tubing's instructions together define the setup. If either document is missing, find it before you start.

Can the heat gun nozzle touch the tubing?

TE Connectivity's single-wall guide says to keep the end of the heat gun off the tubing's exterior because contact can cause splitting. Hold the nozzle clear and move the gun or rotate the wire instead.
