The Physics of Equilibrium: Why Axle Weight Logic Dictates Off-Road Survival

Quick Take: The Golden Rules of Loading To maintain vehicle stability and safety in demanding terrain, prioritize three core principles:

Keep it Low and Central: Place the heaviest gear (water, fuel, tools) on the floor, ideally between the front and rear axles.
Respect the GAWR: Never exceed the Gross Axle Weight Rating found on your door jamb.
Minimize Roof Mass: High-mounted weight significantly increases rollover risk on side slopes due to a leverage effect.

In the high-stakes environment of remote expedition travel, vehicle preparation often focuses on increasing power or adding protective armor. However, a critical factor for both safety and performance is frequently the most overlooked: the precise distribution of mass across the chassis. Off-road driving is essentially an exercise in managing shifting weight. Every incline, descent, and side slope alters the downward force exerted on each tire, directly impacting traction, braking distance, and roll stability.

Proper axle weight logic involves more than staying under a legal limit. It is a methodical approach to positioning gear to ensure the vehicle’s suspension, tires, and drivetrain operate within their designed performance envelopes. When a vehicle is improperly balanced, even advanced locking differentials or high-traction tires often cannot compensate for a lack of vertical load on the contact patch. This guide examines the technical principles of longitudinal and vertical weight distribution, providing a framework for balancing heavy gear to maintain control.

1. Understanding the Foundation: GAWR and the Center of Gravity

Before gear is ever loaded, an operator must understand the static limits of the vehicle. Every off-road chassis is governed by the Gross Axle Weight Rating (GAWR). According to Vehicle weight - Wikipedia, GAWR is defined as the maximum distributed weight that may be supported by an axle. Exceeding this rating is not merely a compliance issue; it represents the point where mechanical components—such as wheel bearings, axle housings, and suspension mounting points—are subjected to stress levels that can lead to mechanical failure in the field.

Equally important is the Center of Gravity (CoG). In mobile ground vehicle design, the vertical position of the CoG is a primary determinant of handling stability. Research indicates that for many ground vehicles, a typical CoG vertical position is approximately 0.4 meters (roughly 15.7 inches) above the ground, though this rises significantly with modifications like suspension lifts and rooftop accessories Weight Distribution in Mobile Ground Vehicles | Matthew Shields.

Heuristic Note: Our analysis of vehicle stability assumes a baseline CoG height of ~0.4m–0.6m for modified 4x4s. We model the "Stability Penalty" based on the principle that raising the CoG increases the leverage force (moment) acting on the vehicle during cornering or side-slope traverses. This is an estimation model based on standard vehicle dynamics; actual limits vary by vehicle track width and suspension geometry.

The Dynamics of Understeer and Oversteer

Weight distribution has a significant impact on a vehicle’s understeer gradient during steady-state cornering Understeer and oversteer - Wikipedia.

Front-Heavy Bias: Can lead to excessive understeer, where the vehicle resists turning and "plows" forward.
Rear-Heavy Bias: Often results in oversteer, where the rear of the vehicle attempts to overtake the front, a condition that can be difficult to correct on loose gravel or mud.

2. Longitudinal Balance: The 20% Rule for Cargo Positioning

A common mistake observed in the overlanding community—frequently noted in field recovery scenarios—is the "tail-heavy" configuration. Overloading the rear of the vehicle, often due to heavy rear bumpers, spare tire swings, and drawer systems, creates a lever effect that can lift weight off the front axle.

The Loss of Steering Authority

When the front axle is lightened, the tires lose the vertical force required to maintain friction against the terrain. This is particularly hazardous during technical climbs. If the front tires cannot "bite" into the surface, steering input can become unresponsive, leading to a loss of the intended line.

The Downhill Slide Risk

Conversely, during a descent on loose surfaces, a rear-heavy vehicle may be prone to a "pendulum effect." As braking transfers weight forward, the lightened rear end loses traction. On a loose descent, this can manifest as a rear-end slide, where the back of the vehicle swings out to the side.

Practical Rule of Thumb: The 20% Forward Positioning Rule Based on general overlanding experience, a useful heuristic is to position the heaviest 20% of your cargo—typically water, fuel, and heavy recovery tools—forward of the rear axle and as low as possible within the wheelbase. This helps keep the mass centered, ensuring that both axles share the load more equitably during dynamic movement.

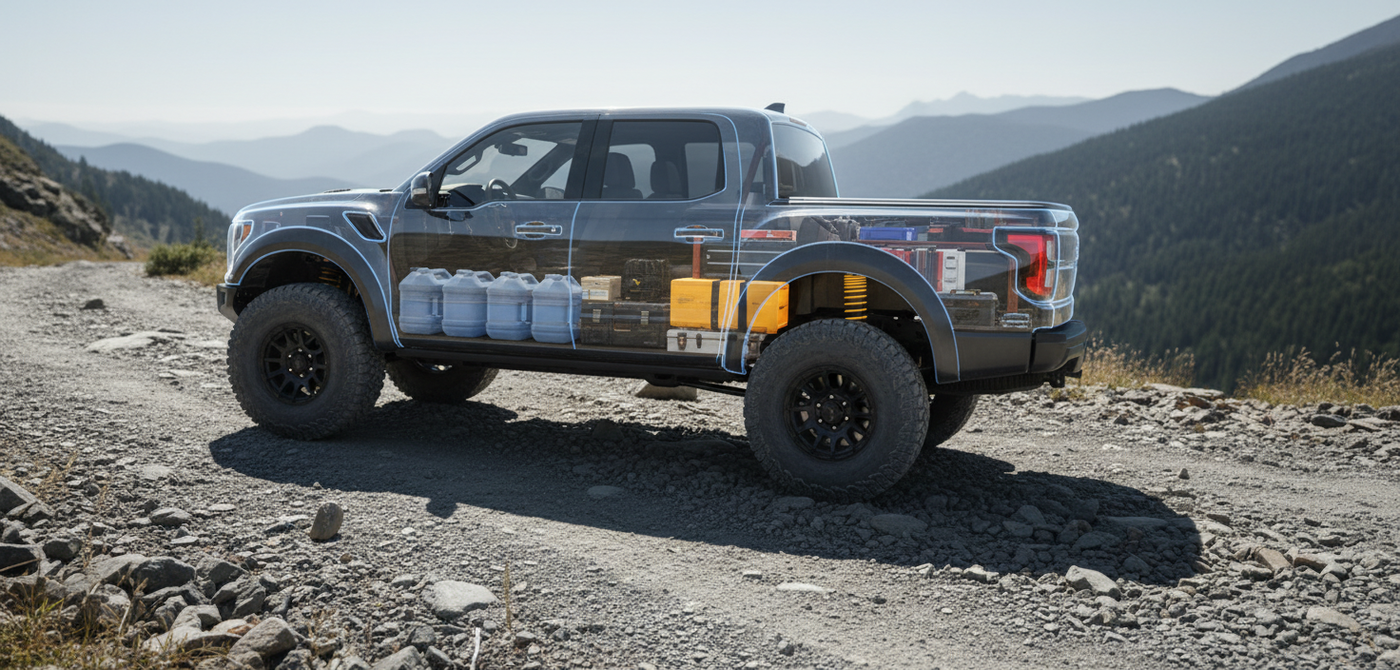

A technical diagram illustrating the 20% rule, showing heavy cargo positioned low and between the axles of an off-road SUV on a trail.

3. The Vertical Penalty: Roof Loads and Side-Slope Stability

While longitudinal balance affects steering and braking, vertical balance is a major factor in whether a vehicle stays upright. The "Roof Weight Multiplier" is a critical concept for anyone utilizing rooftop tents or heavy roof racks.

Based on vehicle dynamics principles, adding weight to a roof rack can have a disproportionate effect on stability compared to adding it at the floor level. For many SUVs, a 100 lb load on the roof can exert a similar "tipping moment" on a side slope as 300 lbs stored at the floor, due to the increased "moment arm" (the distance between the weight and the vehicle's roll center). According to Theory Test - Roof Rack, a heavy load on a roof rack will significantly reduce the vehicle's stability and increase the risk of overturning, especially in windy conditions or during sharp turns.

Roll, Pitch, and Yaw in Off-Roading

The three principal axes of movement are all impacted by high-mounted weight Aircraft principal axes - Wikipedia.

Roll: A high CoG makes the vehicle feel "tippy" on off-camber trails.
Pitch: High weight can increase "nose-dive" during hard braking and "squat" during acceleration.
Yaw: Weight at the extremities (far front or far back) increases the polar moment of inertia, which can make the vehicle slower to respond to steering changes.

Parameter	Estimated Range	Unit	Rationale
Baseline CoG Height	~0.4 - 0.6	Meters	Typical 4x4 with 2-inch lift
Roof Load Limit (Dynamic)	100 - 165	Lbs	Common manufacturer threshold for safe handling
Side Slope Limit	20 - 30	Degrees	General heuristic; varies by track width and CoG
Weight Forward Ratio	50/50 - 45/55	%	Target for maintaining steering authority
Tire Pressure Drop	15 - 25	PSI	Adjustment for weight distribution on soft sand

4. Gear Consolidation: Reducing Weight Through Multi-Functionality

A key strategy for maintaining axle logic is the reduction of "dead weight." Traditional expedition builds often include heavy, permanently mounted systems such as onboard air compressors or dual-battery setups with heavy lead-acid batteries. While reliable, these systems add significant static weight to specific corners of the vehicle.

Modern off-roaders often turn to portable, high-performance maintenance tools to eliminate these heavy fixed systems.

Portable Air Solutions vs. Fixed Compressors

A compact, high-pressure portable tire inflator can replace a hard-mounted compressor and its associated plumbing. This can save approximately 10–15 lbs and allows the weight to be stored in the "20% zone" (low and central) rather than in the engine bay or rear quarter panel.

Compact Lithium Jump Starters vs. Dual Batteries

Replacing a secondary 60 lb lead-acid battery with a 3 lb lithium-ion jump starter is an effective way to improve a vehicle's power-to-weight ratio. These compact units provide emergency starting capability while removing a significant "clump" of weight from the chassis.

Internal Observation: Based on patterns observed in our customer support and repair data, we have seen that a significant percentage of electrical system failures in off-road vehicles stem from the vibrations and heat associated with hard-mounted secondary battery trays. Transitioning to portable lithium solutions can reduce these mechanical stress points (based on internal case reviews; not a controlled laboratory study).

5. Practical Framework: A 5-Step Loading Protocol

Pre-Departure Quick Checklist

[ ] Heaviest items placed low and between the axles?
[ ] Side-to-side weight balanced (driver vs. passenger)?
[ ] Roof load limited to bulky/lightweight items?
[ ] Vehicle "squat" is minimal and level?
[ ] All items secured to prevent shifting during pitch/roll?

To achieve optimal balance, follow this sequence:

Identify the Heaviest Items: Group your water (approx. 8.3 lbs/gallon), fuel (approx. 6.3 lbs/gallon), tools, and recovery gear.
The Low-Central Anchor: Place these heavy items on the floor of the vehicle, directly behind the front seats. This is typically the most stable point in the chassis.
Cross-Chassis Balancing: If you have a heavy permanent fixture on the driver's side (like a fuel tank), place your heavy tool kit or water storage on the passenger side to balance the lateral weight.
The Roof Audit: Aim to limit roof gear to lightweight, bulky items like sleeping bags or recovery boards. If a rooftop tent is used, it should ideally be the only heavy item on the rack.
The "Squat" Test: Once loaded, observe the vehicle on level ground. If the rear is visibly lower than the front, you may have exceeded the rear GAWR or created a lever effect that can compromise steering.

For more on how weight affects specific mechanical systems, see our guide on Weight and Velocity: Why Load Limits Affect Braking Safety.

6. Compliance, Standards, and Engineering Trust

Building a reliable off-road vehicle requires adhering to established safety frameworks. When selecting gear for weight-sensitive applications, look for evidence of rigorous testing. For example, any lithium-powered device should adhere to IATA lithium battery transport guidelines to ensure stability under vibration and temperature extremes IATA Lithium Battery Guidance.

Furthermore, the EU General Product Safety Regulation (EU) 2023/988 emphasizes the importance of clear documentation and safety warnings. This is particularly relevant for load-bearing equipment and pressurized systems like tire inflators. As noted in the brand's whitepaper, The 2026 Modern Essential Gear Industry Report, providing transparent data on tool performance limits is essential for the serious overlander who must calculate every pound.

Summary of Weight Distribution Logic

Effective off-road weight management is a continuous process of refinement. By prioritizing the 20% rule, minimizing roof loads, and consolidating gear into multi-function portable tools, drivers can maintain handling characteristics closer to those designed by the vehicle's engineers.

Priority 1: Keep heavy gear within the wheelbase and below the window line.
Priority 2: Use portable maintenance tools to reduce static vehicle weight.
Priority 3: Respect GAWR limits to help prevent long-term mechanical fatigue.

A balanced vehicle is a more predictable vehicle. In the backcountry, predictability is a vital safety feature.

Disclaimer: This article is for informational purposes only and does not constitute professional automotive engineering or safety advice. Always consult your vehicle's owner manual for specific Gross Axle Weight Ratings (GAWR) and payload capacities. Modification of vehicle weight distribution can significantly alter handling characteristics; perform all changes at your own risk.
