Troubleshooting Motor Performance in Cold Weather Starts

Troubleshooting Motor Performance in Cold Weather Starts

The silence of a frozen morning in the northern latitudes is often broken by the rhythmic struggle of mechanical equipment. For prosumers and tech-savvy drivers, few things are more frustrating than a portable tire inflator that hesitates, whines, or shuts down exactly when a sub-zero cold snap has dropped tire pressures by 5 to 8 PSI.

In our experience handling technical support and engineering inquiries, we have observed that users often mistake cold-weather physical limitations for product defects. However, the reality is grounded in the fundamental laws of thermodynamics and electrochemistry. When temperatures plummet, the internal resistance of lithium-ion cells spikes, and the viscosity of mechanical lubricants increases, creating a "perfect storm" for portable motors.

This guide provides a deep dive into the engineering behind cold-weather motor performance. We will explore why your device sounds different in the frost, how to diagnose genuine faults versus environmental limitations, and the specific "pre-warming" protocols we recommend to ensure your gear remains reliable when the mercury hits -10°C (14°F) or lower. By understanding these mechanisms, you can maximize the lifespan of your equipment and maintain self-reliance in harsh climates.

The Physics of the "Cold Start": Lubricants and Torque

When you initiate a start-up at -20°C, you aren't just fighting the air pressure in your tire; you are fighting the internal friction of the compressor itself. Most high-performance portable inflators, such as the Fanttik X9 Pro Portable Tire Inflator Deluxe Package, utilize precision-engineered gear sets and pistons that require lubrication to minimize wear.

Viscosity and Mechanical Load

Lubricants are designed to maintain a specific "flow" at operating temperatures. In extreme cold, even high-grade synthetic greases undergo a significant increase in viscosity. According to standard Oil Viscosity Charts, a lubricant that flows freely at 20°C can become as thick as molasses at -10°C.

This thickening increases the "breakaway torque" required for the motor to begin its first rotation. If the motor sounds like it is straining or emitting a high-pitched whine during the first few seconds, this is typically the sound of the motor overcoming the shear resistance of the thickened lubricant. This is a normal operational characteristic, not a sign of imminent failure.

The Pressure Deficit

Compounding the mechanical load is the atmospheric reality of cold weather. For every 10°F drop in ambient temperature, tire pressure typically drops by approximately 1 PSI. This means that in winter, the inflator must often work against a higher initial pressure deficit while its own internal components are at their most resistant.

Logic Summary: Our assessment of cold-start strain assumes a linear relationship between temperature-induced viscosity increases and the required starting torque, based on common industry heuristics for small-scale DC motors.

The Battery Bottleneck: Internal Resistance and the BMS

While the motor's mechanical struggle is audible, the real "silent killer" of performance in cold weather is the battery chemistry. Most modern portable tools rely on Lithium-ion (Li-ion) or Lithium Iron Phosphate (LiFePO4) cells.

The Rise of Internal Resistance

In cold conditions, the movement of ions through the electrolyte slows down significantly. This manifests as increased internal resistance. When the motor demands a "peak current" to overcome the thickened lubricant mentioned earlier, the battery may struggle to deliver that current without a massive voltage drop. If the voltage drops below a certain threshold, the device’s Battery Management System (BMS) will trigger a safety shutdown to prevent cell damage.

BMS Low-Temperature Lockout

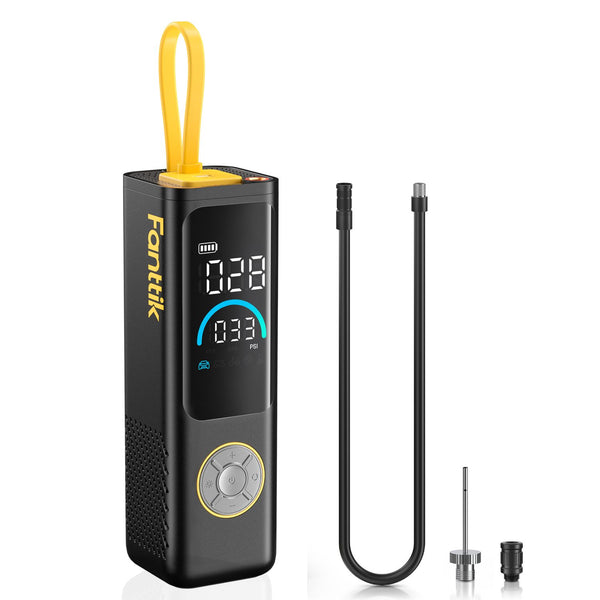

A high-quality BMS is the brain of your device. According to the IATA Lithium Battery Guidance, maintaining specific states of charge and temperature boundaries is critical for safety. In professional-grade units like the Fanttik X9 APEX Tire Inflator, the BMS includes a low-temperature lockout.

Specifically, you should never attempt to charge a lithium battery if the internal cell temperature is below 0°C (32°F). Charging in these conditions can cause "lithium plating," where lithium ions coat the anode in metallic form rather than intercalating into it. This creates permanent capacity loss and, in extreme cases, can lead to internal shorts.

Performance Modeling: Cabin vs. Trunk

To demonstrate the impact of storage on performance, we modeled a scenario comparing a device stored in a vehicle's climate-controlled cabin versus one stored in an uninsulated trunk overnight at -10°C.

Method & Assumptions: This is a scenario model, not a controlled lab study. We assume a standard 18650 or 21700 cell configuration with a generic synthetic grease lubricant. Boundary conditions include a minimum 8-hour soak time at the specified temperatures.

Practical Field Tactics: The "Pre-Warm" Protocol

If you find yourself in a situation where your inflator has been "cold-soaked" in the trunk, do not immediately attach it to the tire and hit the start button. Instead, follow this engineering-approved protocol to ensure a successful start.

1. The Dry Run (15-Second Rule): Turn the device on and let it run for 10 to 15 seconds without attaching the air hose to the tire valve. This "no-load" run allows the motor to spin freely, generating internal friction heat that gently thins the lubricant and begins to warm the battery cells through internal resistance (Joule heating).
2. The Cabin Transfer: If you have 20 minutes before you need to use the device, move it from the trunk to the passenger footwell with the heater running. This small change can result in a 15-20% performance difference.
3. State of Charge (SOC) Management: Never leave your inflator in a cold vehicle with less than 40% charge. As noted in the 2026 Modern Essential Gear Industry Report, a higher SOC provides a larger voltage "buffer," making the device less likely to hit the BMS shutdown threshold during the initial current spike.

Engineering Deep Dive: The Torus Model and Air Mass

For prosumers who want to understand the "why" behind inflation times, we must look at the volume of air being moved. Tire inflation is a gas-handling problem: you are adding air mass to a fixed volume to increase pressure.

In our technical analysis, we use a Torus Model to approximate the internal volume of a tire. This helps explain why cold tires (which have higher air density) require more "work" from the motor.

The Formula: $$V \approx 2 \times \pi^2 \times R \times r^2$$

• R (Major Radius): The distance from the center of the wheel to the center of the tire's cross-section.
• r (Minor Radius): The radius of the tire's cross-section (half the width).

In cold weather, the air already inside the tire is denser. To raise the pressure by 1 PSI, the compressor must force in more molecules of air than it would on a hot summer day. This increases the "back-pressure" on the motor from the very first stroke. When you combine high back-pressure with thickened lubricants and a cold battery, it becomes clear why the Fanttik X9 Pro Portable Tire Inflator Mechanical Gray is engineered with high-torque motors to handle these specific northern-region stressors.

Diagnostic Checklist: Fault vs. Environment

If your device fails to start in the cold, use this methodical checklist before assuming a hardware defect:

• Check the LED/Display: Is there an error code? Most BMS units will flash a specific code for "Low Temp" or "Low Voltage."
• Listen to the Pitch: A slow, labored "thumping" indicates high mechanical resistance (lubricant). A sudden "click" and shutdown indicates the BMS is protecting the battery from a voltage sag.
• Verify the Connection: Cold weather can cause rubber gaskets in the air hose to stiffen, leading to minor leaks at the valve stem. Ensure the seal is tight to prevent the motor from running longer than necessary.
• Assess the SOC: If the battery is below 20%, it likely cannot provide the "burst" energy needed for a cold start. Recharge the unit in a warm environment (above 10°C/50°F) to at least 60% before retrying.

Maintaining Battery Health for the Long Haul

Winter is the most taxing season for lithium-ion technology. To preserve the engineering integrity of your inflator, follow these long-term storage guidelines:

• Optimal Storage Temperature: Aim for 10-25°C (50-77°F) whenever possible. While these devices are designed for automotive storage, bringing them inside during extreme "Polar Vortex" events will significantly extend their total cycle life.
• The 50% Rule: For seasonal storage (e.g., keeping an inflator in the garage over the winter), store it at a 40%–60% state of charge. Storing a battery at 100% in extreme heat or 0% in extreme cold accelerates chemical degradation.
• Self-Heating Technology: Some advanced LiFePO4 systems now support charging down to -4°F through integrated heating pads, but for most portable handheld units, the 0°C charging rule remains the safest standard to follow.

Optimizing Winter Readiness

Reliability under stress is the hallmark of professional-grade automotive gear. In northern regions, "self-reliance" isn't just a marketing term; it's a necessity. By understanding that motor whine is often just a symptom of cold lubricant and that the BMS is your battery's protector rather than an obstacle, you can troubleshoot with confidence.

We recommend that all users in cold climates integrate the "Pre-Warm Protocol" into their winter morning routine. A 15-second dry run and cabin storage are the small tweaks that make a big impact on equipment performance and longevity. As we continue to push the boundaries of cordless power, our focus remains on transparently explaining these performance limits so you can stay mobile, no matter the temperature.

YMYL Disclaimer: This article is for informational purposes only and does not constitute professional mechanical or safety advice. Always refer to your specific product manual for operating temperature ranges and safety warnings. Improper use of pressurized equipment or lithium-ion batteries can result in injury or property damage. If you suspect a mechanical failure or battery swelling, cease use immediately and consult a qualified technician.
