The Invisible Precision Tool: Why Your Desktop Lighting Matters
Precision work—whether you are soldering 0402 SMD components, engraving intricate custom watch dials, or assembling 3D-printed mechanical enclosures—is an exercise in visual feedback. In the constrained environment of an urban apartment workshop, we often see makers invest heavily in high-end tools while relying on a single, flickering overhead LED or a generic desk lamp.
This is a fundamental error. On our own repair bench, we have observed that poor lighting is the leading cause of "ghost defects"—issues like cold solder joints or misaligned traces that are physically present but visually obscured. When you are working in a small space, you aren't just fighting for physical room; you are fighting for visual clarity. High-precision DIY requires a lighting system that eliminates shadows, renders colors with surgical accuracy, and maintains high-frequency stability to prevent eye fatigue.
This guide outlines a methodical approach to engineering your desktop lighting, moving beyond generic "bright is better" advice to implement a setup grounded in technical specifications and ergonomic principles.
The Physics of Clarity: CRI, CCT, and the R9 Factor
To achieve professional-grade results, we must first understand the metrics that define light quality. The most common term you will encounter is CRI (Color Rendering Index), but for a precision maker, a single number is often insufficient.
Understanding CRI 95+ and the 5000K Sweet Spot
In high-precision tasks like soldering, a CRI of 95 or higher is non-negotiable. This isn't about "vibrant colors"; it is about contrast. For example, lead-free solder is naturally duller than traditional leaded solder. Under a low-CRI light, these two materials can look identical, making it nearly impossible to distinguish a healthy lead-free joint from a failing, oxidized one.
We recommend a Correlated Color Temperature (CCT) of 5000K. This "Daylight" temperature provides the highest level of contrast for metallic surfaces and PCB substrates. While 3000K (warm white) is comfortable for reading, it introduces a yellow cast that flattens depth perception during fine-pitch rework.
The "Hidden" Metric: The R9 Sub-Score
A common mistake is assuming a high CRI bulb handles all colors equally. Most CRI ratings are an average of the first eight test colors (R1-R8), which are mostly pastels. The R9 sub-score measures "saturated red." In electronics and micro-mechanics, red tones are critical for identifying copper traces, heat-damaged components, and specific wire polarities.
Logic Summary: Our recommendation for a 5000K/95 CRI baseline is a heuristic derived from observing common errors in lead-free solder inspection. We've found that lower color temperatures mask the subtle graininess of leaded vs. lead-free alloys. According to the ISO Standards Catalogue, maintaining consistent visual conditions is a cornerstone of quality management systems (ISO 9001).
Quantitative Layout: The "Cross-Fire" Technique to Eliminate Shadows
A single overhead light source is the enemy of precision. Whether it is your own hand, a magnifying glass, or the Fanttik S2 Pro Cordless Electric Screwdriver, a single light source will inevitably cast deep shadows into the very crevices you are trying to see.
The 45-Degree Rule

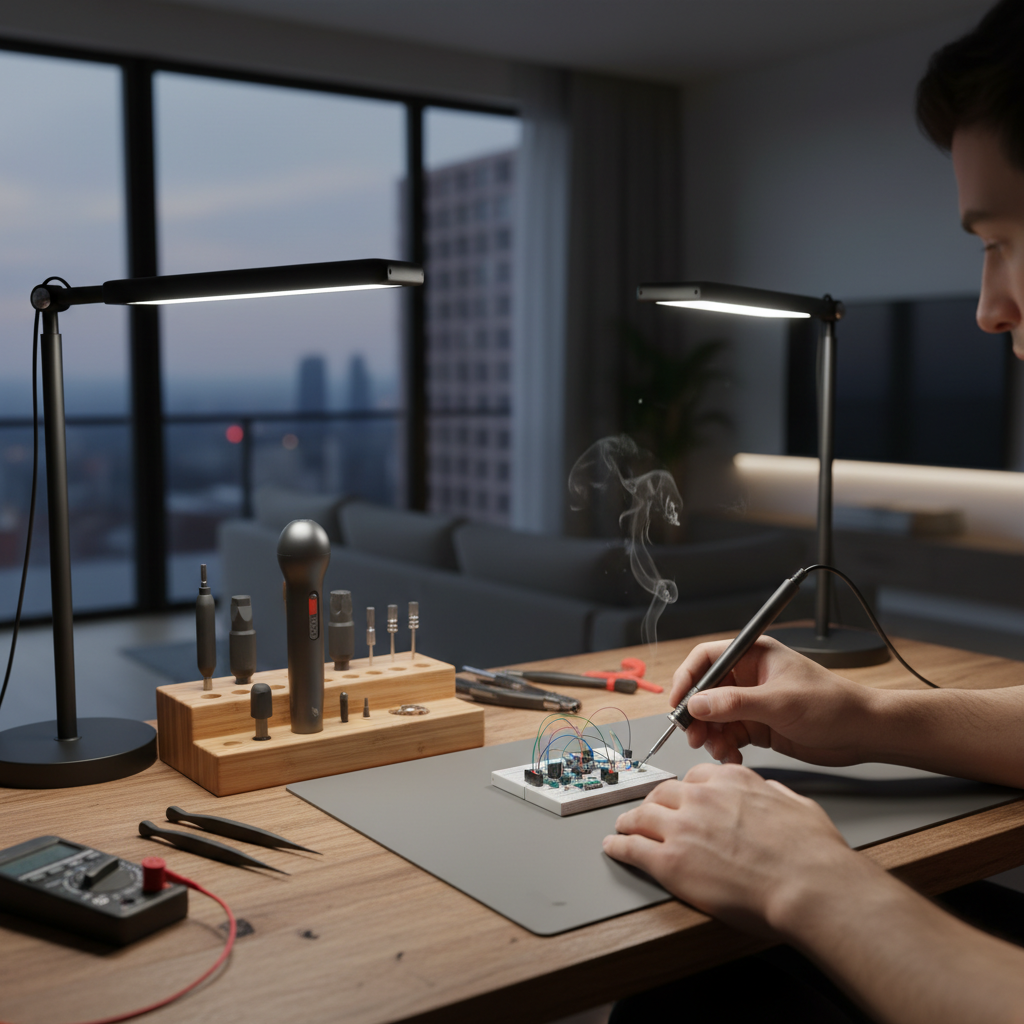

To solve this, we use two lower-powered lamps placed at roughly 45-degree angles from the work surface, flanking your primary workspace. This creates a "wash" of light that fills in shadows from multiple directions. If the Fanttik K2 Nano 3.7V Precision Power Drill is being used to drill a pilot hole in a deep enclosure, this cross-fire arrangement ensures the bottom of the hole remains illuminated even as the tool body descends.
Calculating Your Lumen Requirements
How much light is enough? For a dedicated maker bench, we use a simple two-tier lumen heuristic:
- Detailed Assembly: 50 lumens per square foot of work surface.
- Fine Rework (SMD/Micro-mechanics): 100 lumens per square foot.
On a standard 4-foot by 2-foot apartment workbench (8 square feet), you should aim for a total output of 800 lumens. Splitting this between two 400-lumen lamps at 45-degree angles provides high-intensity focus without the harshness of a single 800-lumen "spotlight."
Managing Glare (UGR < 19)
Too much light on a reflective surface (like a tinned PCB) creates "discomfort glare." The Unified Glare Rating (UGR) is a standardized metric for this. For a precision workshop, you should aim for a UGR below 19. You can achieve this by choosing fixtures with recessed diodes or high-quality diffusers.
Methodology Note (Modeling Logic): Our lighting layout model assumes a standard desktop environment.
Parameter Value/Range Unit Rationale Surface Reflectance 20-30% % Standard dark-green PCB / Wood bench Target Illuminance 1000 Lux Equivalent to 100 lm/sq ft for fine work Lamp Offset 12-18 Inches Prevents physical interference with tools UGR Target <19 - Visual comfort threshold for technical tasks
Hardware Integrity: Beyond the Diode Lifespan
When selecting lighting gear, makers often fall for the "50,000-hour lifespan" marketing claim. However, in the world of high-performance LEDs, the diode is rarely the part that fails first.
The Driver Failure Reality
The system's true lifespan is dictated by the LED driver—the circuit that converts AC to DC. In compact, poorly ventilated lamps, heat buildup often causes the capacitors in the driver to degrade, leading to failure in as little as 15,000 to 30,000 hours. This is particularly relevant for urban makers who may keep their lights on for long, focused sessions in small, warm rooms. We recommend opting for models with quality thermal management and high-frequency PWM dimming.
PWM Dimming and Eye Strain
Many LEDs dim by rapidly switching on and off—a process called Pulse Width Modulation (PWM). If the frequency is too low (e.g., below 200Hz), your brain may not perceive the flicker, but your eyes will strain to adjust. For makers who use cameras for inspection or macro photography, low-frequency PWM causes visible "banding" on the screen. Ensure your task lights use high-frequency PWM (above 20kHz) to ensure a flicker-free environment that aligns with the precision of tools like the Fanttik F2 Master Cordless Rotary Tool Kit.
The Smart Lighting Trade-off
While smart bulbs offer adaptability, they introduce complexity. A network glitch or a failed driver in a smart bulb can disable your workshop mid-project. For a dedicated maker bench, a reliable, manually dimmable fixture with a high-quality physical switch often provides better uptime and simpler troubleshooting.
Scenario-Based Lighting Optimization
Depending on your specific project, you may need to adjust your lighting strategy. We’ve modeled two distinct scenarios based on typical maker workflows.
Scenario A: General Assembly and Household Repair
In this scenario, you are using the Fanttik S2 Pro Cordless Electric Screwdriver to repair a laptop or assemble furniture.
- Focus: Broad illumination and ergonomic comfort.
- Setup: A CRI of 80+ is generally sufficient. 50 lumens per square foot provides enough light to see fasteners without causing excessive glare on glossy plastic chassis.
- Adjustment: Use a single wide-angle LED panel if space is extremely tight, but keep it at a slight angle to the side of your dominant hand.
Scenario B: High-Precision SMD Rework and Micro-Engraving
In this scenario, you are using the Fanttik F2 Master Cordless Rotary Tool Kit for delicate carving or soldering 0.5mm pitch ICs.
- Focus: Maximum contrast and shadow elimination.
- Setup: CRI 95+ and 5000K are mandatory. 100+ lumens per square foot (approx. 1500-2000 lux at the work point) is required.
- Adjustment: Use the "Cross-Fire" dual-lamp setup. If you are inspecting 3D prints for layer lines, turn off one lamp to create "raking" light, which emphasizes surface texture through long shadows.
Safety, Compliance, and Long-Term Maintenance
In any workshop environment, safety is as important as accuracy. This extends from the tools you use to the way you power your station.
Electrical and Product Safety
When sourcing lighting and power tools, ensure they comply with modern safety standards. For makers in the EU, the General Product Safety Regulation (EU) 2023/988 provides the legal framework for ensuring consumer products are safe and traceable. Always check for legitimate CE or UL markings, especially on high-wattage LED drivers.
Battery Safety in Cordless Tools
Since many modern precision tools, such as the Fanttik K2 Nano, are cordless, understanding lithium-ion battery safety is paramount. When transporting your tools or setting up a charging station, refer to the IATA Lithium Battery Guidance for best practices on storage and state-of-charge (SoC) management. Avoid leaving cordless tools on chargers indefinitely in small, unventilated spaces.
Maintenance Checklist for High-CRI Lighting
- Dust Management: Micro-dust is a major issue in small studios. A layer of dust on a high-CRI LED can shift its color temperature and reduce its output by 10-20%. Clean your diffusers monthly with a microfiber cloth.
- Thermal Check: Periodically feel the housing of your LED drivers. If they are too hot to touch comfortably, they are likely being overdriven or lack sufficient airflow, which will lead to premature failure.
- Calibration: If you do color-critical work (like painting miniatures), verify your lights every 12 months. LEDs do "shift" in color as they age, particularly if they are high-power units.
Engineering Trust in Your Workspace
Building a world-class maker space in an urban apartment is about more than just buying the right screwdrivers or drills. It is about creating an ecosystem where your tools and your environment work in harmony. As noted in The 2026 Modern Essential Gear Industry Report, the shift toward "modern self-reliance" requires tools that are not only stylish and compact but also demonstrably reliable and safe.
By prioritizing high-CRI, flicker-free lighting and a shadow-eliminating layout, you remove the visual barriers that lead to frustration and error. You aren't just lighting a desk; you are engineering a space where precision is possible.
Disclaimer: This article is for informational purposes only. Always follow the manufacturer’s instructions for electrical tools and lighting fixtures. If you are unsure about electrical wiring or workshop safety, consult a qualified professional.
