This is the central hub for every Fanttik D-series laser level manual. Whether you own a single-line D2, a five-line D12, or the 16-line D16 APEX, you can download the official PDF below and follow the shared quick-start, self-leveling, and charging guidance that applies across the range. Every Fanttik D-series laser level uses an Osram green laser diode for high-visibility lines, a built-in rechargeable battery charged over USB-C, and a pulse mode that extends the working range outdoors. Find your model in the table, grab the manual, then read the setup steps.
Where to Find Your Fanttik Laser Level Manual
Fanttik publishes the official user manual for each D-series model as a downloadable PDF — no registration required. Locate your exact model name on the unit's label or box, then download the matching manual:
| Model | Line configuration | Manual PDF |
|---|---|---|
| Fanttik D2 | Cross-line (green) | Download D2 manual |
| Fanttik D2 PLUS | Cross-line (green) | Download D2 PLUS manual |
| Fanttik D2 PRO | Cross-line (green), pulse mode | Download D2 PRO manual |
| Fanttik D2 APEX | Cross-line (green) | Download D2 APEX manual |
| Fanttik D5 | Multi-line (green) | Download D5 manual |
| Fanttik D12 PLUS | 5-line (green) | Download D12 PLUS manual |
| Fanttik D12 PRO | 5-line (green), pulse mode | Download D12 PRO manual |
| Fanttik D12 ACE | 5-line (green) | Download D12 ACE manual |

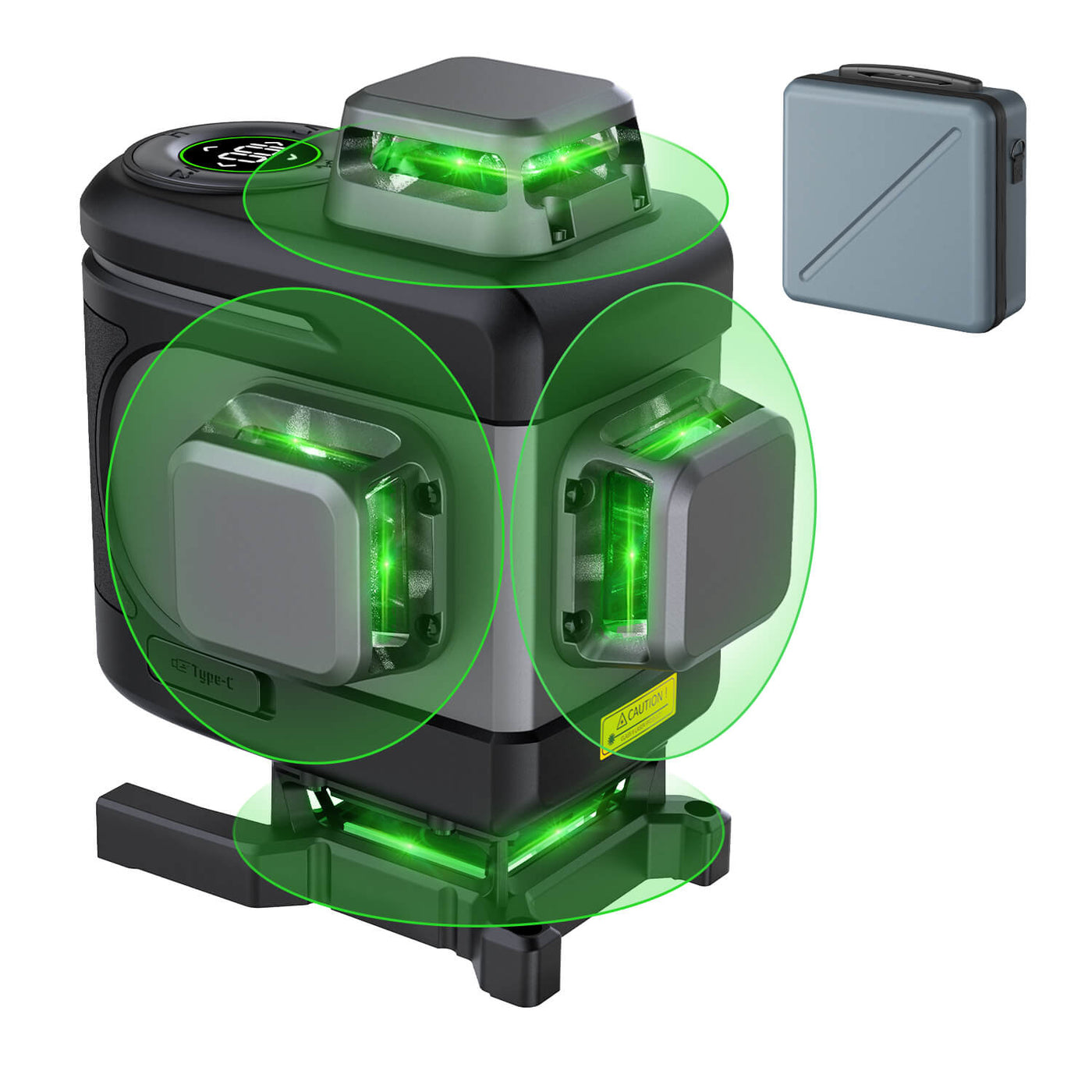

| Fanttik D16 APEX | 16-line 4D, 360° (green) | Download D16 APEX manual |
Not sure which model you have? The model name is printed on the rating label on the underside of the unit and on the original packaging. You can also reach the Fanttik Support Center for documentation help or to confirm your exact variant.
Flagship Model Specs at a Glance
These figures come directly from the current Fanttik product pages for the most popular D-series models:
| Parameter | D2 PRO | D12 PRO | D16 APEX |
|---|---|---|---|
| Laser lines | Cross line (H + V) | 5 lines (H, V, all 3) | 16 lines, 360° 4D |
| Laser source | Osram green | Osram green | Osram green |
| Battery | 2600mAh rechargeable | 5200mAh rechargeable | 5200mAh rechargeable |
| Runtime | 14H (1 laser) / 7H (2 lasers) | 21H (1) / 14H (2) / 7H (all) | 5–20H continuous |
| Charging | USB-C | USB-C (outlet / power bank) | USB-C (outlet / power bank) |
| Pulse / outdoor mode | Up to 200 ft | Up to 200 ft | Up to 200 ft |
| Leveling modes | Self-leveling + manual | Self-leveling + manual | Self-leveling + manual |
| Durability | — | Dust & water resistant | Dust, water & 1m drop resistant |
Exact self-leveling tilt range, line accuracy, and weight are listed in each model's PDF manual. Always defer to the manual for your specific unit rather than assuming figures carry across models.
Quick-Start Steps (All D-Series Models)
- Charge before first use. Connect the included USB-C cable to the laser level's charging port and plug into a USB-C wall adapter or power bank. The digital display shows charging status; let it reach full before relying on the tool for a long session.
- Unlock the pendulum. D-series levels ship with the self-leveling pendulum locked for transport. Slide the lock switch to the unlocked position before use — in self-leveling mode the unlocked pendulum lets the laser find true level on its own.
- Set it on a stable surface. Place the unit on a tripod, mount, or flat surface within its self-leveling range. If the base is tilted too far, the laser will flash or beep to warn you it cannot auto-level.
- Power on and pick a line mode. Press the power/mode button to cycle through the available lines (horizontal, vertical, cross, or — on the D16 APEX — full 360° coverage). Only the lines you need stay on, which also extends battery runtime.
- Switch to manual mode for slopes. When you need a deliberately tilted line (stairs, ramps, drainage), engage manual / tilt mode to override self-leveling.
- Use pulse mode outdoors. In bright daylight the green lines wash out. Enable pulse mode (up to 200 ft on D2 PRO, D12 PRO, and D16 APEX) and pair with a laser detector to pick up the beam at distance.
Self-Leveling vs. Manual Mode
Every D-series unit offers two leveling behaviors:
- Self-leveling (automatic): With the pendulum unlocked and the base within the unit's tilt range, the laser settles to true horizontal and vertical automatically. This is the default for hanging cabinets, tiling, and frame alignment.
- Manual / tilt mode: Locks the pendulum so you can project a line at any angle you set. Use it for stair stringers, sloped ceilings, and drainage falls.
If your unit will not auto-level — the lines blink or it sounds a warning — the base is outside the self-leveling range or the pendulum is still locked. See self-leveling not working for the full fix.
Charging & Battery
All current D-series models use a built-in rechargeable battery charged over USB-C — there are no disposable batteries to swap. Charge with the supplied cable and a standard USB-C adapter or power bank. The digital display indicates charge level and charging status. Runtime depends on how many lines you run: enabling fewer lines extends the time between charges (for example, the D12 PRO delivers 21H on a single laser but 7H with all lines on). Store the unit charged and avoid leaving it fully depleted for long periods.
Care & Safety
- Lock the pendulum before transport. Always slide the lock switch back before moving or packing the unit — this protects the self-leveling mechanism from shock.
- Never stare into the beam. These are green-laser tools; do not look directly into the aperture or point the beam at anyone's eyes.
- Keep the lens clean. Wipe the laser window with a soft, dry cloth. Dust and smudges scatter the beam and dim the lines.
- Respect the durability rating. The D12 PRO and D16 APEX carry dust and water resistance (D16 APEX adds 1m drop protection), but no D-series unit is meant for submersion or repeated drops.
- Charge with USB-C only. Use a quality USB-C cable; a damaged or data-only cable may charge slowly or not at all.
FAQ
Q: Where do I download the manual for my Fanttik laser level?
A: Find your exact model in the table above and click its PDF link — each downloads directly from Fanttik's servers with no sign-up. The D2 PRO manual, for example, is hosted here.
Q: How do I know which D-series model I own?
A: The model name (D2, D2 PRO, D12 PRO, D16 APEX, etc.) is printed on the rating label on the underside of the unit and on the original box.
Q: Why won't my laser level self-level?
A: The pendulum is still locked, or the base is tilted beyond the self-leveling range. Unlock the pendulum and set the unit on a flatter surface. Full steps are in self-leveling not working.
Q: Can I see the green lines outdoors?
A: In bright sun the lines fade. Switch on pulse mode (up to 200 ft on D2 PRO, D12 PRO, and D16 APEX) and use a laser detector to capture the beam at distance.
Q: How is the battery charged?
A: Over USB-C, using the included cable with any standard USB-C wall adapter or power bank. The digital display shows charging status.
Q: How long does a charge last?
A: It depends on the model and how many lines are active. The D2 PRO runs 14H on one laser; the D12 PRO runs up to 21H on one laser and 7H with all lines on; the D16 APEX runs 5–20H continuous depending on mode.
