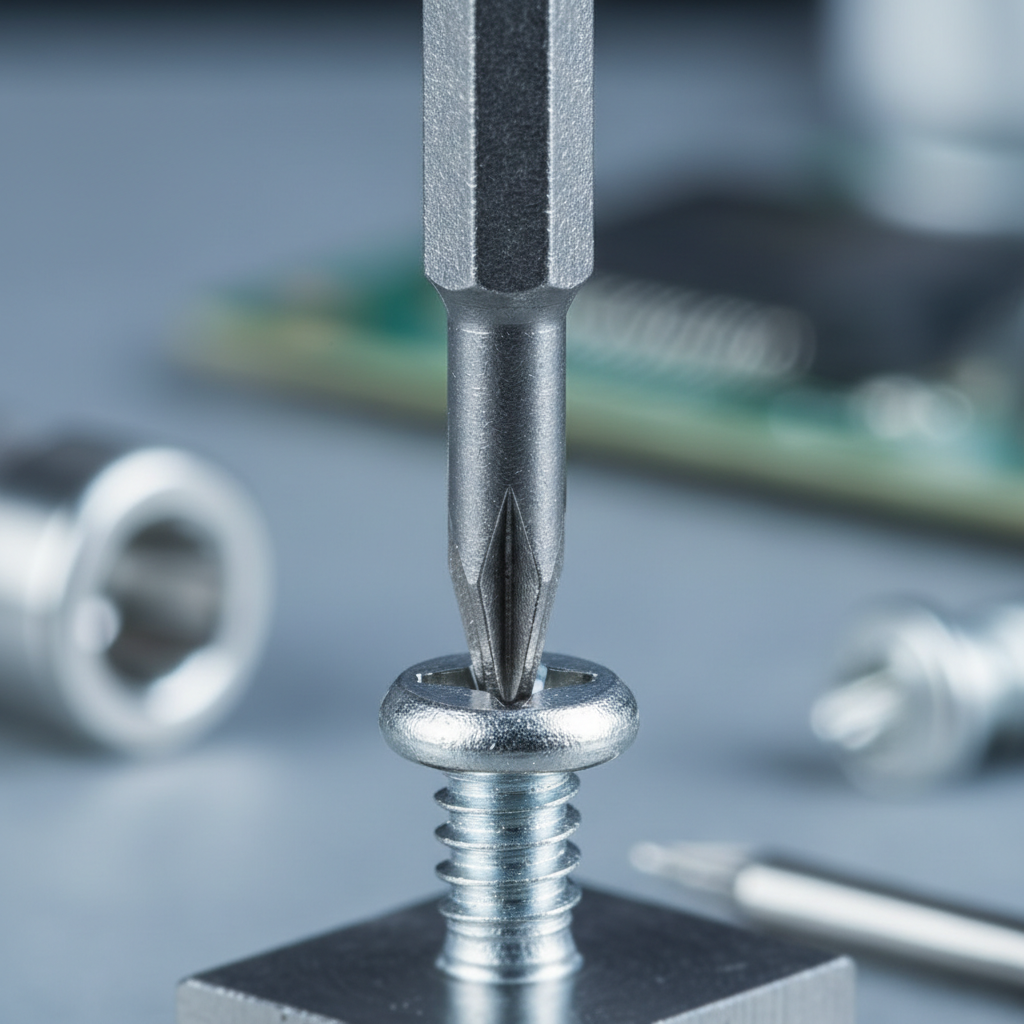

The sickening "pop" of a screwdriver bit jumping out of a screw head is a sound every electronics tinkerer and DIY enthusiast dreads. In the workshop, we call this "cam-out." At its best, it is a minor annoyance that slows down a project; at its worst, it results in a "stripped" screw—a fastener with a mangled drive hole that is nearly impossible to remove without destructive methods.

To the uninitiated, a cross-head screw is just a cross-head screw. However, on our repair benches, we have observed that the difference between a successful repair and a ruined workpiece often comes down to a fraction of a millimeter in bit geometry. Understanding the engineering behind why bits slip is the first step toward mastering precision assembly.

The Engineering Intent: Why Cam-out Exists

It is a common misconception that cam-out is a flaw in tool design. Historically, it was actually a featured safety mechanism. According to the historical records of screw drive development, the Phillips screw was specifically engineered for the automated assembly lines of the 1930s.

In that era, torque-limiting clutches on power drivers were unreliable. The tapered flanks of the Phillips bit were designed to force the tool out of the screw head once a certain torque threshold was reached. This prevented the machine from over-tightening the screw or snapping the head off. While this was a boon for early industrial manufacturing, it became a significant hurdle for modern users who require high torque and precision.

Today, as we move toward more powerful, cordless precision tools, the legacy of cam-out remains. As noted in the 2026 Modern Essential Gear Industry Report, engineering trust in a cordless world requires a shift from "safety slips" to "precision engagement."

The Phillips vs. Pozidriv Conflict

One of the most frequent mistakes we see in our workshops is the interchanging of Phillips (PH) and Pozidriv (PZ) bits. At a glance, they look identical, but their internal geometries are fundamentally incompatible.

• Phillips Bits: Feature tapered flanks that narrow toward the tip. This design actively encourages the bit to climb out of the screw under load.
• Pozidriv Bits: Have parallel flanks and additional "ribs" between the main cross arms. This design is intended to provide more surface area and reduce the tendency to cam-out.

The "gotcha" here is that a Phillips bit will technically fit into a Pozidriv screw, but it will only make contact at the very tip. As you apply torque, the tapered flanks lose contact with the screw's parallel drive walls. We have found that this mismatch dramatically increases cam-out risk after just two or three rotations.

Expert Tip: You can identify a Pozidriv screw by the small radial tick marks (like a "plus" sign rotated 45 degrees) etched between the primary cross arms on the screw head. If you see those marks, put your Phillips driver away and reach for a dedicated PZ bit.

Torx Fasteners and the Half-Step Trap

While the Phillips head is prone to cam-out by design, the Torx (or "star") drive was engineered to eliminate it entirely. By using a six-point contact system with a 15-degree drive angle, Torx fasteners distribute torque across a much larger surface area.

However, Torx systems introduce a different problem: the "half-step" sizing error. In our experience, the most frequent cause of premature bit wear is using a bit that is even half a metric step too large—for example, attempting to use a T10 bit in a T9 fastener.

Because the star points are so fine, a slightly oversized bit may feel like it has "seated," but it is actually resting on the very tips of the star points rather than the flanks. This concentrates 100% of the stress on the weakest part of the tool. Experienced technicians develop a "feel" for this: a properly matched bit should seat with a distinct, almost magnetic-feeling "click" and exhibit zero perceptible wobble when gently rocked.

The Lifecycle of a Precision Bit

Even with perfect technique, bits are consumable items. In consumer electronics repair, where fasteners are often made of softer alloys or have microscopic tolerances, bit degradation is a silent project-killer.

We have developed a practical baseline for tool maintenance: retire a precision bit after completing approximately 50 to 75 similar fasteners. Even if the bit looks fine to the naked eye, microscopic rounding of the edges occurs with every use. This rounding reduces the surface contact area, which in turn requires the user to apply more downward force to prevent slipping. This extra force is often what leads to the screwdriver slipping and scratching a delicate PCB or casing.

Modeling Bit Wear and Failure

To understand the impact of bit wear, we modeled the relationship between edge rounding and the required "downward pressure" (axial force) needed to maintain engagement.

Logic Summary: This model assumes a deterministic wear pattern where the bit's sharp engagement angle is gradually replaced by a radius. As the radius increases, the vector of force shifts from "rotational" to "upward," necessitating more user-applied pressure. This is a scenario model based on common workshop heuristics, not a controlled laboratory study.

The Impact Driver Paradox

Modern DIYers often use impact drivers for everything from deck building to small appliance repair. While impact drivers are excellent for driving long screws into wood, they interact with Phillips cam-out in a unique way.

Conventional wisdom suggests that the high torque of an impact driver would make cam-out worse. However, our observations suggest a "hammering" effect. Modern impact drivers apply torque in high-frequency pulses. These pulses can effectively "hammer" a precision bit back into the recess hundreds of times per minute, temporarily overcoming the cam-out mechanism.

While this helps drive the screw, it is incredibly destructive to the bit. If you must use an impact driver with Phillips screws, ensure you are using "Impact Rated" bits, which are designed with a torsion zone to absorb these shocks.

Material-Specific Geometry

One "non-obvious" insight we’ve gathered is that the "perfect" bit fit is often material-dependent. A bit geometry that works flawlessly in softwood may cause issues in metal or hardwood.

This is due to the differing friction coefficients and shear strengths of the materials. In metal-to-metal contact, the tolerances are much tighter. If the bit is even slightly off-center, the lack of "give" in the metal fastener will cause the bit to eject instantly. In contrast, wood allows for a slight amount of deformation, which can sometimes mask a poor bit fit—until the wood strips out entirely.

A Methodical Approach to Fastening

To ensure the longevity of your tools and the safety of your projects, we recommend the following methodical checklist for every fastener:

1. Visual Identification: Look for the Pozidriv "tick marks" or the specific star-point count of a Torx head.
2. The "Dry Fit" Test: Insert the bit without the driver handle (if possible) and rock it. There should be no "play."
3. The Engagement "Click": Feel for that magnetic-like seating. If it feels "mushy," the bit is likely worn or the wrong size.
4. Axial Alignment: Ensure the driver is perfectly perpendicular to the screw head. Any tilt creates an uneven load that triggers cam-out.
5. Bit Retirement: Track your usage. If you’ve finished a few large electronics projects with the same bit set, it’s time to inspect them under magnification for rounding.

Precision as a Pillar of Trust

In the world of precision engineering, there is no room for "close enough." As highlighted in the ISO 9001 standards for quality management, consistency and traceability are key to reliable outcomes. Applying this mindset to your tool kit—by choosing bits with verified geometries and replacing them before they fail—is what separates a hobbyist from a master.

By respecting the geometry of the fastener, you aren't just turning a screw; you are preserving the integrity of the engineering that went into the device you are repairing.

Disclaimer: This article is for informational purposes only. Always follow the manufacturer's instructions for your specific tools and fasteners. Improper tool use can result in injury or property damage. If you are unsure of a repair procedure, consult a qualified professional.
