Prevent Plastic Thread Stripping in Toy Repairs

Precision at a Glance: Key Repair Parameters

For those needing an immediate technical baseline to prevent stripping plastic threads, follow these professional-grade heuristics:

Speed Limit: Maintain 200–300 RPM to prevent frictional heat from softening thermoplastic walls.
The "Reverse-Turn" Rule: For every two forward rotations, reverse by half a turn to clear plastic debris (swarf).
Tightness Metric: Stop at the first sign of distinct resistance. Use the "Fingernail Test"—if you cannot turn the driver with just your fingernail against the handle, it is secure.
Emergency Stop: If you feel "spongy" resistance or the screw spins without advancing, stop immediately; the internal boss structure is likely compromised.

The Delicate Art of Toy Repair: Why Precision Trumps Power

Repairing a modern toy is rarely about brute force. Whether you are replacing a battery in a high-end educational robot or fixing a loose limb on a collectible figure, you are working within a world of soft thermoplastics like ABS (Acrylonitrile Butadiene Styrene) and polystyrene. These materials are chosen for their impact resistance, but they possess a significant technical weakness: they are prone to plastic deformation and stripping under low stress.

In a workshop setting, we frequently see toys that have been "repaired to death." A common pattern involves using a standard household screwdriver with excessive downward pressure, leading to the dreaded click-snap—the sound of plastic threads disintegrating. At that point, a simple battery change becomes a structural reconstruction project.

This guide provides a methodical framework for preventing thread failure. We will move beyond generic advice and look at the actual physics of plastic deformation and the specific techniques used by professional technicians to ensure these delicate items remain functional.

Logic Summary: Our recommendations are based on a synthesis of material science data for ABS plastics and patterns observed in consumer electronics return handling (based on common repair patterns, not a controlled laboratory study). We assume standard room temperature (20°C–25°C) and the use of factory-original fasteners.

Understanding the Physics of Plastic Thread Failure

To prevent stripping, we must first understand why it happens. While "cross-threading" (entering the screw at an angle) is a frequent risk, mechanical failure often stems from a less obvious source: excessive axial pressure.

The Axial Pressure Trap

When you place a screwdriver into a screw head and push down hard to "get a grip," you are applying axial load. In soft plastics, if this load is too high before the threads have fully engaged, the leading edge of the screw acts like a punch rather than a wedge. It deforms the plastic boss (the cylindrical post) before the rotation can create a mating thread. This creates a "wallowed out" hole that lacks the structural integrity to hold a fastener.

The Cam-Out Paradox

The common Phillips head screw was designed to "cam-out"—meaning the bit is intended to slip out of the head when a certain torque is reached to prevent over-tightening in metal assembly. However, in delicate toy plastics, this is often a liability.

According to technical analysis from ToolGuyd (an industry tool review platform), the sudden jump of a cam-out applies a sharp, uncontrolled axial spike that can exceed the plastic's yield point. This is why many professional repairers prefer JIS (Japanese Industrial Standard) bits or Torx fasteners, which engage more deeply and reduce the need for high downward pressure.

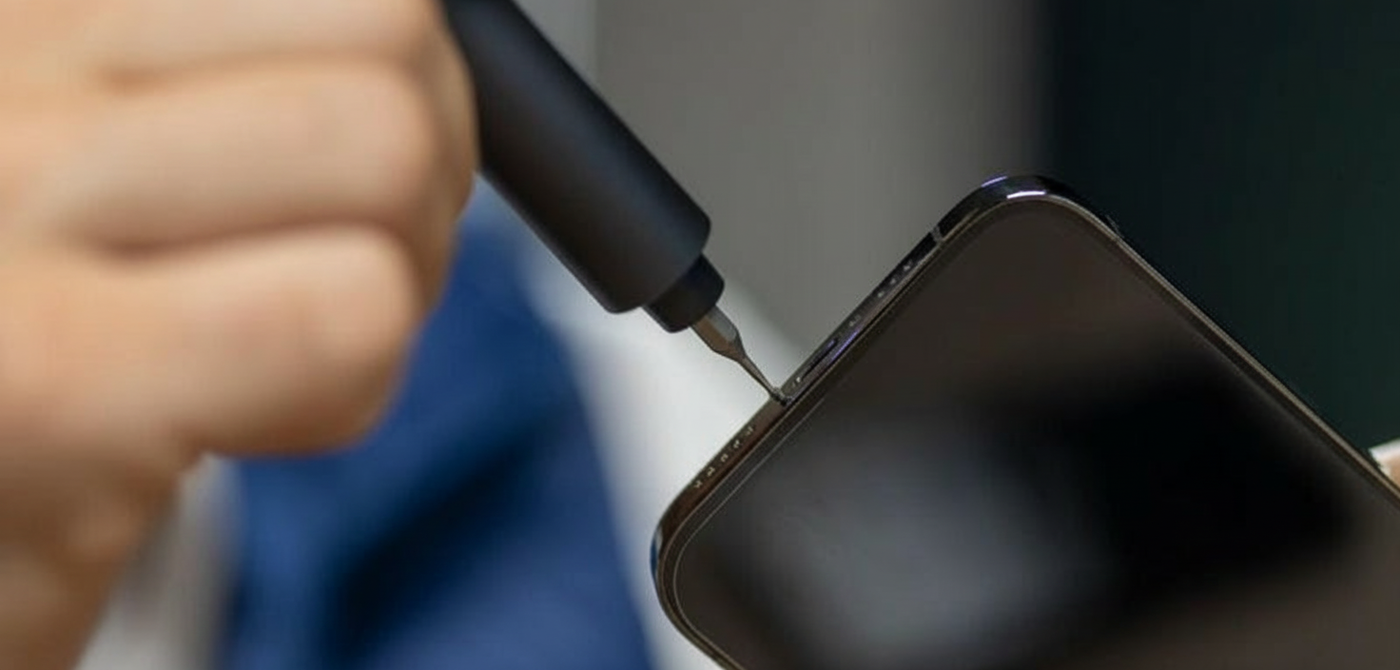

Hand using a compact electric screwdriver (precision screwdriver) to remove a smartphone screw — portable cordless electric screwdriver for DIY electronics repair.

Technical Heuristics for Precision Driving

Success in toy repair requires a shift in mindset: you are not "driving" a screw; you are "feeling" a thread. We recommend the following technical parameters to maintain the integrity of plastic components.

1. The RPM "Goldilocks" Zone

Speed generates friction, and friction generates heat. In thermoplastics, even a small amount of heat can soften the thread walls.

Recommendation: Use a precision driver set to a speed no higher than 200–300 RPM.
Why: This speed is typically slow enough to allow you to react the moment resistance changes, maintaining steady progress without stalling or melting the substrate.

2. The "Reverse-Turn" Method for Self-Tapping

When driving a screw into a hole without pre-existing threads, the screw must cut its own path.

The Heuristic: For every two full rotations forward, reverse the driver by half a turn.
The Mechanism: This action clears the "swarf" (tiny plastic shavings) that accumulate in the thread flutes. If these shavings aren't cleared, they can bind against the walls, creating "false torque" that makes the screw feel tight when it is actually just stuck. This often leads to the boss cracking under internal pressure.

3. The "Fingernail Test" for Final Tightness

For toy-scale plastics, the goal is "snug, not stressed."

The Test: Once you feel a distinct increase in rotational resistance, stop. If you can't easily turn the screw further using just the strength of your fingernail against the driver's chuck or handle, the fastener is generally secure for consumer use.

Torque Modeling: M2 vs. M3 Fasteners

While most home users lack laboratory-grade torque testers, understanding the mathematical limits of these materials helps ground your "feel" in reality. For common toy plastics like ABS, the margin for error is narrow.

Measurement Basis & Assumptions: The following values are estimates based on modeling for virgin ABS plastic at 22°C with a standard thread engagement depth of 2x diameter. These are not universal constants; actual failure points will vary based on plastic age, regrind content, and specific boss geometry.

Fastener Size	Typical Application	Safe Torque Range (in-lb)	Safe Torque Range (Nm)	Failure Risk Factor
M2	Small electronics, battery doors	0.5 – 1.0	~0.05 – 0.11	High: ~1.5 in-lb may cause total shear
M3	Main chassis, structural joints	1.5 – 2.5	~0.17 – 0.28	Moderate: Boss cracking likely > 3.0 in-lb
Self-Tapping	Pilot-less plastic posts	1.0 – 1.8	~0.11 – 0.20	Extreme: Risk of heat-induced wall collapse

Note: These values are derived from material yield strength and thread shear area calculations (source: True Geometry, a mechanical engineering resource).

Advanced Recovery: When a Thread Already Stripped

If you've inherited a toy with a stripped hole, avoid the temptation to "just use a bigger screw." A larger screw increases the outer diameter, which often exceeds the wall thickness of the plastic boss, causing it to split.

The 2.5x Wall Thickness Rule

If you are considering a permanent repair like a heat-set thread insert, you must measure the "boss." According to EYC (a manufacturing design guide), the wall thickness should ideally be at least 2.5 times the outer diameter of the insert to prevent the plastic from cracking during the cooling phase.

Chemical "Plastic Weld" Repair (Solvent Method)

For most thin-walled toys, a chemical approach is safer than mechanical inserts:

Material Identification: Use the "Sense-based Plastic Observation Technique" (SPOT)—ABS has a slightly sweet smell when sanded and will dissolve in acetone.
The "Plastic Weld" Fill: Use a scrap piece of the same plastic dissolved in a small amount of acetone to create a "slurry."
The Fill: Fill the stripped hole with this slurry, let it cure for 24 hours to ensure the solvent has fully evaporated, and then drill a new pilot hole.

⚠️ Solvent Safety Warning

Acetone and chemical solvents are hazardous. When performing a "Plastic Weld":

Ventilation: Work only in a well-ventilated area or under a fume hood.

PPE: Wear chemical-resistant gloves (Nitrile) and eye protection.

Child Safety: Keep all solvents and curing parts out of reach of children.

Fire Risk: Acetone is highly flammable; keep away from open flames or sparks.

Compatibility: Do not use solvents near toys with internal batteries or sensitive electronic sensors, as vapors can damage components.

A Warning on Adhesives

Strictly avoid general-purpose "super glues" (cyanoacrylates) on polystyrene toys. As noted in the Wikipedia entry for Acrylonitrile Butadiene Styrene, certain chemicals can cause "crazing"—micro-fractures that spread through the plastic. Always use adhesives labeled specifically for model plastics or non-crazing epoxies.

Safety and Compliance in Toy Repair

When performing repairs, especially on items intended for children, safety is the primary metric of success.

Regulatory Context

The EU General Product Safety Regulation (EU) 2023/988 (Regulatory Text) emphasizes that any modification or repair must not compromise the original safety characteristics. For toys, this includes ensuring that fasteners are secure enough to prevent access to small parts or batteries, which are significant choking and chemical burn hazards.

Trust and Reliability

As highlighted in The 2026 Modern Essential Gear Industry Report (a brand-specific industry whitepaper), engineering trust involves using tools that offer predictable performance. A driver with inconsistent torque or a poorly fitted bit can turn a simple fix into a safety liability.

Best Practices Checklist for Your Next Repair

Inspect the Bit: Ensure you are using the correct geometry (JIS vs. Phillips). A loose fit is the first step toward a stripped head.
Clear the Debris: Use a small puff of air or a soft brush to remove old plastic dust from the hole.
The "Seat" Check: Turn the screw backward by hand until you feel it "drop" into the existing thread before driving it forward.
Set Your Limits: If using an electric driver, start at the lowest torque setting.
Environment Check: Avoid repairing toys in cold environments. Plastics become significantly more brittle at lower temperatures, increasing the risk of the boss snapping.

Summary of Precision Maintenance

Repairing a toy is an act of preservation. By respecting the material limits of the plastic and using tools designed for precision rather than raw power, you can avoid the common pitfalls of the "over-tightener." Remember: the goal is a secure fastener that can be safely removed and replaced in the future.

Disclaimer: This article is for informational purposes only. Toy repairs involving electronics or small parts should be conducted with extreme caution. Always ensure that battery compartments are securely fastened to prevent choking hazards. If a toy is severely damaged, consult the manufacturer's guidelines or a professional repair service.
