Must-Have BMS Safety Protections for Reliable Jump Starting

The Critical Role of the Battery Management System in Emergency Recovery

A portable jump starter is more than just a high-capacity lithium battery in a rugged case; it is a sophisticated power delivery system that manages extreme electrical loads under unpredictable conditions. At the heart of this system lies the Battery Management System (BMS). For the automotive enthusiast or prosumer, the BMS is the "brain" that distinguishes a reliable piece of emergency gear from a hazardous consumer-grade device.

Quick Safety Checklist: 5 Essentials for Your Jump Starter

Before purchasing or using a jump starter, look for these key safety indicators:

Response Time: Does the unit specify sub-millisecond (<1ms) over-current protection? (Critical for protecting vehicle ECUs).
Reverse Polarity Protection: Does it use P-MOSFETs or a "spark-proof" physical barrier to prevent short circuits?
Certification: Is it certified to UL 2743 (the standard for portable power packs) or UL 2054?
Temperature Range: Does the BMS specify a minimum operating temperature (e.g., -20°C / -4°F)?
Manual Override: Does the "Boost" or "Force Start" mode include a clear warning about bypassing safety checks?

In automotive recovery, the BMS serves as the primary arbiter between the stored energy of lithium cells and the sensitive electronics of a modern vehicle. A failure in this system can potentially lead to damage to a vehicle’s Engine Control Unit (ECU). According to technical insights on vehicle computer safety during jump-starting, the risk profile in modern recovery has shifted from physical hazards like sparks to complex electronic surge risks.

This article provides a technical breakdown of the BMS protections often found in automotive-grade gear, grounded in industry standards and manufacturer insights from the 2026 Modern Essential Gear Industry Report (Brand-provided data from Fanttik).

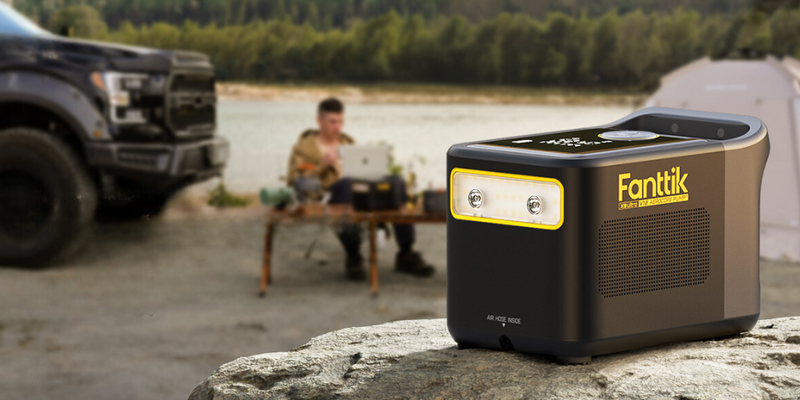

Fanttik portable power station with integrated tire inflator on a campsite rock — portable jump starter and tire inflator for automotive emergency prep

1. High-Speed Over-Current and Short-Circuit Protection

The most demanding phase of a jump start is the initial "cranking" period, where the starter motor draws a massive inrush of current. A robust BMS is designed to distinguish between a legitimate high-current draw and a dangerous short circuit.

The Millisecond Response Requirement

In many consumer electronics, over-current protection might take several dozen milliseconds to trigger. However, in an automotive environment, a short circuit can cause current to spike to levels that risk warping battery tabs or melting internal interconnects. For a BMS to be most effective in high-risk scenarios, its response time is typically targeted within the sub-millisecond range (<1ms).

Sourcing Note: This <1ms threshold is a common engineering target for hardware-level logic gates (comparators) used in high-discharge Li-ion protection circuits, as software-based polling is often too slow to prevent physical damage during a dead-short.

Practical Heuristic: Based on common patterns observed in roadside recovery gear, a response time exceeding 20ms can significantly increase the risk of thermal stress on lithium cells. When comparing products, look for "Hardware-Level Protection" as a sign of this high-speed capability.

Handling "Dead Battery" Scenarios

A common challenge occurs when attempting to jump a completely depleted battery (near 0V). In these cases, the internal resistance of the vehicle's battery is extremely low, which the BMS might mistake for a short circuit. High-quality units include a "Force Start" or "Boost" mode. This mode allows for high-current delivery while maintaining active monitoring to help ensure the unit does not exceed its safe discharge C-rate.

2. Reverse Polarity Protection: The P-MOSFET Barrier

User error—connecting the red clamp to the negative terminal—is a leading cause of jump-starter failure. This creates a massive reverse-current flow that can destroy both the jump starter and the car's alternator.

MOSFETs vs. Diodes

While basic units might use a simple diode to block reverse current, this is often insufficient for high-current automotive applications. Diodes introduce a voltage drop (typically 0.7V), which generates significant heat during a jump start.

Expert engineering, as noted in the EDN guide on front-end protection, favors the use of P-channel MOSFETs. These components act as a physical barrier that only "opens" when the polarity is confirmed as correct. This provides a "low-loss" connection that maximizes the power delivered to the starter motor while offering near-instantaneous protection against incorrect connections.

Component Quality and Degradation

The quality of the MOSFETs is critical. Lower-tier components may have higher internal resistance ($R_{DS(on)}$), leading to heat buildup. Over repeated high-current cycles, these components can degrade. Prosumers should look for units that utilize automotive-grade MOSFETs designed for high-cycle reliability and lower thermal resistance.

3. Thermal Management and Environmental Stress

Lithium batteries are sensitive to temperature. The BMS manages two distinct thermal risks: the heat generated by the jump-start process and the ambient temperature of the environment.

Cold Weather Performance and Under-Voltage Lockout

In cold climates (below 0°C), the internal resistance of lithium cells increases. This phenomenon creates a "voltage sag" during cranking. If a BMS is not specifically tuned for automotive use, it may trigger an Under-Voltage Lockout (UVLO) prematurely, leaving you stranded even if the pack has a "full" charge.

The Feasibility Contract: A Calculation Example

To understand why a unit might struggle in the cold, we use a "Feasibility Contract" formula for battery energy:

$$E_{usable} = E_{pack} \cdot \eta$$

Where:

$E_{pack}$ is the nominal stored energy.
$\eta$ is the efficiency factor influenced by temperature and internal resistance.

Example Scenario: Imagine a jump starter with 60Wh of stored energy ($E_{pack}$).

At 25°C (Room Temp): $\eta$ is roughly 0.90. Available energy = 54Wh.
At -20°C (Extreme Cold): $\eta$ may drop to 0.50 due to increased internal resistance. Available energy = 30Wh.
Result: The unit effectively has half its power. A high-tier BMS accounts for this by adjusting its protection thresholds dynamically to allow the car to start without damaging the cells.

Performance Reference Table

Note: These values are estimated ranges based on common manufacturer specifications for high-discharge Li-polymer cells. Actual performance varies by brand.

Parameter	Typical Value (Room Temp)	Typical Value (-20°C)	Rationale
Internal Resistance	~10-20 mΩ	~50-100 mΩ	Low temp restricts ion flow
Efficiency ($\eta$)	~0.85 - 0.90	~0.40 - 0.60	Voltage sag under load
UVLO Threshold	3.0V / Cell	2.5V / Cell (Adjusted)	Prevents premature shutdown
Peak Current	100% Rated	40-60% Rated	Protects cell chemistry

4. Safe Field Operation: Step-by-Step Guide

To ensure the BMS can do its job, follow these steps during a recovery. If the unit alarms or fails to start after three attempts, stop immediately.

Inspection: Ensure the jump starter has at least 50% charge. Check clamps for debris.
Connection: Connect the RED (+) clamp to the positive terminal first, then the BLACK (-) clamp to a clean, unpainted metal part of the vehicle chassis (or the negative terminal if the chassis is inaccessible).
BMS Verification: Wait for the "Ready" light. If a "Reverse" or "Error" light/buzzer activates, disconnect immediately and check polarity.
The Start: Attempt to start the vehicle for no more than 3–5 seconds.
Cool Down: If it doesn't start, wait at least 2 minutes between attempts to allow the MOSFETs and battery cells to cool.
Disconnect: Once the engine starts, disconnect the BLACK clamp first, then the RED clamp.

When to Stop and Seek Professional Help

If the jump starter cables feel excessively hot to the touch.
If the unit displays a "High Temp" warning.
If the engine "clicks" but refuses to turn over after 3 attempts (this may indicate a seized starter motor or mechanical engine failure).
If you smell smoke or see any swelling in the jump starter casing.

5. Cell Balancing and Long-Term Reliability

A jump starter often sits in a vehicle for months. During this time, individual cells can drift in voltage. If one cell becomes significantly higher or lower than the others, the BMS may shut down the entire unit to prevent a fire hazard during the next charge.

Passive Balancing: The BMS uses small resistors to "bleed off" excess energy from high-voltage cells as heat. Common in most consumer units.
Active Balancing: Transfers energy from the highest-voltage cells to the lowest-voltage ones. This is more efficient and ensures the pack reaches its maximum capacity.

For prosumers interested in the role of cell balancing in extending jump pack life, choosing a unit with robust balancing logic is a key factor for long-term reliability.

6. Architectural Redundancy and Compliance

For automotive-grade reliability, a single point of failure in the BMS should not lead to a safety hazard. This concept is known as Functional Safety, often guided by standards like ISO 26262.

High-end jump starters may employ Dual Microcontroller Monitoring. This involves a primary digital BMS for complex tasks paired with a secondary, simpler analog circuit. If the primary processor freezes, the analog "watchdog" can still trip safety relays to prevent overcharging.

Identifying Quality: Expert Signs

Specified Response Time: Does the manufacturer explicitly mention <1ms protection?
All-Metal Clamps: Indicates the internal wiring and BMS are built for high thermal loads.
Certifications: Look for UL 2743 (Portable Power Packs) or IEC 62133. These indicate the protection circuits have passed standardized stress testing.

Summary of BMS Safety Features

Feature	Primary Function	Potential Risk if Missing
Over-Current	Limits current to safe levels	Cell swelling or ECU damage
Short-Circuit	Immediate cut-off (<1ms)	Potential cable/unit melting
Reverse Polarity	Blocks incorrect connections	Risk to car alternator/electronics
Over-Temperature	Shuts down if cells overheat	Thermal stress/runaway risk
Cell Balancing	Equalizes cell voltages	Reduced lifespan/premature failure

By understanding the "brain" of your jump starter, you can ensure that when the moment of need arrives, your gear performs predictably and safely.

Disclaimer: This article is for informational purposes only and does not constitute professional automotive or electrical advice. Jump-starting involves high currents and flammable gases; always refer to your vehicle's owner manual and the specific safety instructions provided by the tool manufacturer. If you are unsure of the procedure, consult a qualified automotive technician.
