High-Output Battery Charging Cabinet Safety Guide

The Evolution of Workshop Safety: Beyond Simple Storage

The transition of the modern home workshop from corded to cordless power has introduced a significant, often invisible, safety variable: high-output lithium-ion battery management. For the safety-conscious DIYer and the family-oriented maker, the workshop is no longer just a place of creation; it is a localized energy storage environment. High-output batteries, while providing the torque and runtime required for demanding projects, represent a concentrated energy source that requires a methodical approach to storage and charging.

Selecting a locked charging cabinet is not merely about preventing tool theft or keeping curious children away from high-voltage components. It is a safety-critical decision intended to manage thermal hazards and align with emerging safety standards. As noted in the industry white paper The 2026 Modern Essential Gear Industry Report: Engineering Trust in a Cordless World, the maturity of the cordless market means that trust—engineered through visible compliance and robust safety margins—is a primary benchmark for workshop reliability. This guide provides a framework for selecting secure charging enclosures that balance accessibility with risk mitigation.

The Thermal Reality of High-Output Charging

A common oversight in workshop organization is underestimating the cumulative thermal output of multiple batteries charging simultaneously. While a single charger generates manageable heat, a centralized cabinet housing several high-capacity chargers can create a "thermal stack" effect if not properly ventilated.

Modeling the Thermal Load (Worst-Case Scenario)

To understand the potential risks, we can model the energy dynamics within a confined space. This simulation represents a high-demand DIY workshop charging eight high-capacity 18V 5Ah batteries simultaneously.

Parameter	Value	Unit	Rationale/Assumption
Simultaneous Charging Units	8	count	Upper-limit for high-demand DIY workshops.
Average Charging Time	45	min	Based on a standard 2C charge rate.
Heat Dissipation Factor	~15%	%	Estimated energy lost as heat during the charging cycle.
Theoretical Temp Rise	~102	°C	Adiabatic Model: Assumes zero heat escape (fully sealed cabinet).
Estimated Peak Temp	~127	°C	Calculated as Ambient (25°C) + Rise (102°C).

Calculation Note (Theoretical Heuristic): To estimate the risk in your own setup, use this simplified logic: Total Watts × Charge Time (hours) × 0.15 (Efficiency Loss) = Total Heat Energy (BTUs/Joules). In a sealed 15-cubic-foot metal cabinet, this energy can theoretically raise internal air temperatures beyond the safe operating threshold of lithium-ion cells (typically 60°C/140°F) within 30 minutes.

Expert Insight: These figures represent a "worst-case" adiabatic scenario where no heat escapes. In practice, metal cabinets dissipate some heat through their walls, but without active or passive venting, internal temperatures can still reach levels that trigger charger safety shutdowns or accelerate battery degradation.

Practitioner Observation: The 80% Capacity Rule

Based on common patterns observed in workshop thermal management, we recommend a 70–80% load heuristic. If a cabinet’s power strip or internal volume is rated for a specific wattage, loading it only to 80% provides a "thermal buffer." This helps prevent localized hot spots that can occur when chargers are packed too closely together, which often leads to premature battery wear or thermal protection trips.

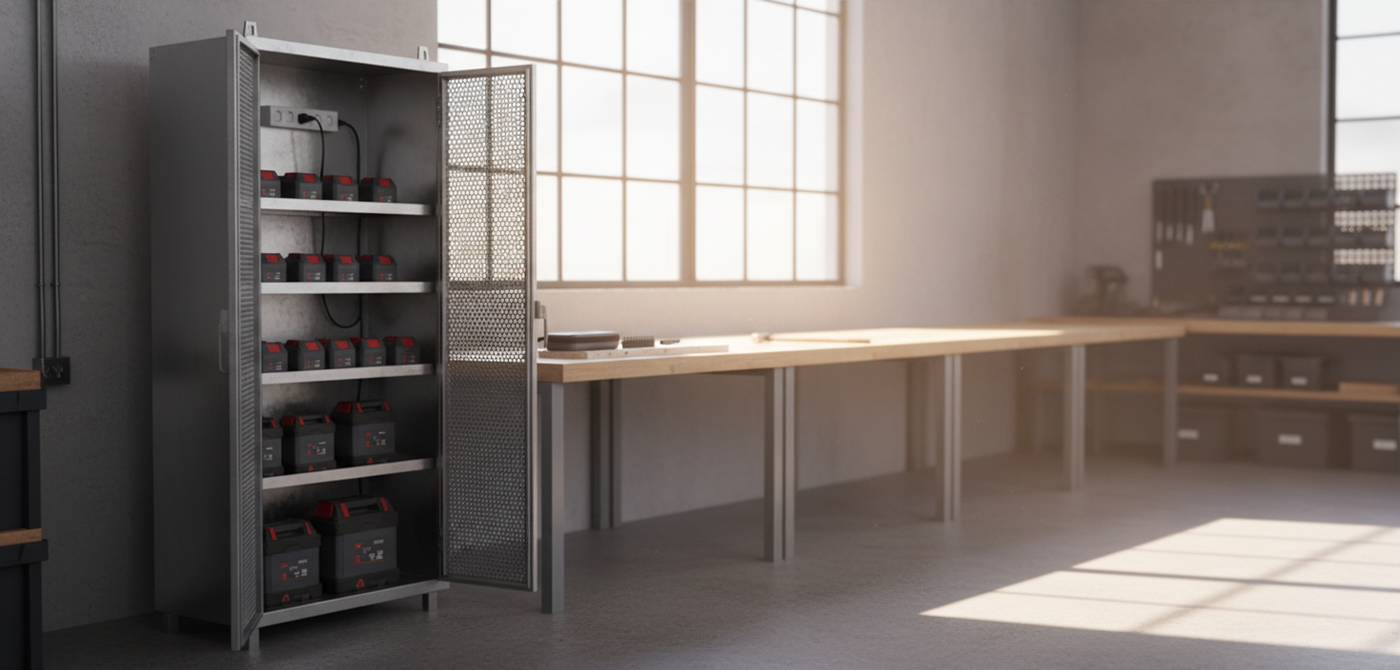

A professional home workshop featuring a secure, organized charging station with visible ventilation and safety labeling.

Navigating Safety Standards and Compliance

When selecting an enclosure, generic labels are often insufficient. For high-output systems, the cabinet should be evaluated against recognized safety benchmarks.

Critical Certifications

According to the NFPA 855: Standard for the Installation of Stationary Energy Storage Systems, a primary goal of any storage enclosure is the containment of potential failures.

UL 9540A: This standard involves testing for thermal runaway propagation. A cabinet designed with these principles is more likely to prevent a fire in one battery from cascading to adjacent units.
UL 94 (Flammability): Enclosure materials should ideally meet UL 94 V-0 ratings, indicating that the material is designed to self-extinguish within seconds if ignited.
EU GPSR Compliance: For users in regions governed by the EU General Product Safety Regulation (EU) 2023/988, manufacturers are obligated to ensure products are designed with consumer safety and traceability at the forefront.

Structural Considerations

While wall-mounting is a popular space-saving tactic, it introduces risks for heavy battery loads. NFPA 855 guidelines often suggest that cabinets exceeding specific energy capacities be floor-standing and properly secured. Furthermore, floor-standing units are better suited for integrated electrolyte spill containment, which helps manage corrosive fluids that can leak from damaged cells.

Engineering the Child-Safe Maker Environment

In a family workshop, the "locked" aspect of a cabinet serves two distinct purposes: theft deterrence and child safety. However, the mechanism must be matched to your specific household needs.

Access Control Selection

Mechanical Keyed Locks: Highly effective for solo workshops. To maintain safety, avoid the "key in the lock" habit, which renders the security feature useless.

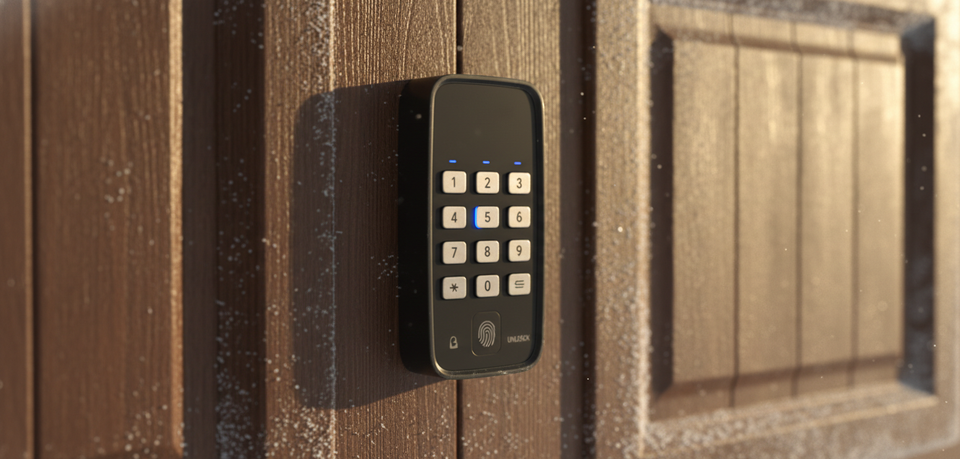

Electronic Keypads: Preferred for shared family workshops. These allow for unique user codes and, in professional-grade models, provide an audit trail to verify when the cabinet was accessed.
Passive Safety Latches: For cabinets housing lower-voltage tools, magnetic or spring-loaded safety latches can provide a hidden layer of protection that is difficult for toddlers to manipulate.

Hazard Containment vs. Access Prevention

A lock alone does not ensure total safety. In a high-output environment, hazard containment is paramount. If a battery fails while charging behind a locked door, the cabinet must be capable of venting gases without the door being forced open by pressure. This is why integrated gas venting is a primary safety feature, while the lock is a secondary access control measure.

Technical Specifications for Ventilation and Cooling

Proper ventilation is the most critical technical requirement for any charging cabinet.

The Ventilation Heuristic

For effective natural convection, a common engineering rule of thumb is to provide at least 1 square inch of vent area per 100W of charging capacity.

Intake: Vents should be positioned low on the cabinet to draw in cooler air.
Exhaust: Vents should be at the highest point to allow heated air to escape.
Active Cooling: If the total charging load exceeds 500W in a confined cabinet, active cooling (fans) providing at least 50 CFM (Cubic Feet per Minute) is recommended to help keep temperatures within the 20–40°C (68–104°F) ideal range.

Material Selection and Placement

Non-Combustible Surfaces: Install charging enclosures on concrete, tile, or metal. Avoid wooden workbenches or carpeted areas.
Clearance Zones: Maintain at least 12 inches of clearance from walls and other combustible materials to prevent a localized thermal event from spreading.
Spill Containment: Select a cabinet with a lipped bottom shelf or a dedicated tray to prevent leaked electrolytes from reaching the workshop floor.

Emergency Response for Battery Failure

In the event of a battery failure (smoke, hissing, or intense heat) within a cabinet:

Evacuate: Immediately move all individuals to a safe outdoor location.
Ventilate: If safe to do so, open windows/doors to the workshop to clear toxic gases, but do not stay in the room.
Call Emergency Services: Notify the fire department. Inform them it is a lithium-ion battery fire, as these require specific suppression tactics (typically large amounts of water for cooling, though the cabinet may contain the initial event).
Do Not Inhale Vapors: Lithium-ion off-gassing can include harmful chemicals like hydrogen fluoride.

Operational Protocols and Maintenance

Monthly: Test the lock mechanism and hinge integrity. Ensure door seals are not degraded.
Quarterly: Inspect all ventilation ports for dust. Use compressed air to clear fans and grilles.
Bi-Annually: Verify temperature monitoring systems. If using a smart cabinet, ensure automatic shutdown thresholds are set (typically around 50°C/122°F).

Summary Checklist for Selection

Thermal Rating: Does the cabinet specify a maximum heat dissipation capacity?
Ventilation: Does it meet the 1 sq in per 100W heuristic?
Compliance: Is it designed with UL 9540A or NFPA 855 principles in mind?
Material: Is it constructed of non-combustible materials (UL 94 V-0)?
Access: Does the lock provide the necessary level of supervision (e.g., electronic audit trail)?
Placement: Is there a non-combustible location with 12-inch clearances?

By prioritizing these engineering factors, you transform your charging station from a simple storage box into a robust safety enclosure that protects your gear and your family.

Safety Disclaimer: This article is for informational purposes only and does not constitute professional engineering, fire safety, or legal advice. Battery charging and storage involve inherent risks of fire and explosion. Always follow the manufacturer's instructions for all tools, chargers, and batteries. Consult with a qualified fire safety professional or electrician before installing high-capacity charging systems in a residential environment.
