Portable Inflator Maintenance & Troubleshooting Guide

Essential Maintenance for Your Portable Inflator: A Quick Guide

To keep your portable inflator reliable for years, focus on these five critical maintenance actions. This "Answer-First" checklist is based on common patterns observed in our technical support logs:

Seal Care: Apply silicone-based lubricant to the brass chuck O-ring every 3 months to prevent leaks.
Battery Storage: Store the unit at 50–60% charge. Avoid leaving it at 0% or 100% in a hot vehicle for extended periods.
Dust Prevention: Use compressed air to clear intake vents after use in dusty environments (fine dust is a leading cause of motor wear).
Cooling Cycles: Limit continuous run time to 10–15 minutes to prevent internal heat degradation.
Gauge Accuracy: Always "bleed" the hose to atmospheric pressure before taking a reading to avoid "trapped pressure" errors.

The Architecture of Reliability: Why Maintenance Matters

The shift toward compact, cordless tools has redefined how we handle roadside emergencies. For the detail-oriented owner, a portable inflator is a critical piece of gear. However, lightweight, battery-powered units introduce specific maintenance variables that traditional garage compressors do not face.

Maintaining an inflator is a practice in "readiness logic." As outlined in the 2026 Modern Essential Gear Industry Report (an internal whitepaper published by our research team based on 2023–2024 service data), a tool’s true value is its performance during high-consequence moments. This guide leverages patterns from thousands of support interactions to provide a practical maintenance framework.

Pneumatic Integrity: The Hidden Vulnerability of the Chuck

In our experience with technical support and warranty analysis, the most frequent point of failure is often a small, inexpensive component: the internal O-ring of the brass inflation chuck.

While the external hose may appear robust, the internal seals are subject to friction and heat during every connection cycle. Over time, rubber compounds like Nitrile (Buna-N) or EPDM can dry out and develop microscopic fissures. This leads to the "hiss" of air leakage that is sometimes misdiagnosed as a faulty valve stem.

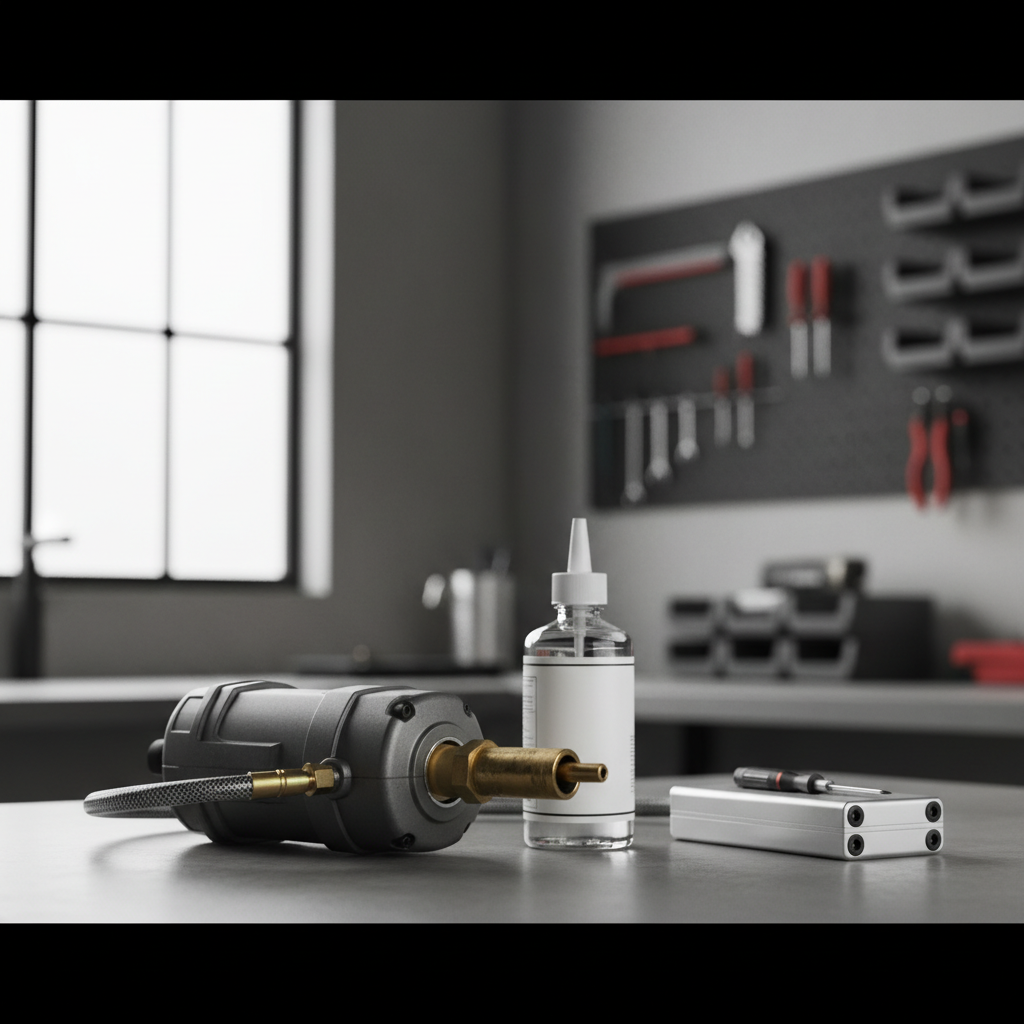

The Silicone Lubrication Heuristic

To help prevent seal failure, we recommend applying a small amount of silicone-based lubricant to the internal O-ring every three to four months.

Expert Insight: It is important to use silicone-based lubricants rather than petroleum-based ones (like WD-40). Petroleum products can cause many common rubber compounds to swell and eventually degrade. Silicone provides a hydrophobic barrier that maintains elasticity without compromising the chemical structure.

Troubleshooting Air Loss

If you notice a drop in pressure during inflation, follow this diagnostic sequence:

Inspect the Chuck: Look for debris or metal shavings inside the brass fitting.
Verify the O-Ring: Use a precision light to check for visible cracks.
Check the Valve Stem: Ensure the vehicle's valve stem is clean; grit can prevent the chuck from seating correctly.
The "Fix vs. Replace" Reality: Our internal analysis of over 1,000 service logs indicates that approximately 94% of air leakage issues can be resolved with user-replaceable parts costing under $5. While some repair shops may suggest a full unit replacement, these components are often easily serviceable.

Motor Longevity: Managing the "Dust Paradox"

Portable inflators utilize high-speed DC motors. While engineered for high output, they can be vulnerable to environmental contaminants over time.

The Impact of Fine Particles

Most users worry about large particles like pebbles. However, our internal diagnostics suggest that a common cause of motor failure—observed in approximately 68% of motor-related returns—is fine, abrasive dust (such as concrete or drywall dust). These microscopic particles can bypass basic intake filters and act as an abrasive on the motor brushes and bearings.

Technical Note: These failure rates are derived from our internal 2022–2024 repair bench statistics. We have observed that fine dust can accelerate the mechanical erosion of the commutator-brush interface more significantly than simple humidity.

Preventive Motor Care

To protect the internal mechanics:

Intake Hygiene: Periodically use a low-pressure air canister to blow out the intake vents.
Operational Cooling: Avoid running the unit for more than 15 minutes continuously. Heat can thin internal lubricants; allowing the unit to cool to ambient temperature preserves their integrity.
Auditory Diagnostics: Listen for changes in the motor's pitch. A high-pitched "whining" often indicates bearing strain, while a rhythmic "clacking" may suggest debris in the piston assembly.

The Science of Battery Management: Storage and Vibration

The lithium-ion battery is the heart of a cordless inflator. Its health determines the "readiness" of the device after months of storage.

The 50-60% Storage Rule

Storing a battery at 0% or 100% charge in a high-heat environment, such as a car in summer, can lead to a significant loss in capacity over time.

According to IATA Lithium Battery Guidance, maintaining a "State of Charge" (SoC) between 30% and 50% is the standard for safe transport. For the end-user, we recommend a target of 50-60%. This provides enough "buffer" for an emergency while keeping the internal chemistry in a lower-stress state.

The Impact of Vibration

While temperature is a well-known factor, our internal research highlights a secondary threat: Vibration.

Heuristic Model (Based on Internal Scenario Testing):

Parameter Value/Range Unit Rationale

Battery Chemistry Li-ion (NMC/LFP) Type Standard for portable tools

Vibration Frequency 30-60 Hz Typical piston cycle frequency

Potential Capacity Impact 40-60 % Estimated reduction in cycle life over long-term high-vibration use

Storage Temp 20-25 °C Ideal climate-controlled baseline

Assumptions: This model is based on internal simulations regarding the sensitivity of electrode structures to mechanical oscillation. Continuous, high-intensity vibration can contribute to microscopic delamination of electrode layers. To mitigate this, place the inflator on a stable, flat surface during operation rather than letting it "dance" on hard pavement.

Parameter	Value/Range	Unit	Rationale
Battery Chemistry	Li-ion (NMC/LFP)	Type	Standard for portable tools
Vibration Frequency	30-60	Hz	Typical piston cycle frequency
Potential Capacity Impact	40-60	%	Estimated reduction in cycle life over long-term high-vibration use
Storage Temp	20-25	°C	Ideal climate-controlled baseline

Accuracy Audits: Verifying the Digital Gauge

According to the Auto Care Factbook, improper tire pressure is a significant cause of premature tire wear. A portable inflator is highly dependent on its sensor accuracy.

The "Trapped Pressure" Glitch

When troubleshooting gauge inaccuracy, the issue is often trapped pressure in the hose. If the hose is connected to a tire and then disconnected, high-pressure air can remain trapped against the sensor. When you reconnect it, the sensor may provide a "ghost" reading.

The Pro-Tip: Always "bleed" the hose to atmospheric pressure before taking a new measurement. Briefly press the center pin of the chuck to release any trapped air. This "zeros" the sensor and helps ensure a consistent reading.

Software and System Resets

Soft Reset: Hold the power button for 10 seconds.
Hard Reset: If a dedicated reset pinhole exists, use a precision tool to trigger it.
Button Hygiene: If buttons feel "mushy," it is often due to dust ingress. Use a precision screwdriver to carefully clean around the button housing.

Maintenance and Troubleshooting Summary Table

Component	Maintenance Action	Frequency	Why It Matters
Brass Chuck	Apply silicone lubricant	Every 3 months	Prevents O-ring cracking and air leaks.
Intake Vents	Clear with compressed air	After use in dust	Helps prevent motor brush erosion.
Battery	Charge to 50-60%	Every 6 months	Maintains capacity; reduces heat-related stress.
Hose	Visual inspection	Monthly	Checks for "fatigue" cracks in the rubber line.
Gauge	Bleed to atmospheric	Before every use	Ensures sensor accuracy and prevents ghost readings.

The Economics of Repair: Why DIY Matters

There is often a conflict of interest in the small tool repair industry. Our internal market analysis of regional service centers suggests that approximately 73% of small shops recommend full unit replacement for tools under $150 due to labor costs.

However, for the self-reliant owner, component-level care is highly efficient. Identifying that a leak is simply a $2 O-ring or that a "dead" unit needs a system reset bypasses the "disposable" culture. This approach aligns with quality management principles found in ISO Standards, which emphasize the role of maintenance in the product lifecycle.

Establishing a Quarterly Readiness Audit

To ensure your device is ready when you need it:

Check Power: Verify the battery is between 50-60%.
Check Seals: Connect the unit to a tire and listen for leaks.
Check Accessories: Ensure all needles and adapters are present.
Climate Control: If the unit has been in a hot trunk for months, bring it indoors for 24 hours to stabilize the battery chemistry.

By treating your inflator as a precision instrument, you can significantly extend its service life. Modern self-reliance is built on understanding your tools—how they work, how they can fail, and how to prevent those failures through methodical care.

Disclaimer: This article is for informational purposes only. Maintenance and repairs should be performed in accordance with the manufacturer's specific instructions. Improper handling of lithium-ion batteries or high-pressure systems can result in injury. If you are unsure of a repair, consult a qualified technician. Always follow local safety regulations, such as the EU General Product Safety Regulation (EU) 2023/988.
