Mountain Bike Tubeless Setup: Seating Tire Beads with a High-Volume Electric Pump

Learning how to seat tubeless mountain bike tire bead with portable pump setups requires rapid airflow rather than high final pressure. A portable electric pump can seat a tight bead when the tire and rim are properly prepped and the pump delivers a sudden volume burst to snap the bead onto the rim shelf.

If controlled inflation does not pop the bead into place, stop escalating pressure to protect lightweight rims, reset the tire with soapy water, and switch to a dedicated air booster or shop compressor.

Key Takeaways

• Rapid air delivery, not maximum PSI, is what pops a tubeless bead onto the rim shelf.
• Prep the wheel first: confirm tubeless compatibility, secure the valve, and lubricate a tight bead before connecting the pump.
• Inflate in short, controlled bursts and stop as soon as the bead is seated instead of chasing a pressure number.
• Confirm seating by checking the molded line evenly around both sides of the rim, not by sound alone.
• If the bead stays low after one careful retry, reset and lubricate again or move to a higher-volume air source.

Can a High-Volume Electric Pump Seat a Tubeless Bead?

Yes, but only under two conditions: the tire-and-rim combination has to be a genuine tubeless system, and the pump needs enough rapid airflow to push the bead onto the rim shelf in one quick burst. A pump's headline maximum PSI describes how much pressure it can eventually build, not how fast it delivers that first burst of air, and those are two different specifications. A high PSI ceiling alone doesn't prove a pump can pop a stubborn bead, so check the manufacturer's verified airflow specifications rather than assuming capability from pressure numbers.

The physical event that seats a bead is airflow, not final pressure. The goal is to quickly seat a tubeless bead by getting a high volume of air into the tire fast; a slow trickle, even at high eventual pressure, tends to leak out around a loose bead before it seats. If your setup is compatible and prepped correctly, a high-volume electric pump is worth trying before reaching for a shop compressor. If a controlled attempt leaves the bead low, that is the signal to stop increasing pressure and switch to a higher-volume source instead.

How to Prepare the Wheel and Tire

Before connecting any pump, confirm the tire, rim, rim tape, and valve are all built as a matched tubeless system; pairing a tubeless-ready tire with a rim that isn't taped or drilled for tubeless use is a common reason a bead won't seat at all. Seat both beads by hand into the center channel of the rim so neither side rests against the rim wall, and check that the valve stem is snug and doesn't wiggle in the rim bed.

If one section of the bead feels tight or won't drop into the channel, work some soapy water around that area. The lubrication lets the bead slide into place instead of binding against the wall during inflation. Per Park Tool's tubeless installation guide, removing a removable valve core before inflating can also improve airflow through a narrow valve stem, which matters more with a lower-volume pump than with a shop compressor. A locking hose adapter that seals tightly at the valve can help prevent air loss during this step, especially on a valve that's already marginal.

Don't start the seating attempt if the valve is loose, the components aren't a genuine tubeless match, or you can see damage to the tire or rim bead hook. Fix that first; no amount of airflow will seat a bead onto a mismatched or damaged rim.

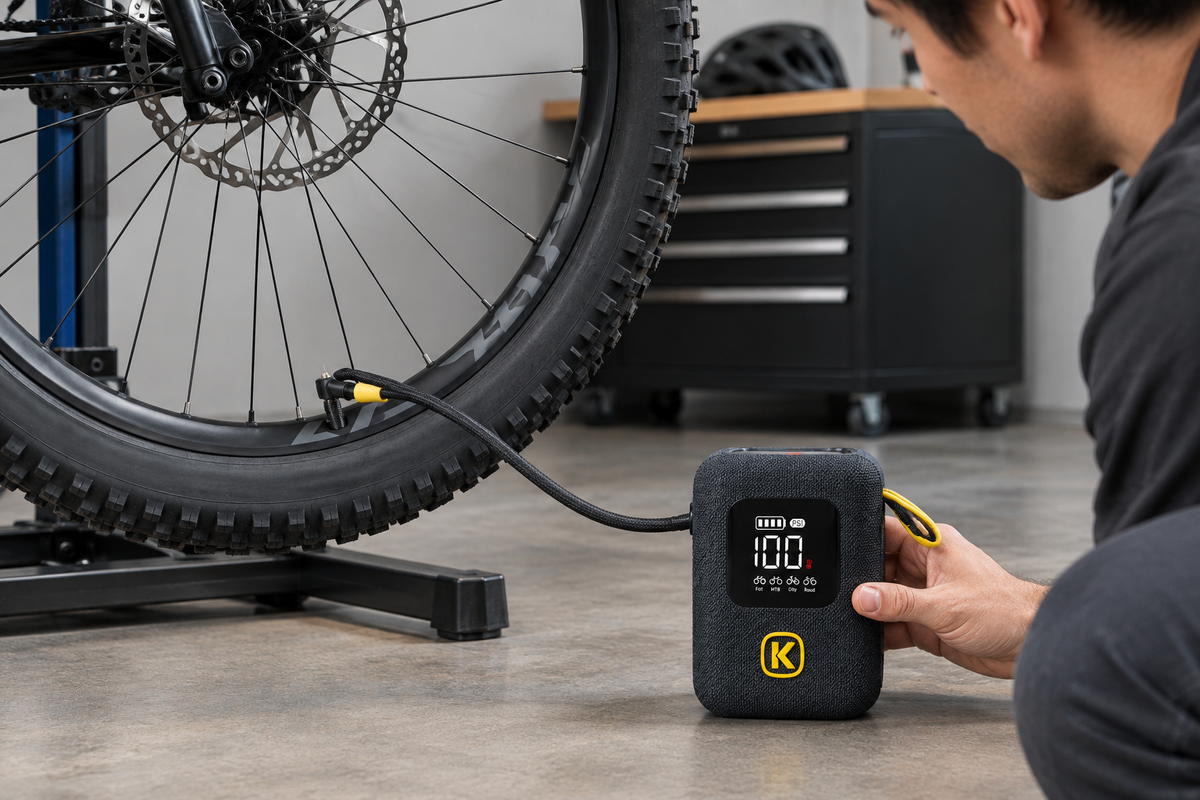

How to Use the Electric Pump to Seat the Bead

With the wheel prepped, the seating sequence itself is short: connect the pump, deliver controlled bursts of air, and stop the moment the bead pops into place.

1. Stabilize the wheel on the ground or in a stand so it can't roll or twist while you work at the valve.
2. Attach the pump to the valve using the correct fitting, similar to the connection on a portable tire inflator, and make sure the seal is airtight without disturbing the bead you just positioned.
3. Start inflation in short, controlled bursts rather than one continuous fill, so you can watch the tire and stop the instant the bead grabs.
4. Watch both sides of the tire as air enters. You may hear a series of pops as the bead locks into the rim shelf, but treat that sound as a hint, not confirmation.
5. Stop adding air as soon as both beads appear seated all the way around the rim; continuing to inflate past that point risks overpressure without improving the seat.
6. Only after the bead is confirmed seated should you deflate down to your final riding pressure. Seating pressure and riding pressure are not the same number.

How to Confirm the Bead Is Fully Seated

The bead is seated when the molded installation line sits at an even, consistent distance from the rim wall all the way around both sides of the tire, not just where you can see or hear it easily. Audible pops are a useful hint, but sound alone isn't reliable confirmation, since a bead can pop on one side while staying low elsewhere. Check the gap between the line and the rim edge at several points around the wheel before you trust it.

If the line dips toward the rim channel anywhere, that section isn't fully engaged, even if the tire is already holding pressure. Don't respond by adding more air; deflate, reset that section, and repeat the preparation steps covered earlier.

Once the bead is confirmed seated everywhere, drop to your normal riding pressure. Stay at or below whichever is lower, the pressure marked on the tire sidewall or the rim, since exceeding the tire or rim maximum risks bead damage during seating or later riding. That ceiling is separate from whatever pressure it took to pop the bead in the first place.

What to Do When the Bead Will Not Seat

If a controlled attempt doesn't seat the bead, work through this order before trying again: inspect, reset, retry once, then change your approach.

1. Check the valve and bead position first. A loose valve or a bead that slipped out of the center channel during handling is a more likely explanation than a weak pump.
2. Deflate completely and reset the low section back into the rim channel by hand.
3. Lubricate that section with soapy water and reinflate using the same controlled, short-burst approach.
4. If the bead still won't seat evenly after one careful retry, treat that as this pump's limit for this tire-and-rim combination rather than a reason to keep raising pressure.
5. Switch to a higher-volume air source, such as a shop compressor or a tire-seating booster, or bring the wheel to a shop if you suspect damage to the tire, rim, rim tape, or valve.

FAQs

Does a higher maximum PSI mean an electric pump can seat a tubeless bead?

Not by itself. Maximum PSI tells you how much pressure a pump can eventually build, not how quickly it delivers that first burst of air, which is the property that actually pops a bead onto the rim shelf. A pump with a lower PSI ceiling but stronger initial airflow can outperform a higher-PSI pump that delivers air slowly. If you're comparing pumps, look for documented airflow or bead-seating performance rather than relying on the PSI number alone. If a pump can't seat the bead under controlled inflation, switch to a higher-volume air source instead of chasing a higher pressure setting.

Should you remove the valve core before seating a tubeless bead?

Yes, removing the valve core opens an unobstructed path for air to enter the tire cavity rapidly. Because portable electric pumps have smaller displacement cylinders than shop compressors, eliminating valve resistance maximizes the initial volume burst needed to drive the tire bead onto the rim shelf. Once both beads snap into place, let the tire deflate, reinstall the valve core securely, and inflate the tire to your target riding pressure.

What should you do if the bead pops audibly but sits unevenly?

Do not add more air to force an uneven bead out. A loud pop often occurs when only a portion of the bead locks onto the shelf, leaving other sections trapped in the drop channel. Exceeding the rim or tire pressure limit can blow the tire off the rim or crack lightweight alloy and carbon walls. Instead, fully deflate the tire, apply soapy water along the unseated edge to reduce friction, and attempt inflation again.
