How to Set Up Ventilation for a Small Soldering Workspace

To ventilate a small soldering workspace, catch the fumes right where the iron meets the joint. Then send that air outdoors, so it moves away from your face and out of the room. Start by reading the safety data sheets (SDS) for your solder and flux, and turn the ventilation on before the iron touches metal.

An open window or a room fan moves air around the room, but that is not the same as capturing fumes at the joint. The setup below follows university safety guidance for manual electronics-style soldering at a bench. It is not a universal design for every soldering process, so stained-glass, plumbing, and jewelry work need their own guidance.

Choose a Ventilation Path for Your Soldering Task

Before you buy or rearrange anything, figure out what you are soldering and where the captured air will go. Those two answers decide which setup fits your bench.

1. Name the process and materials. Write down the job (for example, hand-soldering wires or circuit boards with an iron), the solder you use, and the flux. This example covers manual soldering only. If your work is stained glass, plumbing, or jewelry, find guidance written for that process before you copy this setup.
2. Read the SDS for both the solder and the flux. Columbia's solder and flux safety guidance tells users to review the SDS for the solder and flux being used, and to turn ventilation controls on before soldering starts. The SDS is where hazards and recommended controls for that specific product are listed. Flux chemistry varies, and our guide to soldering flux types explains how rosin, water-soluble, and no-clean flux differ on the bench.
3. Plan for local capture with outdoor exhaust. Columbia's guidance states that venting to the outside is preferable. In plain terms, a hood or arm pulls fumes away from the joint, and a duct carries them out of the building. That is the clearest way to move fumes out of the workspace, not just around it.
4. Treat room-return filtration as a separate route. Some units filter the air and blow it back into the room. They do not exhaust anything outdoors. MIT's guidance for room-return extraction units says they should have both a carbon filter and a HEPA filter. Columbia describes HEPA filtration for fumes (condensed particulate) plus chemical filters for vapors. These are each institution's own descriptions. Neither one makes every recirculating unit suitable for your solder, flux, or process.
5. Add extraction and upkeep for rosin-based flux. If your flux is rosin-based, UK HSE rosin-flux extraction guidance recommends fume extraction and regular maintenance of the extraction system. That advice is written for UK workplaces and rosin flux specifically. Still, it is a useful reminder that an extractor you never clean is a weak part of the setup.

Place the Capture Hood Close to the Soldering Point

Put the capture inlet right at the soldering zone, and keep your head out of the rising plume. Fumes move up and away from the hot joint, so sources emphasize local capture directly near the joint rather than placing an inlet far away across the bench or overhead near the ceiling.

MIT's manual-soldering guideline says an exposure control device should extract fumes and gases from the soldering zone. Its outdoor-exhaust snorkel example is placed about 5 inches from the soldering point. Treat that figure as MIT's example for that snorkel setup. It is not a distance that works for every hood, fan, or bench. Columbia's guidance likewise describes local exhaust as a way to remove fumes from your breathing zone, which is the area around your nose and mouth.

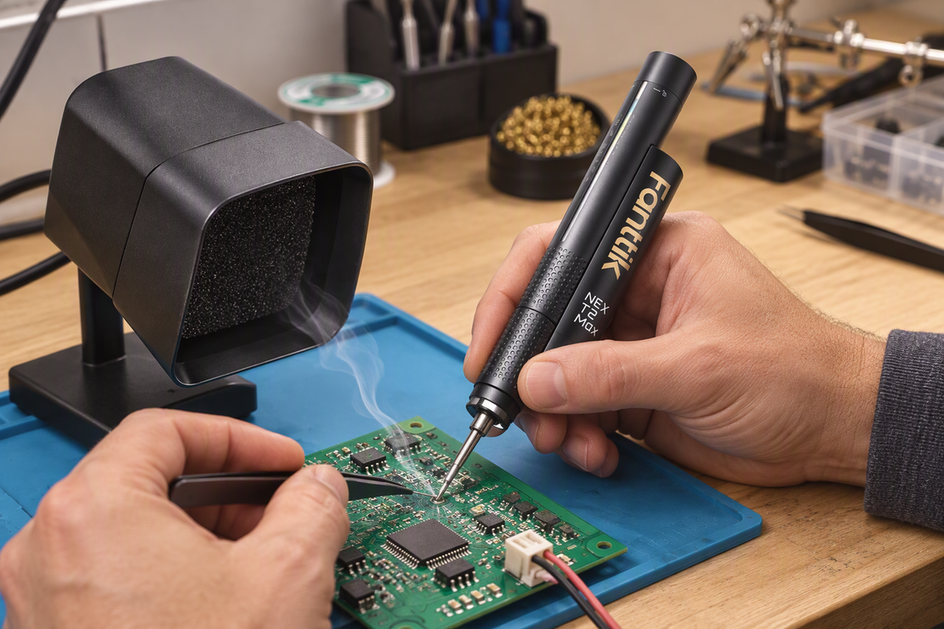

In practice, position the capture hood right near the joint while keeping your head outside the rising plume of fumes. Keep the inlet close as you work. Move it when you switch to a new part of the board, instead of leaning into an area where fumes can rise toward your breathing zone.

The type of device matters too. For rosin-based solder-flux fume, UK HSE describes extraction tradeoffs: a soldering booth is best, on-tip extraction blocks up swiftly and needs frequent cleaning, and bench-mounted boxes are of limited use unless fitted with a HEPA filter. If you rely on on-tip extraction, plan to clean it often. If you use a bench-mounted box, check what filter it actually holds before you count on it.

Check the Air Route Before You Solder

Run a quick setup check each time before the iron heats up. This check confirms that your arrangement matches the documented controls. It does not measure exposure or prove the system is working well, and none of the cited guidance provides a home test that does.

• Ventilation is on first. Start the extraction before you start soldering, as Columbia's pre-start ventilation guidance directs.
• The inlet is at the joint. The hood or arm sits close to the soldering point rather than across the bench, with your breathing zone clear of the rising plume.
• You can trace where the air goes. Follow the path from the inlet. It should end either outdoors through a duct or in a room-return unit whose filters suit your solder and flux, based on the SDS and the filter guidance above.
• Room airflow is not counted as capture. An open window or a fan may freshen the room, but it does not show that fumes are being pulled away at the joint. Don't let a breeze or a fading smell stand in for local capture.
• Filters and inlets are maintained. Clean on-tip nozzles and replace filters on the schedule the unit's maker gives, so the route you traced is still open.

If you cannot confirm capture at the joint, or you cannot tell where the air ends up, stop soldering until you fix it. Columbia's guidance says operations without ventilation or air filtration should be reviewed by its safety office before proceeding. At home, the matching step is to get guidance specific to your process before you continue. Our compact workshop management tips can help when you are rearranging a tight room so a duct or extraction arm has a clear path.

FAQs

Is an open window enough ventilation for soldering?

The cited soldering guidance does not treat an open window as a substitute for capturing fumes at the source. A window can bring fresh air into the room, but the documented approach puts a capture inlet at the joint and sends that air outdoors. You can use a window together with local capture, as long as you don't rely on it alone.

Does a recirculating fume extractor do the same job as venting outdoors?

No. A recirculating unit filters the air and sends it back into the room, while an outdoor exhaust removes it from the building. MIT's filtration guidance calls for both carbon and HEPA filters on room-return extraction units, and Columbia lists outdoor venting as preferable.

How often should I clean a soldering fume extractor?

Follow the maintenance schedule for your specific unit. For rosin-based flux fume, UK HSE recommends maintaining extraction systems regularly. It also notes that on-tip extraction blocks up swiftly and needs frequent cleaning, so tip-mounted designs need the most attention.

Can I use this setup for stained-glass, plumbing, or jewelry soldering?

Not automatically. The guidance in this article covers manual soldering at a bench, and other processes use different materials, heat sources, and fluxes. Read the SDS for your specific solder and flux, and find ventilation guidance written for that process before you reuse this layout.
