How to Choose a Drill Bit for a Wood Screw Pilot Hole

For a #8 wood screw, one fastener seller's chart lists a 7/64-inch drill bit for softwood and a 1/8-inch bit for hardwood. Those numbers come from that chart, so treat them as a solid example rather than a universal rule. Either way, the bit is sized to the screw's core, the solid shaft inside the threads, not to the outside of the threads.

That difference decides whether the screw holds. A bit that matches the outside thread diameter can leave too little wood for the threads to grip. Start with a chart for your screw, compare the bit to the core, and then look at the wood type and where the screw will land.

What Size Drill Bit Should You Use for a Wood Screw Pilot Hole?

Use the chart row that matches your screw gauge and your wood. For a #8 screw, the chart's #8 pilot-hole recommendations from Albany County Fasteners split by wood category like this:

The table shows something useful even if you aren't driving a #8 screw. The same screw gauge gets two different bits depending on the wood, and the harder wood gets the larger one. A practical guide from Ana White makes the same general point: hardwood usually needs a slightly larger pilot hole than softwood.

So your first decision is simple. Figure out whether you're working in softwood or hardwood, and then read the matching column. If you can't tell, test the bit on a scrap of the same board before you drill the finished piece. The next section explains how to do that.

Keep the scope in mind. These values belong to this chart's #8 row. Other gauges have their own rows, and a different screw design may come with its own maker's chart. When you have the chart for your exact fastener, use it instead of borrowing the #8 numbers.

How to Match the Bit to the Screw's Core

Size the bit to the screw's core, not to its outside thread diameter. The core is the solid, thread-free shaft at the center of the screw. The outside diameter is the full width measured across the tips of the threads, and it is always larger.

The reason is how a screw holds. The threads have to cut into wood and stay there. If the pilot hole is as wide as the threads, the threads have little or nothing left to bite into. If the hole roughly matches the core, the shaft slides in with less force, and the threads still have fresh wood to grip. All Points Fasteners describes approximate pilot sizing: the pilot hole is about the diameter of the screw without its threads. "About" matters here. This is a working rule, not a precise formula.

For a traditional wood screw, you can check this by eye. Ana White's guide describes a visual sizing method: pick a bit close to the diameter of the screw's solid center while leaving the threads visible. Here's how to put the whole method together:

1. Find the chart for your fastener. Look for the screw maker's pilot-hole chart first, since it's written for that exact screw.
2. Match gauge and wood. Read the row for your screw gauge and the column for softwood or hardwood.

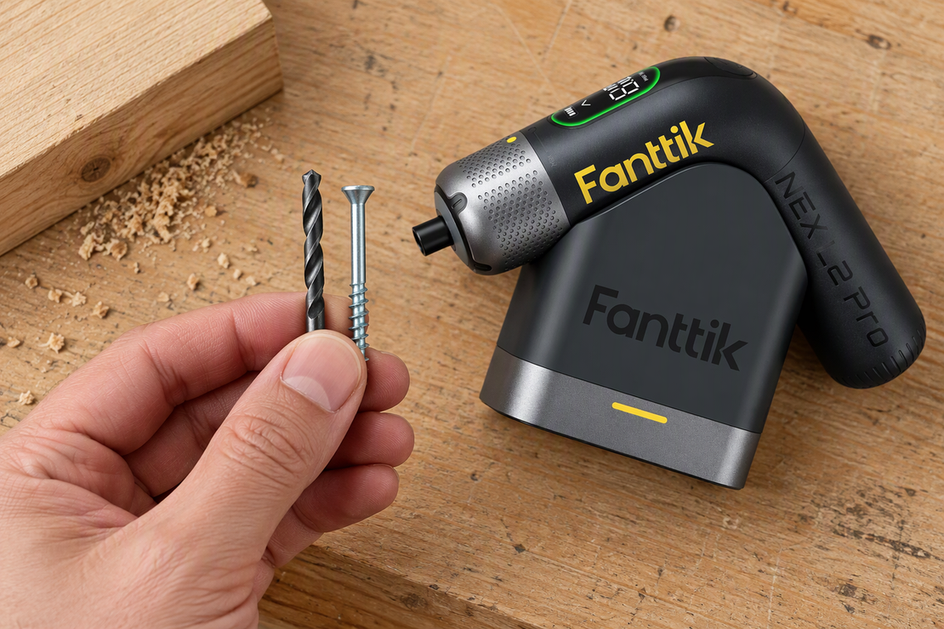

3. Hold the bit in front of the screw. The bit should cover the solid core, and you should still see the threads sticking out on both sides. If the bit hides the threads, it's too big.
4. Test on scrap. Drill and drive one screw in an offcut from the same board. Watch for splitting as the screw goes in.

Steps 1 and 4 follow the guide's advice to check the fastener maker's chart and test in an offcut. The offcut test is worth the extra minute. It shows how this bit, this screw, and this exact piece of wood work together before your finished part is on the line. If the scrap splits, reassess the bit choice before you drill the real piece.

How Do End Grain and Screw Design Affect the Bit Choice?

Predrilling can be useful in end grain and helpful near board edges, though available sources do not establish whether these locations require a different bit diameter. Instead of assuming hole size changes, use your screw's standard chart recommendation and confirm you do not skip predrilling.

End grain is the cut face at the end of a board, where you're looking at the ends of the wood fibers. The guide's end-grain pilot-hole guidance from All Points Fasteners says pilot holes can be especially useful there. Ana White's guide also gives advice that predrilling remains helpful near board ends and edges. Neither source says to go larger or smaller for these locations. So don't guess at an adjustment. Pick the bit the same way you would anywhere else, and make sure you actually drill the pilot hole instead of skipping it.

Here's an example. Say you're attaching a shelf cleat with a screw that lands about an inch from the end of a pine board. The location is a good reason to predrill. The bit still comes from your screw's chart and the softwood column. If you're worried about that spot, run the offcut test near the end of a scrap so the test matches the real job.

Screw design works similarly. The visual check above applies specifically to traditional wood screws. Screws with modern or specialized thread patterns and shank geometries can have different core proportions, and the #8 values earlier in this article do not automatically carry over. For those fasteners, consult the specific manufacturer's pilot-hole chart, as available evidence does not provide a universal sizing rule or substitute visual check for non-traditional designs.

FAQs

Does the screw's gauge number tell me which bit to use?

Not on its own. The gauge, such as #6 or #8, tells you which row of a pilot-hole chart to read. The bit size in that row can still change with the wood category, and different charts or screw makers can list their own values. You need the gauge, the wood type, and the chart that fits your screw.

What happens if my pilot hole matches the outside of the threads?

The threads end up with little wood left to cut into, so the screw can't grip well. That's why the pilot hole is sized close to the solid core instead. If you've already drilled a hole that's too wide, test your next choice on scrap before you drill another hole in the finished piece.

Is a pilot hole the same thing as a countersink?

No. A pilot hole is the narrow hole that guides the screw's shaft and threads. A countersink is a cone-shaped recess at the surface that lets a flat-head screw sit flush. Furniture and trim work sometimes calls for both, and our guide to screwdriving and countersinking for furniture covers that step.

How do I keep the bit from wandering off my mark when I start the pilot hole?

The bit tip needs a seat when it first touches the wood. A punched mark, a center drill, and a well-clamped workpiece all help keep the hole where you marked it. Our article on why drill bits walk explains each fix.
