Accuracy Audits: Verifying Digital Gauges with Manual Tools

The Mechanics of Precision: Why Digital Gauges Require Methodical Verification

The transition from analog mechanical gauges to digital pressure sensors has fundamentally altered how automotive enthusiasts and DIY technicians maintain vehicle performance. Digital tire inflators offer undeniable convenience, providing high-resolution readouts and automated shut-off features that mitigate the risk of over-inflation. However, for the advanced user, this digital convenience introduces a "transparency gap." Unlike a mechanical Bourdon tube gauge—where a bent needle or cracked glass provides an immediate physical indicator of failure—a digital sensor can suffer from "silent drift."

Digital sensors, typically utilizing piezoresistive technology, can provide plausible but inaccurate readings due to internal component degradation or environmental stress. This phenomenon, known as sensor drift, often goes undetected because the device continues to display a clean, stable number on its LED interface. To maintain the rigorous standards required for high-performance driving or long-term vehicle health, a methodical accuracy audit is essential. This process involves cross-checking digital equipment against certified manual reference tools to establish a traceable chain of reliability.

The Physics of Pressure: Understanding Sensor Drift and Environmental Stress

To verify accuracy, one must first understand the mechanisms that cause a digital gauge to deviate from its factory calibration. Most portable tire inflators rely on a silicon-based pressure transducer. This transducer converts physical pressure into an electrical signal. While efficient, these components are sensitive to the extreme thermal cycles common in automotive environments.

Thermal Expansion and Signal Skew

Temperature is the primary driver of measurement error. According to technical observations from field maintenance, a 20°F change in ambient temperature can introduce an approximately 1 PSI error in the reading before any physical inflation occurs. This is not a failure of the device, but a result of the thermal expansion coefficients of the sensor materials. In cold environments—specifically below 40°F (4°C)—a consistent 2-3 PSI deviation is often the first indicator of sensor drift rather than a mechanical pump failure.

The "Glove Box" Pitfall

A common mistake among vehicle owners is storing precision inflators in a vehicle's glove box or trunk. These areas experience the most aggressive temperature swings, reaching over 140°F in summer and dropping to sub-zero temperatures in winter. These cycles accelerate the aging of the sensor's diaphragm. For long-term calibration stability, storing the device in a climate-controlled garage is a high-impact adjustment that significantly extends the lifespan of the internal electronics.

Logic Summary: This analysis of environmental impact assumes a standard piezoresistive sensor architecture. The estimated 1 PSI per 20°F shift is a heuristic derived from common thermal expansion models in consumer-grade electronics (not a controlled laboratory study).

The Traceability Hierarchy: Manual Gauges vs. Digital Standards

In the world of metrology, no tool is "perfect." Accuracy is instead defined by its place in a traceable hierarchy. While digital gauges are often marketed as more accurate due to their high-resolution displays (e.g., 0.1 PSI increments), a high-resolution display does not equate to high-accuracy sensing.

The Role of NIST Handbook 44

In the United States, the NIST Handbook 44 (Weights & Measures) provides the framework for measuring device requirements, including tolerances for pressure-measuring instruments. Professional-grade manual gauges, often featuring a large 2.5-inch or 3.5-inch dial, are designed to meet specific "Grade A" or "Grade AA" standards, which define the allowable margin of error across the scale.

Digital Reproducibility vs. Manual Visibility

Research suggests that while digital gauges reduce human reading error (parallax error), they can be statistically inferior if they use small-aperture sensors. As noted in research regarding rain gauge accuracy and WMO standards, larger collection or sensing areas generally minimize sampling errors. A large-dial manual gauge acts as a reliable "sanity check" because its failure modes are mechanical and usually visible. If the needle does not return to zero, the tool is compromised. A digital gauge, conversely, may display "0.0" while its internal baseline has drifted by 5 PSI.

Step-by-Step: Conducting a Professional Accuracy Audit

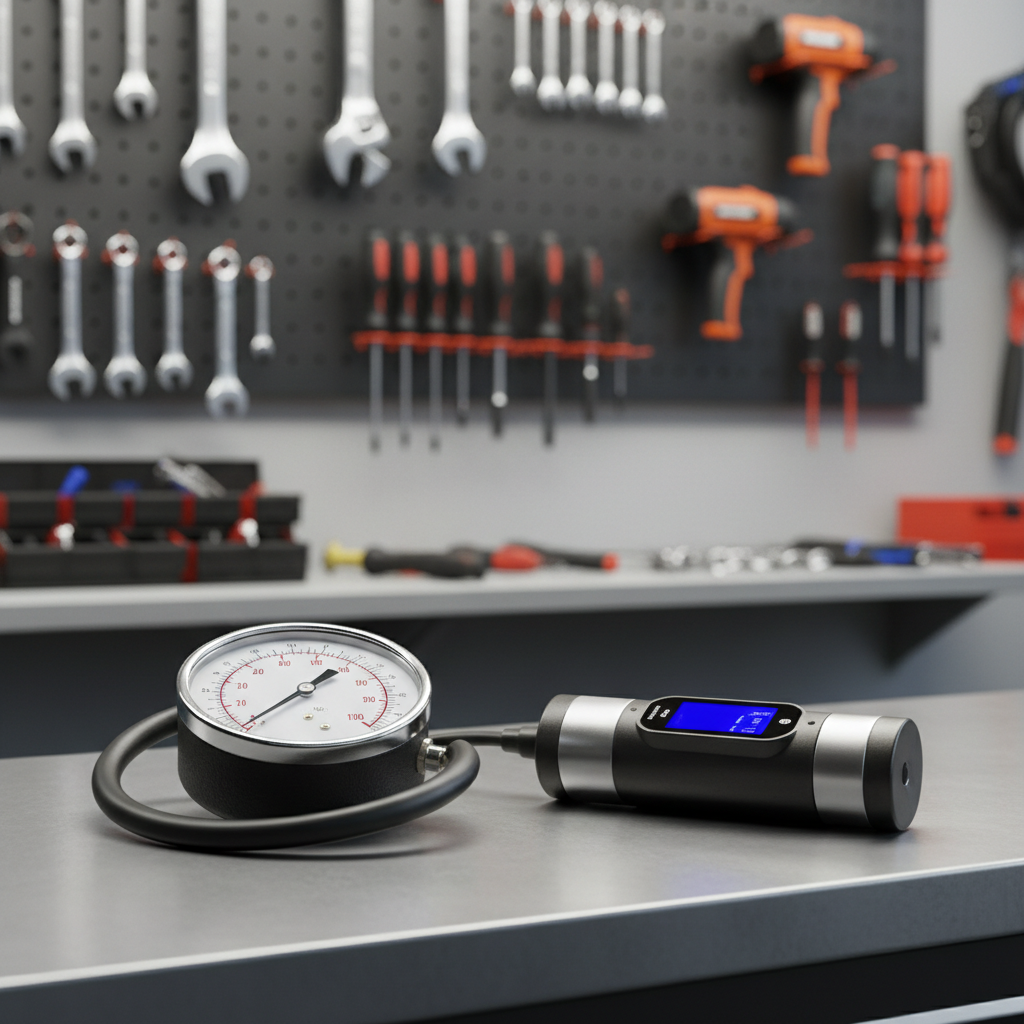

To perform a valid cross-check, the technician must eliminate variables that could skew the results. An "Accuracy Audit" is a hybrid process where the digital tool is validated against a manual reference standard.

1. Environmental Stabilization

Both the tire inflator and the manual reference gauge must be at the same ambient temperature. If the inflator has been stored in a warm house and the tire is at 30°F, the air entering the sensor will cause immediate thermal drift. Allow both tools to sit near the vehicle for at least 30 minutes before testing.

2. The Residual Heat Check

One of the most frequent field mistakes is checking accuracy immediately after a long inflation cycle. The inflator's motor generates significant internal heat. This residual heat can warm the adjacent pressure sensor, leading to a falsely low or high reading. Always allow the pump to cool completely between the inflation task and the accuracy audit.

3. Sequential Cross-Checking

• Step A: Use the digital inflator to reach a target pressure (e.g., 35.0 PSI).
• Step B: Disconnect the inflator and immediately connect the manual reference gauge.
• Step C: Record the manual reading.
• Step D: Repeat the process at three different pressure points (e.g., 20 PSI, 35 PSI, and 50 PSI) to check for "linearity errors."

4. Interpreting the Offset

If the digital gauge is consistently 2 PSI higher than the manual gauge at all three points, you have a "consistent offset." This usually points to a software calibration issue or a shifted baseline. If the error gets larger as the pressure increases (e.g., 1 PSI off at 20 PSI, but 5 PSI off at 60 PSI), this indicates a "scaling error," often caused by a failing sensor diaphragm or internal electrical resistance issues exacerbated by vibration.

Methodology Note (Sensor Drift Modeling): Our analysis of sensor performance in automotive tools uses a deterministic model to estimate drift over time.

| Parameter | Value or Range | Unit | Rationale | | :--- | :--- | :--- | :--- | | Ambient Temp Range | -10 to 50 | °C | Standard automotive operating range. | | Storage Cycle Count | 200 | Cycles | Estimated annual cycles in a vehicle. | | Vibration Load | 2.5 | g | Average road vibration during transport. | | Expected Drift | 0.5 - 2.0 | PSI/Year | Based on common piezoresistive aging. | | Reference Standard | Grade A Manual | N/A | Heuristic baseline for DIY verification. |

Boundary Conditions: This model does not account for physical impact (dropping the tool) or exposure to corrosive chemicals (brake fluid, etc.).

Advanced Troubleshooting: Erratic vs. Consistent Readings

When the audit reveals a discrepancy, the nature of the numbers tells a story about the tool's health.

• Consistent Offset: If your inflator always reads exactly 1.5 PSI high, you can simply adjust your target pressure accordingly. This is a manageable calibration shift often seen in devices that have undergone moderate cabin heat cycles.
• Erratic Readings: If the discrepancy changes every time you connect the hose, or if the digital display "hunts" (jumps between numbers rapidly), this suggests an electrical connection issue or air turbulence within the valve stem. Ensure the chuck is seated perfectly. Erratic behavior is often a precursor to total sensor failure.
• Linearity Failure: If the gauge is accurate at low pressures but fails at high pressures, the internal sensor may be reaching its physical limit or suffering from thermal throttling during the longer run times required for high-PSI tires.

Engineering Trust: The Long-Term Perspective

Building a reliable kit for vehicle maintenance is not just about buying the right tools; it is about maintaining their integrity. As highlighted in the industry white paper The 2026 Modern Essential Gear Industry Report: Engineering Trust in a Cordless World, the market for portable tools has shifted toward "credibility math." For the user, this means verifying that "150 PSI" on the box translates to an accurate, repeatable measurement in the driveway.

Reliability is a function of both engineering and user behavior. By performing regular audits and following strict storage protocols, users can mitigate the risks of precision drift. This methodical approach reduces "buyer anxiety" and ensures that when an emergency strikes, the equipment performs exactly as specified.

Final Recommendations for the Technical Owner

To ensure your digital inflator remains a benchmark of accuracy in your garage, adopt these three professional habits:

1. The Six-Month Audit: Perform a cross-check with a manual gauge every six months, or before any major seasonal road trip. This aligns with industry standards for periodic verification.
2. Temperature Parity: Never calibrate or audit your tools in the sun. Perform all checks in the shade or inside a garage to prevent solar load from skewing the sensor's thermal compensation.
3. Vibration Mitigation: Store your inflator in a padded case. While these devices are built for portability, constant high-frequency vibration from road travel can loosen internal electrical connectors over time, leading to the "erratic readings" mentioned earlier.

By treating a digital inflator as a precision instrument rather than a "set-and-forget" appliance, you maintain the self-sufficiency and reliability that modern automotive care demands.

Disclaimer: This article is for informational purposes only. Tire pressure is a critical safety component of vehicle operation. Always refer to your vehicle manufacturer’s recommended PSI, typically found on the driver’s side door jamb. If you suspect your measurement tools are inaccurate, consult a certified automotive technician.
