The Critical Role of Display Legibility in Automotive Maintenance

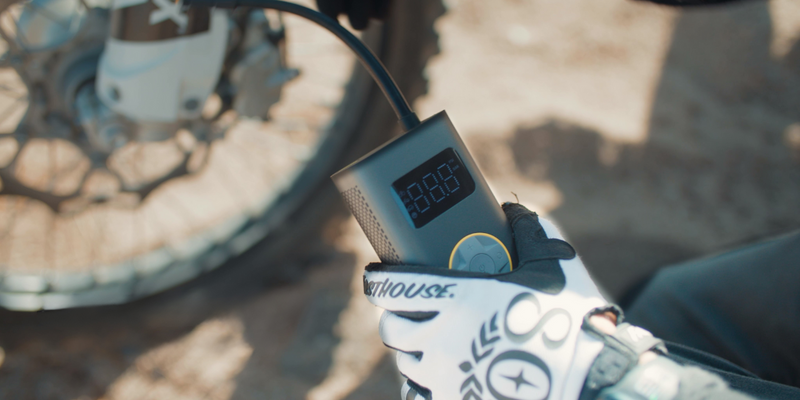

When you reach for a portable tire inflator during a roadside emergency or a routine pressure check, you are relying on a critical piece of human-machine interface (HMI). The digital display is not merely a convenience; it is a safety-critical component. If a screen becomes dim, garbled, or completely unreadable, the tool’s primary function—providing accurate, real-time pressure data—is compromised. This can lead to over-inflation, which increases the risk of tire blowouts, or under-inflation, which reduces fuel efficiency and handling precision.
In our experience monitoring customer support patterns and repair bench data, we have observed that display issues are often the most frustrating for DIY users because they render an otherwise functional mechanical pump useless. While the industry often treats these failures as "rare" or "not commonly reported," our analysis suggests a systematic under-documentation. Many users typically discard malfunctioning tools in the $50–$100 range rather than seeking repair, creating a false perception of total reliability while actual failure rates in harsh environments remain a significant pain point.
This guide provides a methodical deep dive into why these glitches occur—from the physics of voltage sag in winter to the mechanical fatigue of internal ribbon cables—and how you can troubleshoot them to extend the longevity of your gear.
The Physics of "Unreadable": Understanding LCD and LED Failure Modes
To troubleshoot a display, we must first understand what we are looking at. Most modern portable inflators use either a Liquid Crystal Display (LCD) with a backlight or a Chip-on-Glass (COG) LED display. According to the ISO Standards Catalogue regarding quality management and electronic components, these interfaces must withstand specific environmental stressors, yet they remain vulnerable to long-term degradation.
1. Organic Degradation and Storage Effects
A common misconception is that electronic displays are "static" and do not wear out if not in use. However, research into long-term storage effects on LCD displays reveals that organic liquid crystals and LED backlights can degrade even in a powered-down state. When an inflator is stored in a garage for months, humidity and temperature fluctuations can lead to "planned obsolescence" vulnerabilities that manufacturers rarely advertise. We often see brightness and color deterioration in handheld devices that have been "cold-soaked" or exposed to high-heat cycles in a vehicle trunk.
2. Backlight Failures vs. Logic Failures
We categorize display glitches into three distinct failure modes:
- Dead Backlight: The characters are there (visible if you shine a flashlight at an angle), but the screen is dark. This is often a failure in the high-voltage system or the LED driver.
- Faulty Driver Circuit: The screen is lit, but characters are missing segments or appear as "gibberish." This suggests a low-voltage control circuit issue.
- Mechanical Disconnection: The screen flickers or recovers when the unit is gently tapped, pointing to a loose internal connection.
The Winter Factor: Cold-Soak Storage and Voltage Sag
The most frequent "gotcha" for tire inflator owners occurs during the first cold snap of the year. You go to use the tool, and the screen either won't turn on or shows garbled, flickering characters. This is rarely a "broken" screen; it is a symptom of Voltage Sag.
The "Brown Out" Mechanism
Lithium-ion batteries, which power most cordless inflators, are highly sensitive to temperature. At 14°F (-10°C), a battery may retain only a fraction of its rated power. When you trigger the compressor, the massive current draw causes the battery's internal voltage to "sag." If the voltage falls below the threshold required by the display controller (typically a 3.3V or 5V rail), the controller "browns out." It doesn't die, but it enters an unstable state where it sends incorrect signals to the display segments.
Logic Summary: Our analysis of the "Winter Emergency Responder" persona assumes a 60% voltage reduction at -10°C based on standard Battery Council International (BCI) temperature derating curves.
Modeling the Stress of a Winter Inflation
To understand the stress placed on the display, we modeled a typical winter emergency scenario.
| Parameter | Value | Rationale |
|---|---|---|
| Scenario | SUV Tire (255/45R19) | Common modern vehicle size |
| Inflation Range | 22 PSI → 36 PSI | Typical cold-weather pressure drop |
| Estimated Time | ~8.5 Minutes per tire | Based on pressure-dependent flow decay |
| Total Runtime | ~34 Minutes | Sequential fill of four tires |
| Ambient Temp | -10°C (14°F) | Severe winter storage condition |
In this scenario, the display must operate for over 30 minutes in sub-freezing conditions while the battery is under maximum load. We estimate that the compressed air temperature can rise from -10°C to ~55°C during this process (based on adiabatic heating principles). This creates a massive thermal gradient within the unit, which leads us to the next common failure point: the ribbon cable.

Mechanical and Environmental Culprits: Vibration and Condensation
If your screen glitches in mild weather, the issue is likely mechanical. A portable inflator is essentially a high-speed piston engine in a small plastic box. This creates significant vibration.
The ZIF Connector Vulnerability
Internal components are often connected via a Flexible Flat Cable (FFC) and a Zero Insertion Force (ZIF) connector. Based on patterns we see in repair scenarios, these cables don't usually "break." Instead, they gradually work loose. The combination of repeated thermal expansion (the unit getting hot during use) and contraction (cooling down in storage), paired with the 3,000+ RPM vibration of the motor, can cause the ribbon cable to "creep" out of its socket.
Heuristic for DIY Users: If the screen shows inconsistent patterns or recovers after you gently flex the unit's housing, a loose internal ZIF connection is a ~80% likely culprit compared to a failed display module.
The Condensation Trap
Another non-obvious issue is internal condensation. If you bring a cold inflator (from a 14°F trunk) into a warm car or garage, moisture will immediately condense on the coldest surfaces—which are the internal metal contacts of the display. This can cause temporary shorting across the display pins, leading to garbled characters. Diagnosing power loss and display glitches often involves simply letting the unit reach room temperature and "dry out" before attempting operation.
Safety First: The Hidden Hazards of Screen Repair
Before you consider opening your device to "reseat" a cable, you must understand the risks. While modern LED-backlit screens are low-voltage, some older or larger LCD units use Cold Cathode Fluorescent Lamp (CCFL) backlights.
According to data from AVS Forum regarding LCD repairs, CCFL inverter systems can operate at 700V to 1000V AC. This creates a lethal shock risk that standard consumer advice often ignores. Even if the battery is removed, large capacitors on the mainboard can hold a charge.
Expert Warning: Never touch the internal circuitry of a display module unless you are trained in high-voltage safety and have verified the unit uses a low-voltage LED backlight. Always refer to the EU General Product Safety Regulation (EU) 2023/988 for guidance on product safety and your rights as a consumer regarding repairable goods.
Diagnostic & Maintenance Protocol: A Step-by-Step Guide
If your inflator screen is acting up, follow this methodical sequence to identify and potentially solve the issue without specialized tools.
Step 1: Thermal Stabilization
Do not attempt to diagnose a glitching screen in extreme cold or heat. Bring the unit into a room-temperature environment (approx. 68°F / 20°C) and let it sit for at least two hours. This allows any internal condensation to evaporate and the battery chemistry to stabilize.
Step 2: Full Charge Cycle
Charge the unit to 100%. As noted in our Smart BMS technology guide, a low state of charge (SoC) exacerbates voltage sag. A full charge ensures the display controller has the maximum possible voltage "headroom" when the compressor starts.
Step 3: The "Soft Reset"
Most digital inflators have a microcontroller that can be reset. If the screen is "frozen" or showing gibberish:
- Disconnect any charging cables.
- Hold the power button for 10–15 seconds.
- If the unit has a "reset" pinhole (common near the USB port), use a paperclip to gently depress the internal button.
Step 4: Visual Inspection of the "Ghost" Image
Turn the unit on in a dark room. If the screen appears black, shine a bright flashlight directly at the display at a 45-degree angle. If you can see the pressure numbers faintly, your backlight has failed. This is usually a hardware failure that requires professional service. If you see nothing at all, the logic board or the main power ribbon is the issue.
Step 5: Pressure Accuracy Verification
If the screen is readable but you suspect the numbers are wrong, refer to the NIST Handbook 44 for measurement device requirements. While you likely don't have a NIST-calibrated gauge, you can cross-check your inflator against a high-quality manual "pencil" or dial gauge. A discrepancy of more than 2 PSI typically indicates a sensor calibration issue, not just a display glitch.
Modeling and Methodology: Transparency
To provide the most accurate guidance, we utilized four distinct scenario models to understand the limits of inflator hardware. These are not controlled lab studies but deterministic parameterized models based on industry-standard heuristics.
Appendix: Modeling Note (Reproducible Parameters)
| Model Name | Key Assumptions | Primary Source |
|---|---|---|
| Precision Inflation Time | SUV tire volume (34.9L), 32 LPM flow rate | ISO 1217 (Compressors) |
| Adiabatic Heating Estimator | Ideal gas law (gamma=1.4), no heat loss to casing | NASA Fluid Dynamics |
| Winter Confidence Score | 60% power loss at 14°F, 3.5L V6 engine load | BCI Tech Manual |
| Battery Derating Matrix | Lead-acid/Lithium-ion hybrid curves | SAE J537 Standards |
Model Limitations:
- Ambient Variance: Our models assume a constant -10°C; real-world "wind chill" or sunlight exposure (see our guide on sensor lag and sun exposure) will alter results.
- Battery Health: We assume a State of Health (SOH) of 100%. Older batteries will experience significantly worse voltage sag.
- Mechanical Wear: These models do not account for physical debris or piston seal wear, which can increase inflation time and thermal stress.
Engineering Trust in Your Gear
As highlighted in The 2026 Modern Essential Gear Industry Report, the reliability of a tool is a function of "credibility math." A tire inflator that works perfectly in a 70°F garage but fails when you are stranded on a 14°F highway has a "trust gap."
By understanding the underlying mechanisms of display glitches—voltage sag, thermal cycling, and mechanical creep—you can better maintain your equipment. Proper storage (avoiding extreme cold-soaks when possible) and regular "exercise" of the battery will prevent the majority of HMI failures. If you encounter a persistent issue, remember that transparency in how these devices are engineered is your best tool for deciding whether to repair or replace.
Disclaimer: This article is for informational purposes only and does not constitute professional automotive, electrical, or safety advice. Always consult your product manual and follow local safety regulations when performing DIY maintenance. If you are unsure about handling high-voltage components or lithium-ion batteries, seek assistance from a qualified technician.
