Key Takeaways: Workshop Charging Safety

  • The 80% Rule: For continuous loads (charging for 3+ hours), a 15A circuit should not exceed 12A. A hub with 8+ fast chargers often hits ~16A, requiring a 20A dedicated circuit.
  • BMS as a Firewall: The Battery Management System (BMS) prevents fire through three logic layers: voltage limits, short-circuit detection, and thermal throttling.
  • Environment Matters: Charging in garages above 104°F (40°C) triggers BMS protective delays; the ideal range is 50°F–80°F.
  • Visual Safety: Digital logic isn't infallible. Always inspect for "pillowing" (bulging) or metallic odors, which signal internal cell failure.

The Digital Firewall: Why BMS Logic is the Heart of Workshop Safety

In the modern workshop, the transition from corded to cordless tools has redefined productivity. However, as we populate our benches with high-capacity lithium-ion ecosystems, we introduce a complex electrical challenge: managing the simultaneous charging of multiple high-energy density packs. According to the industry white paper The 2026 Modern Essential Gear Industry Report, the reliability of these tools is a function of "credibility math"—the engineering of safety margins that protect both the user and their investment.

At the center of this safety architecture is the Battery Management System (BMS). Often misunderstood as a simple "cutoff switch," a sophisticated BMS is a real-time logic controller that acts as a digital firewall. It negotiates the relationship between the volatile chemistry of the cells and the often-unpredictable electrical environment of a home garage.

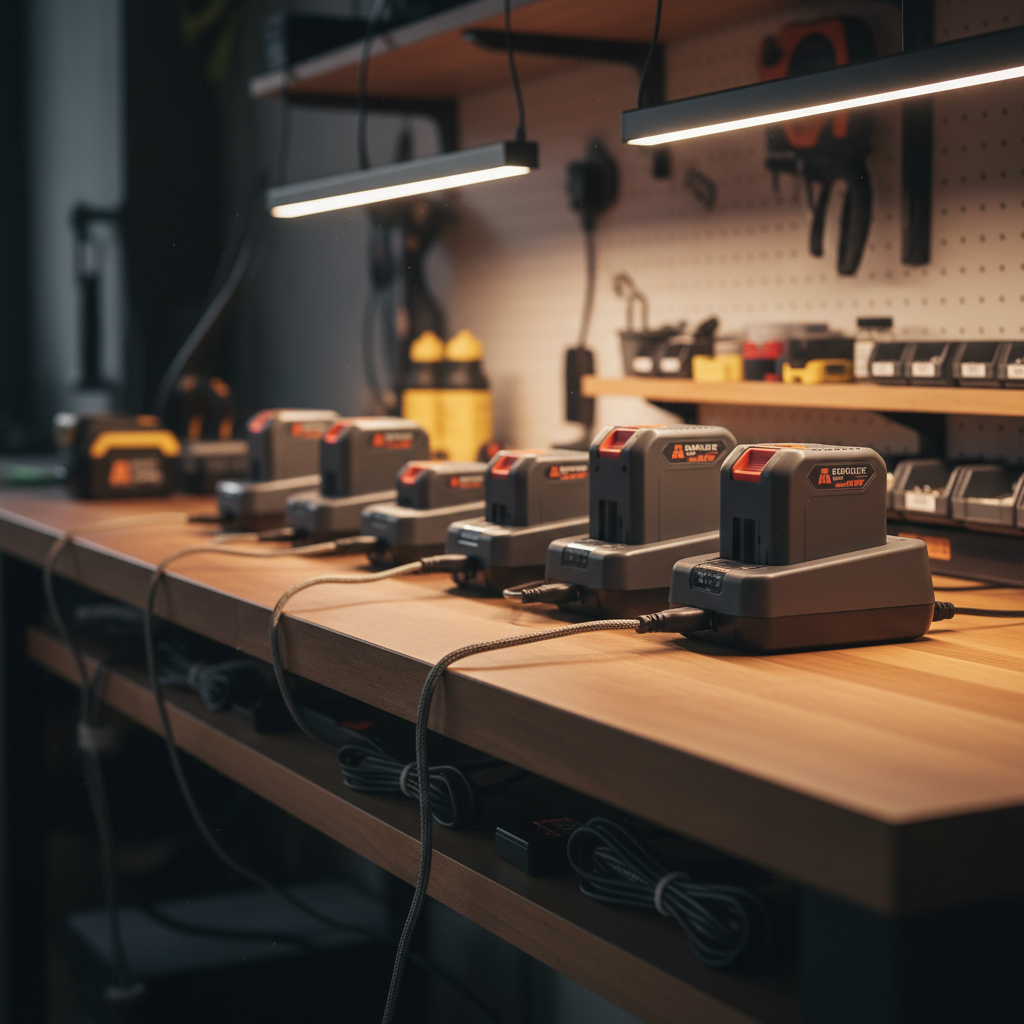

A professional workshop charging station featuring organized tool batteries and clean wiring, emphasizing electrical safety and modern workshop management.

The Physics of the Workshop Charging Hub: A Scenario Analysis

Many enthusiasts underestimate the cumulative electrical load of a "charging hub." We often see users daisy-chaining power strips to accommodate a growing collection of tools, such as the Fanttik K2 Nano 3.7V Precision Power Drill or the Fanttik F2 Master Cordless Rotary Tool Kit. While precision tools have lower individual draws, a hub populated with several high-capacity batteries creates a significant demand on residential infrastructure.

Modeling the "Garage Prosumer" Load

To illustrate the risks, we modeled a common workshop scenario involving high-density charging. This is a heuristic model intended for safety guidance rather than a controlled laboratory report.

Parameter Value Unit Rationale / Source
Simultaneous Batteries 8 Count Typical prosumer workshop capacity
AC Input per Fast Charger ~2.0 A Based on standard 120V/240W rapid chargers
Total Continuous Load ~16 A Calculated AC draw (8 units x 2.0A)
Ambient Temperature 40 (104) °C (°F) Peak summer garage temperature
Circuit Capacity (Standard) 15 A Standard US residential breaker (NEC)

The Result: In this scenario, the total draw reaches approximately 16A. Per the National Electrical Code (NEC) 80% rule, a 15-amp circuit should not handle more than 12A of continuous load. Exceeding this can cause the circuit breaker to trip or, in older wiring, lead to localized overheating behind the walls. This is why we recommend a dedicated 20-amp circuit with 12-gauge wiring for any centralized charging station.

The Three Layers of BMS Protection Logic

A robust BMS operates on three primary logic layers to mitigate the risk of catastrophic failure.

1. Over-Voltage and Under-Voltage Protection

The BMS keeps cells within their "safe operating envelope." If a charger malfunctions and attempts to push a cell beyond its upper limit (typically 4.2V for Li-ion), the BMS triggers a hardware disconnect. Conversely, allowing a battery to discharge to 0V can cause permanent internal damage, creating latent shorts. As noted in research on BMS protection settings, a failure in the low-voltage cutoff can turn a dormant battery into a fire risk during the next charge cycle.

2. Over-Current and Short-Circuit Logic

In a workshop, metallic dust or accidental contact can cause external shorts. The BMS must distinguish between a high-torque "inrush" current (normal for a tool like the Fanttik S2 Pro) and a genuine short circuit. Sophisticated logic uses MOS (Metal-Oxide-Semiconductor) switches to interrupt the circuit in microseconds—significantly faster than a traditional fuse.

3. Thermal Throttling: The Silent Guardian

Heat is the primary catalyst for thermal runaway. A BMS monitors thermistors embedded within the pack. If the temperature exceeds safe thresholds (typically 60°C/140°F for charging), the logic will "throttle" (slow down) the charge rate or halt it entirely.

Close-up of a precision repair bench with a disassembled battery pack and a cordless screwdriver, highlighting the internal electronics and safety components.

Thermal Reality: Why Your Garage Environment Matters

One of the most common oversights is the ambient temperature of the charging area. Lithium-ion batteries are chemically sensitive; practitioners observe that charging in uninsulated garages where temperatures exceed 95°F (35°C) can accelerate capacity loss.

The Thermal Throttling Effect

Based on internal thermal modeling, charging eight batteries in a 40°C (104°F) environment without active ventilation can lead to localized heat pockets. While some theoretical models suggest extreme rises, our practical observations show that internal cell temperatures can quickly climb 20°C–30°C above ambient, pushing the battery into its "protective shutdown" zone.

  • Practitioner Observation: You may notice a battery takes significantly longer to charge in a hot garage. This is the BMS engaging "duty-cycle" protection to prevent the cells from reaching the point of thermal instability.
  • Heuristic for Success: Maintain your charging area between 50°F and 80°F (10°C to 27°C). This range optimizes chemical stability and ensures the BMS logic doesn't have to fight environmental heat.

For more on managing tools in extreme conditions, see our guide on Winter Tool Battery Care.

Advanced Risks: EMI and System-Level Failures

Electromagnetic Interference (EMI)

The workshop is a "noisy" electrical environment. High-power motors (table saws or compressors) can create voltage transients. While rare in high-quality tools, EMI can cause a lower-grade BMS to trip falsely or, in extreme cases, delay a critical safety response. Professional-grade systems are designed with EMI shielding to ensure logic stability.

System-Level Interruptions

In a large-scale charging hub, the BMS must communicate fault conditions to the charger. According to electrical engineering standards for high-current systems, the hub's busbars and contactors must be rated to interrupt fault currents. If a BMS initiates a disconnect but the hub's main contactor isn't rated for the "breaking current," an arc flash can occur, potentially bypassing the battery's internal protection.

Integrating Workshop Logic with Electrical Codes

To secure a workshop, integrate BMS logic with facility-level safety, following principles similar to NEC Article 625:

  1. GFCI Protection: Ensure charging hubs are on a Ground Fault Circuit Interrupter (GFCI) outlet to prevent shock hazards.
  2. Coordinated Tripping: Ideally, the BMS should trip first, followed by the hub's internal fuse, and finally the house breaker. If the house breaker trips first, your infrastructure is likely undersized for your demand.
  3. Dust Resistance: Ensure tools meet standards like IEC 60529 (IP Codes) for resistance to fine sawdust, which can be conductive and cause shorts.

The Human Factor: Don't Bypass the Logic

The most robust BMS can be defeated by human intervention. In high-pressure environments, users may be tempted to use "BMS bypass" modifications to eke out more power. As explored in our analysis of BMS Bypass Risks, these modifications turn a primary safety layer into a mere suggestion.

The Visual Inspection Protocol

While we rely on digital logic, your eyes are a vital secondary sensor.

  • Actionable Step: If you see "pillowing" (a bulge in the casing) or smell a sweet, metallic odor (electrolyte leaking), immediately isolate the pack in a fire-proof container or a bucket of sand and seek proper recycling.

Building Your Safe Workshop Hub: A Checklist

To protect your investment in tools like the Fanttik L2 Pro, follow this professional setup:

  • Dedicated 20A Circuit: Use 12-gauge wiring for your charging station.
  • Avoid Daisy-Chaining: Use a single, high-quality surge protector with an integrated 15A or 20A breaker.
  • Airflow: Maintain at least 2 inches of space between chargers.
  • Climate Control: If the garage is uninsulated, use a ventilated cabinet with a thermostat-controlled fan.
  • Scorching Audit: Periodically check plugs for discoloration, which indicates high resistance and heat buildup.

Final Thoughts on Engineering Trust

The safety of your workshop is a partnership between the advanced logic of your tools' BMS and the physical infrastructure of your space. By respecting the limits of lithium-ion chemistry, you ensure that your tools—from a precision Fanttik K2 Nano to heavy-duty rotary tools—remain ready for work without becoming a liability.


Disclaimer: This article is for informational purposes only and does not constitute professional electrical or fire safety advice. Electrical work should be performed by a qualified electrician in accordance with local building codes and the National Electrical Code (NEC). Always refer to your tool manufacturer's manual for safety guidelines.
