On our repair bench, we often encounter the same heartbreaking scenario: a hobbyist or DIYer has successfully replaced a cracked smartphone screen, only to find the device won't boot because an over-tightened screw crushed a microscopic trace on the logic board. In the world of modern electronics, precision is not a luxury—it is a baseline requirement for survival.

As we move toward a future defined by "modern self-reliance," as outlined in The 2026 Modern Essential Gear Industry Report: Engineering Trust in a Cordless World, the tools we choose must bridge the gap between human intent and mechanical execution. This guide explores the methodical approach to torque management, ensuring your repairs are as reliable as they are precise.

The Physics of Precision: Why Torque Matters

Torque is the rotational equivalent of linear force. In electronics, it is the mechanism that generates "clamping force"—the pressure that holds components together. However, consumer electronics like the iPhone or high-end ultrabooks use materials with very low tolerance for error.

We categorize these risks into three primary failure modes:

• Thread Stripping: Occurs when the screw's torque exceeds the shear strength of the internal threads, common in aluminum frames.
• Boss Bursting: When a screw is driven too forcefully into a plastic post (boss), causing the plastic to split radially.
• Board Crushing: Overtightening a bracket screw can compress the multi-layer PCB, severing internal copper traces that are thinner than a human hair.

According to the ISO 898-1 standards for mechanical properties of fasteners, every fastener has a specific proof load. In sensitive electronics, we are often working at less than 10% of the force used in traditional carpentry. This is why "hand-tight" is a dangerous metric; human tactile feedback is notoriously inconsistent at the sub-0.1 N·m level.

Digital vs. Manual: The Efficiency and Safety Gap

While many veterans swear by the "feel" of a manual driver, our scenario modeling suggests that digital precision tools offer a measurable advantage in both safety and professional output. For a technician handling multiple repairs a day, the cumulative impact of manual driving is significant.

Modeling Note: Assembly Time & Ergonomic Savings

We modeled a professional environment to compare the impact of switching from manual precision drivers to a digital torque-controlled system.

Logic Summary: Our analysis assumes a standard professional repair workflow (e.g., iPhone 11/12 screen replacements). We estimate that using a tool like the Fanttik E1 MAX Precision Electric Screwdriver saves approximately 19 minutes of active driving time daily. More importantly, it reduces repetitive wrist rotations by ~94%, significantly lowering the long-term risk of musculoskeletal disorders as identified by NIOSH ergonomic studies.

Setting the Standard: A Practical Heuristic for Torque

One of the most common questions we receive is: "What is the correct torque setting for my device?" The reality is that there is no universal number. However, we have developed a heuristic based on fastener class and material.

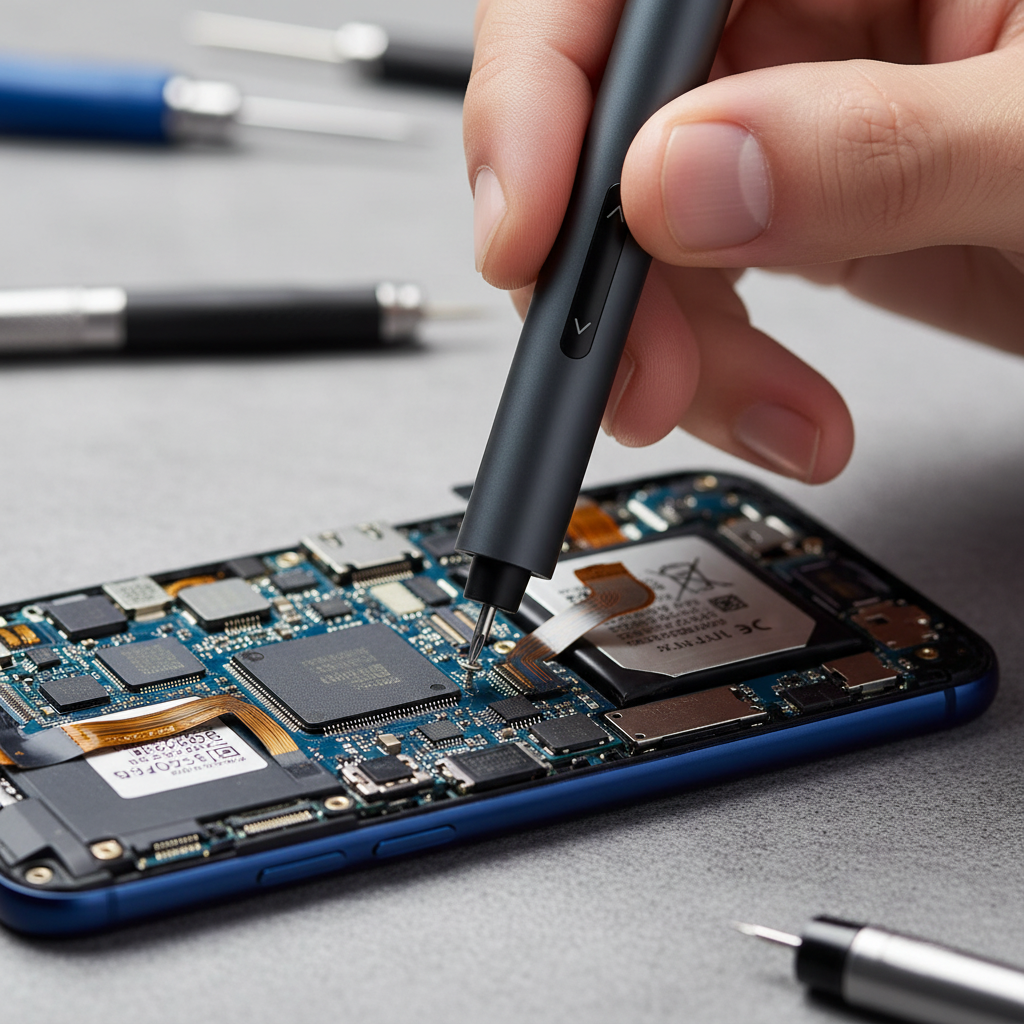

Scenario A: The Smartphone Bracket (M1.2 - M2.0 Screws)

Smartphone screws are incredibly delicate. For example, the pentalobe screws securing an iPhone display or the internal Phillips screws on a battery bracket require extreme care.

• Heuristic: Start at the lowest possible setting (typically 0.05 N·m) and increment by 0.01 until the screw is seated.
• Safety Threshold: For most smartphones, the max safe torque is roughly 0.1 N·m.

Scenario B: The Laptop M.2 SSD (M2.5 - M4.0 Screws)

Laptops provide slightly more headroom but introduce different risks. An M.2 SSD screw must be tight enough to maintain a data connection under vibration but loose enough not to bow the drive.

• Heuristic: We typically find that 0.35 N·m is the "sweet spot" for SSD retention.
• Safety Threshold: Do not exceed 0.5 N·m, as this risks stripping the brass standoff embedded in the laptop's motherboard.

Precision Torque Fit Checker (Modeling Results)

Based on our internal repair bench observations and iFixit repair guides, we've mapped the optimal ranges for common tasks.

Methodology Note: These values are heuristic guides derived from mechanical engineering fastener standards (ISO 898) and practitioner experience. They are not universal constants and may vary by specific manufacturer coatings or thread pitches.

The Overlooked Variables: Bit Wear and Battery Health

Even with the Fanttik L2 Pro Cordless Electric Screwdriver set to the perfect torque, two hidden factors can ruin a repair: bit wear and battery voltage.

The 30% Friction Penalty

As a screwdriver bit wears down, its "fit" within the screw head degrades. This increases the amount of downward pressure (end-load) required to prevent "cam-out" (the bit slipping out of the screw). On our bench, we've observed that a worn Phillips or Torx bit can require up to a 30% higher torque setting to achieve the same actual clamping force. This extra energy is often dissipated as heat or friction, increasing the risk of shearing the screw head.

Pro Tip: If you see "glitter" (microscopic metal shavings) in the screw head after driving, your bit is worn. Replace it immediately. The Fanttik S2 Pro Cordless Electric Screwdriver kit includes high-hardness S2 steel bits specifically to mitigate this drift.

Battery Consistency

Digital torque drivers rely on voltage sensors and current-limiting circuits to determine when to "shut off" the motor. Storing your tool with a nearly depleted battery can lead to erratic torque delivery. Low voltage can affect the motor's consistency, potentially causing a ±5-10% deviation in the shut-off point. We recommend keeping your precision tools charged between 40% and 80% to ensure the sensor feedback remains accurate.

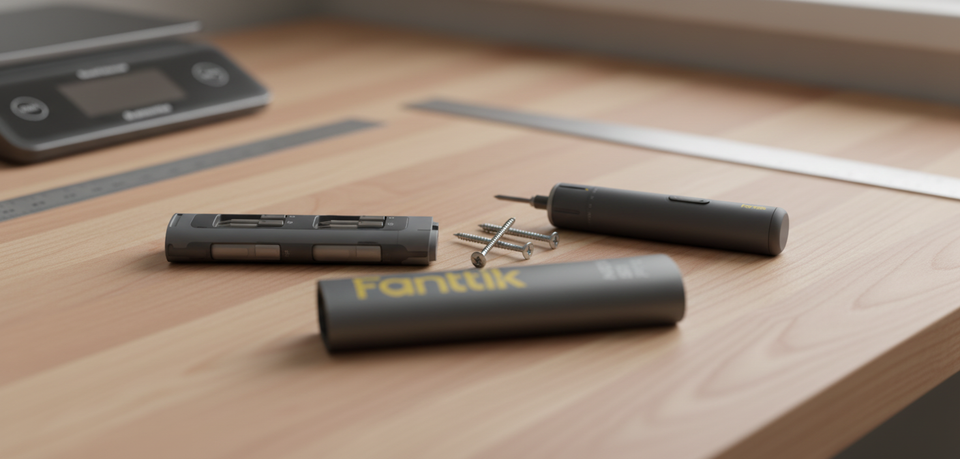

Calibration and Field Checks: Maintaining Authoritative Accuracy

To maintain trustworthiness in your repair work, your tools must be calibrated. While professional calibration for a $100 tool can be cost-prohibitive, you can perform a "Field Verification" to ensure you are within a safe margin.

1. The Beam-Type Check: Use a known, accurate manual beam-type torque wrench on a "dummy" fastener (a screw driven into a non-critical piece of scrap material).
2. The Shut-Off Test: Drive the screw with your digital driver until it stops. Then, use the manual wrench to see at what torque the screw begins to move again.
3. The 5% Rule: If your digital driver consistently deviates by more than ±5% from the manual wrench's reading, it is time for a factory service or a replacement.

This methodical approach aligns with the NIST Handbook 44 guidelines for measuring devices, which emphasize that accuracy is a function of regular verification.

Compliance and Safety: The Global Standard

When performing repairs for others or selling refurbished electronics, you must be aware of the EU General Product Safety Regulation (GPSR) 2023/988. This regulation places a high burden on "traceability" and "safety by design." Using calibrated, torque-controlled tools is a critical part of your technical documentation, proving that the device was reassembled to a standard that prevents battery punctures or electrical shorts caused by loose internal components.

Furthermore, if your repair involves replacing batteries, ensure you follow IATA Lithium Battery Guidance for transport. A battery bracket that is under-torqued can allow the battery to shift during shipping, potentially leading to a thermal event.

Building a Professional Repair Workflow

Precision electronics repair is as much about the process as it is about the parts. By adopting a digital torque-centric workflow, you are not just buying a tool; you are investing in a system that reduces error, protects your health, and builds customer trust.

For those looking to expand their capabilities beyond simple screw-driving, tools like the Fanttik F2 PRO Cordless Rotary Tool Kit allow for delicate modifications to chassis or the removal of stripped screws that manual tools simply cannot handle.

In the end, modern self-reliance is about having the competence to fix what is broken. By mastering torque, you ensure that your repairs don't just work—they last.

Disclaimer: This article is for informational purposes only and does not constitute professional engineering or medical advice. Electronics repair involves inherent risks, including exposure to high voltage and lithium-ion battery hazards. Always consult the manufacturer's official service manual for specific torque specifications. If you have pre-existing wrist or hand conditions, consult a medical professional before engaging in repetitive repair tasks.
