If your Fanttik T1 Max soldering iron no longer tins cleanly, takes longer to wet a joint, or shows a pitted, dull surface, the tip — not the iron — is usually what needs attention. The T1 Max uses the widely adopted C210 cartridge tip standard, where the heating element and tip are integrated into a single slide-in cartridge. This guide covers the C210 tips that fit the T1 Max, the available shapes, when a tip needs replacing, how to swap one safely, and how tinning extends tip life. The genuine part is the C210 Replacement Soldering Iron Tips for T1 Max.
The C210 Tip Standard on the T1 Max
The T1 Max is a cordless iron built around C210-format cartridge tips. In a C210 design the tip and heating element are one piece: each cartridge carries its own nickel-chromium heating element, protected by an anti-corrosion layer that resists oxidation, so heat is generated right at the tip for fast heat-up and quick recovery. Because the element lives inside the cartridge, "replacing a tip" really means replacing the whole heated cartridge — there is no separate element to service. The T1 Max kit ships with four precision C210 tips, so you start with a set.

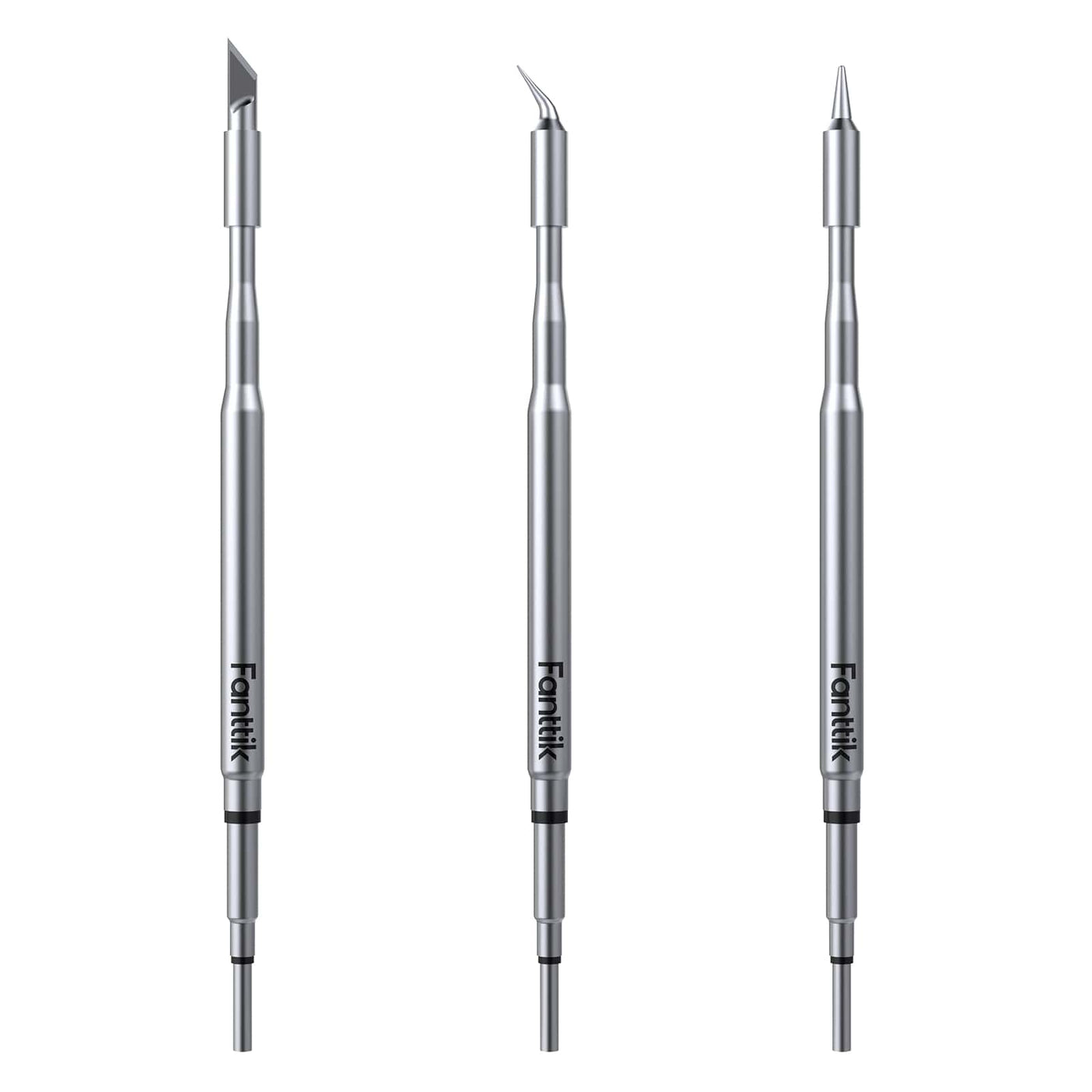

Available C210 Tip Shapes
The C210 replacement set covers three commonly used models, each suited to a different soldering style. Match the shape to the work rather than forcing one tip to do everything.
| Tip model | Best for |
|---|---|
| C210-I | Precision spot welding — fine, pointed work on small pads, single joints, and tight spots |
| C210-IS | Drag welding — running solder along a row of closely spaced pins or pads in one pass |
| C210-K | Specialized angle applications — knife-style work where an angled face helps reach and wet the joint |
Between them these tips cover a wide range of high-precision tasks: electronics repair, smartphone and watch restoration, assembly work, jewelry welding, and micro-engraving. Keep more than one shape on hand so you can switch geometry instead of compromising on one tip.
When to Replace a Tip
A C210 tip is a wear item. Replace it — rather than fighting it — when you see any of the following:
- It won't tin. Solder beads up and rolls off instead of wetting the tip face — the clearest sign the surface has oxidized past recovery.
- Visible pitting or erosion. The once-smooth plated face looks rough, dull gray, or eaten away at the working point.
- Poor heat transfer. Joints take noticeably longer to flow even though the iron reaches temperature normally.
If the iron heats slowly or behaves oddly across every tip you try, the problem may not be the tip — see the T1 Max soldering iron troubleshooting guide before replacing parts.
How to Swap a C210 Tip Safely
C210 cartridges run very hot and stay hot after the iron is switched off. Work patiently and protect your hands.
- Power down and let it cool. Turn the iron off and let the tip cool. The T1 Max has auto-sleep, but do not rely on it — power down fully before changing tips.
- Rest the iron on its stand. Use the included 360° swivel stand so the hot tip stays clear of the bench and cables.
- Remove the old cartridge. Once cool, withdraw the C210 cartridge from the handle. If you must change a tip warm, grip it only with the proper tool or a heat-resistant grip — never bare fingers.
- Insert the new tip. Slide the new C210 cartridge fully and squarely into the handle until it seats. A cartridge that is not fully seated can read the wrong temperature or make poor contact.
- Power up and tin immediately. Turn the iron on and tin the new tip with fresh solder as soon as it is hot. The T1 Max reaches soldering temperature in about 7 seconds, so tin promptly to protect the fresh surface.
Tip Care and Tinning
Most "dead" tips are really just neglected ones. A little routine care makes a C210 tip last far longer:
- Keep it tinned. A tip should always carry a thin, shiny coat of solder in use and when you set it down. Bare hot metal oxidizes fast; a solder coat shields it. Add fresh solder before powering off, too.
- Wipe, don't scrape. Clean on a damp sponge or brass wool. Avoid abrasives or files that strip the protective plating and shorten tip life.
- Run only as hot as you need. The T1 Max offers a 390°F–840°F range with 6 levels of temperature control. Excess heat accelerates oxidation, so use the lowest setting that flows your solder cleanly.
- Use flux. Good flux helps solder wet the tip and joint and reduces the oxidation that dulls a tip over time.
When a tip stops taking solder even after cleaning and re-tinning, its working life is over — fit a fresh C210 tip rather than running a worn one.
FAQ
Q: What tips fit the Fanttik T1 Max?
A: The T1 Max uses C210-standard cartridge tips. The genuine replacement set covers three commonly used models — C210-I, C210-IS, and C210-K — sold as the C210 Replacement Soldering Iron Tips for T1 Max.
Q: Which C210 tip should I choose?
A: Match the shape to the work: C210-I for precision spot welding, C210-IS for drag welding across rows of pins or pads, and C210-K for specialized angle applications. Keeping more than one shape lets you switch instead of compromising.
Q: Can I change the tip while it's hot?
A: It is safest to power down and let the cartridge cool first, since C210 tips run very hot and hold heat. If you must change one warm, handle it only with a proper tool or heat-resistant grip — never bare fingers.
Q: How do I make a C210 tip last longer?
A: Keep it tinned with a thin solder coat, wipe on a damp sponge or brass wool rather than scraping, use flux, and run the lowest temperature that flows your solder. Tin again before powering off.
Q: Does the T1 Max come with tips, or do I need to buy them?
A: The T1 Max kit ships with four precision C210 tips, so you can start soldering immediately. Buy the C210 replacement set when those tips wear out or when you need a shape the kit did not include.
