Floatation vs. Digging: Matching PSI to Terrain Soil Density

The Mechanics of Off-Road Traction: Beyond Simple Deflation

For the technical off-roader, tire pressure is not a set-and-forget metric. It is a dynamic variable that governs the interface between a multi-ton vehicle and an unpredictable substrate. While the general advice to "air down" is ubiquitous in overlanding circles, the physics behind why a specific PSI works on sand but fails in mud is often misunderstood.

The primary objective of adjusting tire pressure is to manipulate the "contact patch"—the surface area of the tire actually touching the ground. However, the goal of this manipulation changes based on the soil's bearing capacity. In some scenarios, you need to stay on top of the soil (floatation); in others, you must cut through a soft surface to find grip underneath (digging). Achieving "boring excellence" in trail performance requires moving away from trailhead guesswork and toward a methodical understanding of soil density and tire deformation.

The Physics of the Footprint: Longitudinal vs. Lateral Expansion

When internal tire pressure decreases, the tire carcass does not simply get wider; it primarily gets longer. This longitudinal expansion is the key to off-road capability. A longer footprint distributes the vehicle's weight over more tread blocks without significantly increasing the width, which would otherwise create more "rolling resistance" (the "bow wave" effect where the tire has to push a pile of dirt in front of it).

According to the ISO Standards Catalogue regarding tire testing and performance, the structural integrity of a tire is rated based on its ability to maintain its bead seat and sidewall stability under specific load-to-pressure ratios. In an off-road context, we are intentionally operating at the margins of these engineering limits.

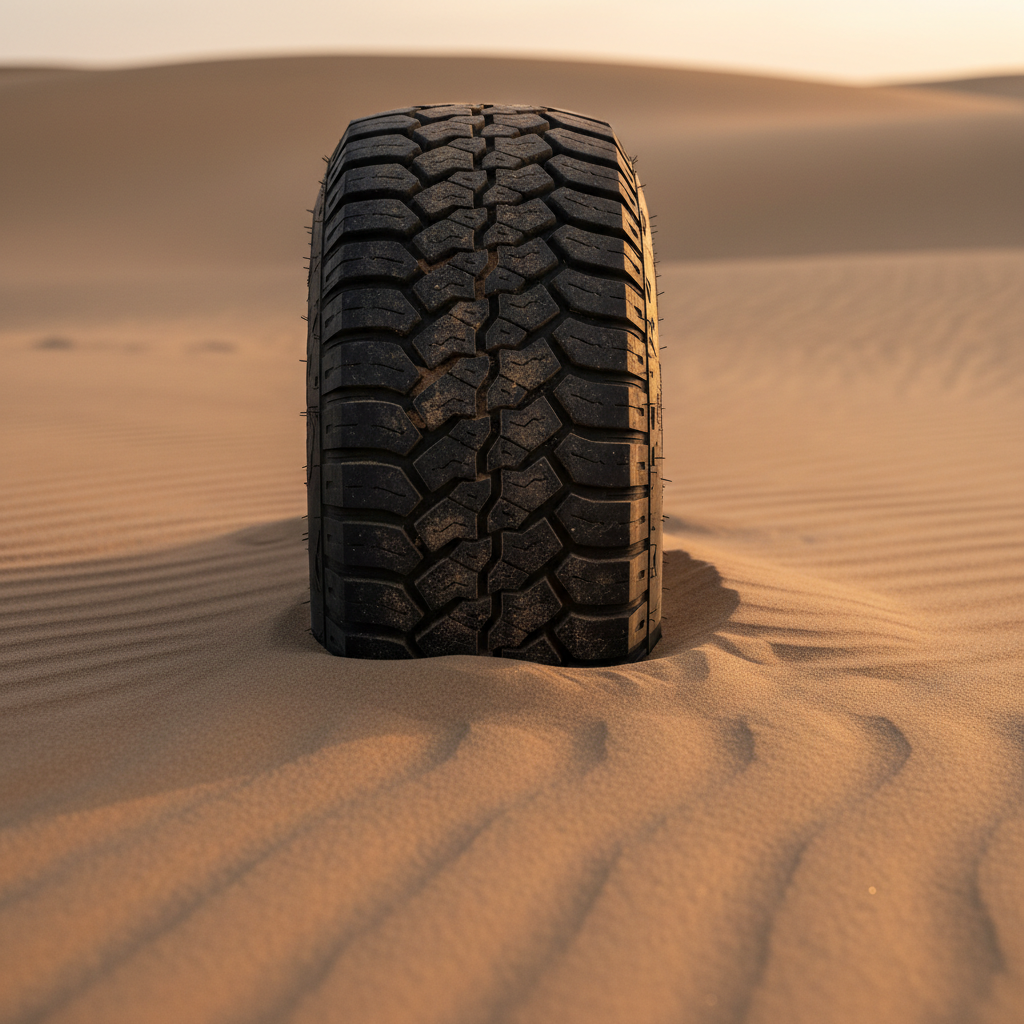

The Floatation Strategy: Conquering Dry Sand

In dry, fine sand, the soil has almost no cohesive strength. If the tire's ground pressure exceeds the sand's bearing capacity, the tire will dig a hole rather than moving the vehicle forward. Here, the goal is maximum floatation.

• Target Range: 8–12 PSI (for a heavy 4x4).
• The Mechanism: Lowering pressure to this range creates a "tank tread" effect. The elongated footprint allows the tire to "climb" over the sand particles rather than pushing through them.
• The Risk: At these pressures, the mechanical force holding the tire bead against the rim is significantly reduced. Sharp turns or high-torque applications can cause the bead to unseat, resulting in a total loss of pressure.

Modeling Note (Scenario: Sand Floatation) This model assumes a standard 33-inch All-Terrain tire on a 5,000lb vehicle.

Parameter	Value or Range	Unit	Rationale
Vehicle Weight	5,000	lbs	Typical mid-size overland build
Tire Section Width	285	mm	Standard width for off-road tires
Static Load Radius	14.5	inches	Estimated at 12 PSI
Ground Pressure	~9 - 11	PSI	Goal: Match substrate bearing capacity
Lateral Load Limit	< 0.3	G	Threshold to prevent bead unseating

Boundary Conditions: This model applies to dry, non-cohesive sand. It does not account for frozen sand or wet "packed" beach sand, which have significantly higher bearing capacities.

The Digging Strategy: Traction in Cohesive Mud

Mud presents a different physical challenge. Unlike sand, mud is often a slippery layer over a firmer substrate (the "bottom"). If you use sand-level pressures (8–12 PSI) in thick mud, the tire may become a "slick donut." The mud fills the tread voids, and because the pressure is so low, the tire floats on the slurry rather than biting through it.

In cohesive soils like clay or deep mud, a slightly higher pressure is often more effective. This is a counter-intuitive insight for many novices.

• Target Range: 15–18 PSI.
• The Mechanism: The higher pressure maintains the "bite" of the tread blocks. It allows the tire to shear through the top layer of mud to reach the firmer soil underneath. Additionally, the higher internal pressure helps the tire carcass flex in a way that "self-cleans," ejecting mud from the treads as the tire rotates.
• The Gotcha: If there is no "bottom" to the mud (e.g., a bottomless muskeg), you must revert to floatation tactics, though the success rate in such terrain is significantly lower.

Moisture: The Hidden Variable in Soil Density

A common mistake in the off-road community is relying on static PSI charts based on soil type (e.g., "Always use 15 PSI for clay"). However, research indicates that moisture content is the dominant factor that overrides static soil classification.

As noted in geotechnical studies on soil bearing capacity, a clay-heavy trail can see its bearing capacity vary by over 300% based on its saturation level. A pressure that was perfect for a dry, hard-packed clay trail may cause immediate, deep rutting and a "stuck" scenario if a rainstorm saturates the ground.

Expert Insight: Do not trust the map; trust the "bulge." A reliable heuristic (rule of thumb) used by experienced guides is to air down until the tire sidewall bulge is approximately 25% of the total tire height. This compensates for vehicle weight and tire stiffness variations that a fixed PSI number cannot account for.

Technical Risks: Temperature Creep and Sidewall Stress

Airing down is not a one-time event at the trailhead. Throughout a day of technical driving, two physical phenomena can move your tires out of the "Goldilocks" zone:

1. Thermal Expansion (Pressure Creep)

As you drive, the constant flexing of the sidewalls generates internal heat. This heat causes the air inside the tire to expand. A tire that you set to 15 PSI at a cool 60°F trailhead can easily creep up to 20 or 22 PSI after two hours of low-range crawling. This 5–7 PSI increase is enough to significantly reduce your traction in soft sections.

2. Sidewall Heat Saturation

Excessive flexing at very low pressures generates friction within the rubber compounds. If the sidewall becomes too hot to touch comfortably with your bare hand, the tire is over-flexing. This is a leading indicator of impending structural failure. If you detect high heat, you must increase the pressure by 2–3 PSI to reduce the flex rate, even if it slightly compromises traction.

According to The 2026 Modern Essential Gear Industry Report: Engineering Trust in a Cordless World, engineering trust in off-road gear requires acknowledging these safety margins. Reliability under stress is not just about the gear itself, but about the operator's ability to monitor and adjust variables in real-time.

Re-inflation Engineering: CFM at Pressure

The most critical part of the air-down cycle is the re-inflation. For many off-roaders, the bottleneck is not the trailhead, but the transition back to the pavement. When evaluating portable compressors or inflators, the "Free Flow" CFM (Cubic Feet per Minute) is a misleading metric.

Most entry-level compressors boast high CFM at 0 PSI (atmospheric pressure). However, as the pressure inside the tire builds, the compressor's efficiency drops. For a 33-inch or 35-inch tire, you need a unit that maintains a high CFM at 30+ PSI. A compressor that drops below 1 CFM at 30 PSI will result in a "duty cycle" shutdown before you finish your second tire, leaving you stranded with dangerously low pressures for highway speeds.

Essential Trailside Maintenance Checklist

Based on common patterns from customer support and field recovery data, these three steps are often overlooked:

1. Clear the Valve Stem: Before connecting your inflator, tap the valve core to blow out any trail dust or mud. Debris in the seal is the primary cause of "slow leaks" after a weekend trip.
2. Check the Bead Seat: Before high-speed re-inflation, visually inspect the area where the tire meets the rim. If sand or pebbles are wedged in the bead, the tire may not seal correctly at highway pressures.
3. The Temperature Touch-Test: After re-inflating and driving the first 5 miles of pavement, stop and feel the tires. If one is significantly hotter than the others, it likely has a lower pressure or a dragging brake caliper—both are safety risks at speed.

Trust and Safety in Remote Environments

Operating in remote areas requires a high level of equipment preparedness. While portable inflators have become more compact and capable, they must adhere to rigorous safety standards. For instance, devices utilizing lithium-ion batteries should be handled in accordance with IATA Lithium Battery Guidance regarding state of charge and thermal stability during transport.

Furthermore, ensure your equipment meets IEC 60529 standards for dust and water resistance (IP ratings). A "trail-ready" inflator that isn't at least IP54 rated is a liability when you're kneeling in the mud or a dust storm at 4,000 feet of elevation.

Summary of Terrain Matching

Note: These ranges are estimates for mid-size 4x4 vehicles. Always consult your tire manufacturer's load-inflation tables for specific safety thresholds.

Managing traction through tire pressure is an art supported by rigorous physics. By understanding the trade-off between floatation and digging, and by monitoring variables like moisture and thermal creep, you move from being a passenger to being an active manager of your vehicle's mobility. Trust in your gear is built on this foundation of technical competence and methodical adjustment.

Disclaimer: This article is for informational purposes only. Off-roading involves inherent risks to personal safety and vehicle integrity. Always consult your vehicle and tire manufacturer's guidelines. Tire pressures below the manufacturer's recommended street PSI should only be used in off-road environments at low speeds. Failure to re-inflate tires to recommended pressures before highway driving can lead to tire failure, accidents, and serious injury.
