Post-Impact Audits: Verifying IP Seal Integrity After a Drop

The Hidden Vulnerability: Why "Looks Fine" Isn't Enough After a Drop

Mechanical shocks from dropping a tool can micro-fracture internal waterproof seals without visible exterior damage. For those of us who rely on portable gear in demanding environments—whether it is a jump starter in a freezing garage or a tire inflator on a muddy trail—the integrity of that device is a safety requirement, not just a feature. When a ruggedized device hits a hard surface from waist height (approximately 1 meter), the external housing might remain unscathed, but the internal "IP seal" often absorbs the brunt of the kinetic energy.

In our experience handling customer support inquiries and warranty repairs, we have identified a recurring pattern: devices that pass a "visual sniff test" often fail during their next encounter with moisture. This is because the most common point of waterproof failure after a drop isn't the main housing seam, but the smaller, less rigid seals around button membranes and USB port covers.

As outlined in The 2026 Modern Essential Gear Industry Report: Engineering Trust in a Cordless World, building trust in portable hardware requires a shift from "design-focused" to "engineering-rigorous." This article provides a methodical framework for performing a post-impact audit to ensure your gear remains submersible and safe.

Understanding the Physics of Seal Compromise

To understand why a drop is so dangerous to waterproofing, we must look at the mechanics of shock. When a device hits the ground, the deceleration is nearly instantaneous. This creates a shock wave that travels through the chassis.

While the outer shell (often polycarbonate or reinforced ABS) is designed to flex, the internal seals—typically made of silicone or TPE (Thermoplastic Elastomer)—are compressed. If the impact is off-axis, it can cause a momentary "gapping" of the seal. Furthermore, devices used in environments with large temperature swings, such as a car interior, are more susceptible to seal compromise post-impact. Thermal cycling can exacerbate micro-fractures in the plastic housing where the seal sits, creating a latent leak path that only opens when the device is submerged.

The Weakest Links: Membranes and Ports

According to observations from repair technicians and field service practitioners, the primary failure points are:

• Button Membranes: These are thin to allow for tactile feedback. A drop can cause the membrane to pinch against the internal switch, creating a microscopic tear.
• USB Port Covers: These are often friction-fit. The jolt of an impact can slightly displace the internal port assembly, meaning the "plug" no longer seats perfectly.
• Internal Gaskets: In high-consequence devices like jump starters, the internal gasket separating the battery compartment from the electronics is critical for preventing thermal runaway if water enters the casing.

Phase 1: The Visual and Functional Audit

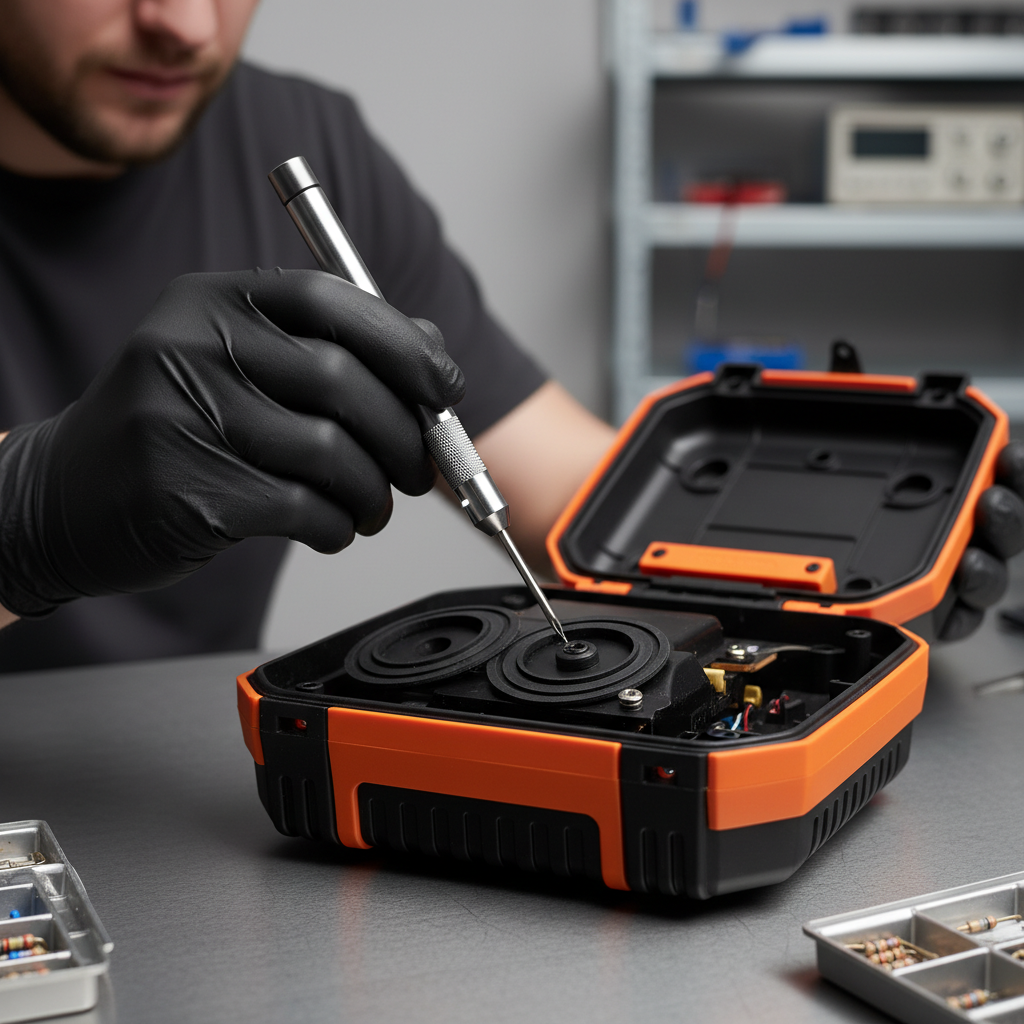

Before performing advanced testing, a systematic teardown or close inspection is necessary. If you are a field technician managing a fleet of tools, efficiency is paramount.

Efficiency in Inspection

Performing a full seal inspection often requires removing a significant number of fasteners. In a typical ruggedized portable device, you may encounter up to 60 screws to reach the core gaskets. Using a manual driver for this is not only slow but increases the risk of "cam-out" (slipping), which can damage the screw heads or the housing itself.

We have modeled the efficiency gains of using a precision power tool for these audits. For instance, using a tool like the Fanttik E2 MAX Precision Electric Screwdriver significantly reduces the physical toll and time required for a professional-grade audit.

Logic Summary: Our analysis assumes a technician performing a full disassembly of a rugged device (60 screws). Manual driving is estimated at 18 seconds per screw due to high-torque seating, whereas a powered precision driver with a clutch maintains a consistent 4-second pace.

Note: Estimates based on industrial time-motion studies for electronics repair (Source: NIOSH Musculoskeletal Disorders and Workplace Factors).

Phase 2: The Field Vacuum Test (The Syringe Method)

If the device passes a visual inspection, the next step is to verify the seal's performance under pressure. While professional labs use expensive pressure decay testers, a highly reliable field indicator can be constructed using a modified 60ml syringe and a piece of flexible tubing.

Step-by-Step Vacuum Verification:

1. Identify a Port: Find a port that is meant to be sealed (like a USB-C charging port under a flap).
2. Create a Seal: Use a small piece of rubber tubing to connect the syringe to the port. You may need a tapered adapter to ensure the connection itself doesn't leak.
3. Draw the Vacuum: Pull the plunger of the syringe to the 10ml mark. This creates a slight negative pressure inside the device housing.
4. The 30-Second Hold: Observe the plunger. If the seal is intact, the plunger should hold its position for at least 30 seconds. If the plunger slowly creeps back toward the zero mark, air is entering the device—indicating a compromised seal.

This non-destructive test is a practical alternative to the "dunk test," which risks destroying the electronics if the seal is actually broken.

Case Study: High-Consequence Failure Modes

Why does this matter so much? Consider two common pieces of gear: a portable tire inflator and a lithium-ion jump starter.

Scenario A: The Tire Inflator

A compromised seal in a tire inflator usually leads to a loss of compression efficiency before the motor fails. If the internal gaskets around the piston or the air hose outlet are jarred loose, the pump has to work harder to achieve the same PSI.

In our scenario modeling for the Fanttik X9 Pro Portable Tire Inflator, we looked at the impact of seal degradation on a light truck tire (LT265/70R17). A minor seal leak can extend inflation time from a standard benchmark to over 21 minutes, significantly increasing the heat load on the battery and motor.

Scenario B: The Jump Starter (The "Winter Confidence" Gap)

For a jump starter, a seal failure is a safety hazard. If moisture enters the battery compartment, it can cause corrosion on the high-current busbars. When you need that device during a -15°F winter morning to start a 6.7L diesel engine, that corrosion creates resistance, leading to heat and potential failure.

We calculated a "Winter Confidence Score" to demonstrate the safety margin required for heavy-duty starting.

Methodology Note: This model uses SAE J537 standards for Cranking Amps and BCI temperature derating curves. The "Moderate Risk" score indicates that after a drop, any internal resistance from moisture-induced corrosion could bridge the gap between a successful start and a dead device.

Compliance Standards: IEC 60529 and Beyond

When we talk about "IP Ratings," we are referring to the IEC 60529 standard. It is vital to understand that an IP67 rating (dust-tight and protected against immersion up to 1m) is certified for a new device in a controlled environment.

The EU General Product Safety Regulation (EU) 2023/988 emphasizes that manufacturers and users must consider the "foreseeable conditions of use." A drop is a foreseeable condition. Therefore, a device that was IP67 at the factory may no longer meet that standard after a single impact.

Furthermore, industry standards like JEDEC JESD22-B111 mandate continuous electrical monitoring during drop tests to detect "intermittent failures"—the kind that might not show up until the device is under load or exposed to humidity.

Proactive Maintenance Checklist

If you have dropped your device, follow this "Post-Impact Audit" protocol before your next trip:

1. Exterior Stress Test: Apply firm pressure with your thumb around all button membranes. Listen for any "crunching" sounds that might indicate fractured plastic underneath.
2. Port Alignment Check: Open all port covers. Use a flashlight to ensure the internal connectors (USB, DC, etc.) are still centered in their cutouts.
3. Thermal Cycling Observation: If the device has been in a hot car and then moved to a cold environment, look for internal condensation behind the screen or lens. This is a definitive sign of seal failure.
4. Functional Performance Check: For inflators, time a standard fill (e.g., 30 to 35 PSI). If it takes longer than usual, the internal seals may be leaking air.

Conclusion: Engineering Trust Through Verification

Reliability in the field isn't about luck; it's about a disciplined approach to equipment maintenance. A drop is more than a cosmetic issue—it is a mechanical event that can compromise the very safety features you bought the device for. By performing a vacuum test and utilizing precision tools for regular inspections, you move from "hoping it works" to "knowing it's ready."

As we move toward a more cordless world, the rigor we apply to our gear must match the environments we take it into. Whether you are using a Fanttik X9 Pro Portable Tire Inflator for a cross-country trek or keeping a jump starter in your trunk for emergencies, a five-minute post-drop audit is the best insurance policy you can have.

Appendix: Modeling Assumptions & Parameters

The data presented in this article is derived from scenario modeling designed to simulate real-world field service conditions. It is not a controlled laboratory study.

Boundary Conditions:

• Model Limits: Calculations for "Winter Confidence" assume a healthy vehicle battery; they do not account for batteries with high internal resistance due to age.
• Seal Material: Models assume silicone or TPE gaskets; results may vary for older devices using rubber O-rings which are more prone to dry-rot.

Disclaimer: This article is for informational purposes only. Performing a disassembly may void your manufacturer's warranty. If your device is used for life-critical applications or exhibits signs of battery swelling after a drop, do not attempt to repair it; contact the manufacturer or a certified technician immediately.

References

• EU General Product Safety Regulation (EU) 2023/988
• IEC 60529: Degrees of protection provided by enclosures (IP Code)
• SAE J537: Storage Batteries - Cranking Amps Standards
• Fanttik 2026 Modern Essential Gear Industry Report
• NIOSH: Musculoskeletal Disorders and Workplace Factors
