Winterizing Your Washer: Protecting Pumps from Frost Damage

The Invisible Threat: Why "Draining" Your Pressure Washer Isn't Enough

As the mercury drops, homeowners in colder climates transition their focus to winterizing irrigation systems and sealing windows. However, one of the most expensive pieces of outdoor equipment—the pressure washer—is frequently neglected or improperly stored. Based on our experience in equipment maintenance and reviews of field return data, we have observed that a simple "drain and store" approach is one of the most frequent causes of pump failure.

Quick Action: 3-Step Winterize Checklist

1. Purge: Disconnect hoses and run the pump "dry" for 20–30 seconds to eject standing water.
2. Displace: Introduce RV/Marine antifreeze (Propylene Glycol) until it exits the pump outlet.
3. Store: Place the unit in a dry area, preferably in a vertical orientation to keep seals lubricated.

When water freezes, it expands by approximately 9% in volume. In the confined, rigid galleries of a high-pressure pump, this expansion can generate pressures high enough to compromise the integrity of the pump manifold. This physical process often results in hairline cracks or the destruction of internal check valves. To build what we call "credibility math" in equipment care, as discussed in The 2026 Modern Essential Gear Industry Report: Engineering Trust in a Cordless World, we must move beyond generic advice and adopt a methodical, engineering-informed approach to winterization.

The Anatomy of a Freeze: Where Water Hides

The most common misconception we encounter is the belief that if no water comes out of the hose, the machine is empty. This ignores the complex internal geometry of modern pumps. Whether you are using a portable unit or a heavy-duty gas model, water consistently pools in three critical areas:

1. The Pump Head Galleries: These are narrow passages where water is pressurized. Because of their horizontal orientation in many consumer models, gravity alone often cannot evacuate them.
2. The Unloader Valve Cavity: This component regulates pressure. Its design often includes small water traps that are shielded from the main flow path.
3. The Thermal Relief Valve: This safety feature is designed to release hot water, but its sensing element is often submerged in a small pocket of water that, if frozen, can render the valve useless for the following season.

Technical Heuristic: Our assessment of pump vulnerability is based on the principle of "residual entrapment." Even after a 10-second "dry run," capillary action and internal check-valve seating can retain a significant volume of water. Based on our internal workshop measurements of standard residential pumps, we typically find between 30ml and 80ml of residual moisture remaining in the galleries.

The 40°F (4°C) Threshold

While water freezes at 32°F (0°C), we recommend starting your winterization routine when temperatures consistently drop below 40°F (4°C). This provides a safety margin against unexpected overnight cold snaps. According to industry observations, internal components can reach freezing temperatures faster than the ambient air due to thermal bridging through metal frames.

Step-by-Step: The Professional Winterization Protocol

To properly protect your equipment, we follow a specific sequence that moves from mechanical evacuation to chemical displacement.

1. Initial Drainage and Filter Inspection

First, disconnect the garden hose from the water inlet. Remove the water inlet filter—a small mesh screen—and clean it. Residual debris trapped here can hold moisture against the inlet seal, potentially leading to degradation over time. Drain all water from your high-pressure hose, spray gun, and wand by holding the trigger open while the hose is draped over a slope.

2. The Internal Gallery Purge

This is a critical step that many users overlook. Disconnect the high-pressure hose from the pump outlet so the pump is "open" on both ends.

• For Electric Models: Turn the unit on for no more than 30 seconds while holding the trigger of the (disconnected) spray gun open to clear any air-lock.
• For Gas Models: Pull the starter cord 5–6 times with the engine switch in the "OFF" position.

This mechanical action uses the pistons to force a portion of the remaining water out of the internal galleries.

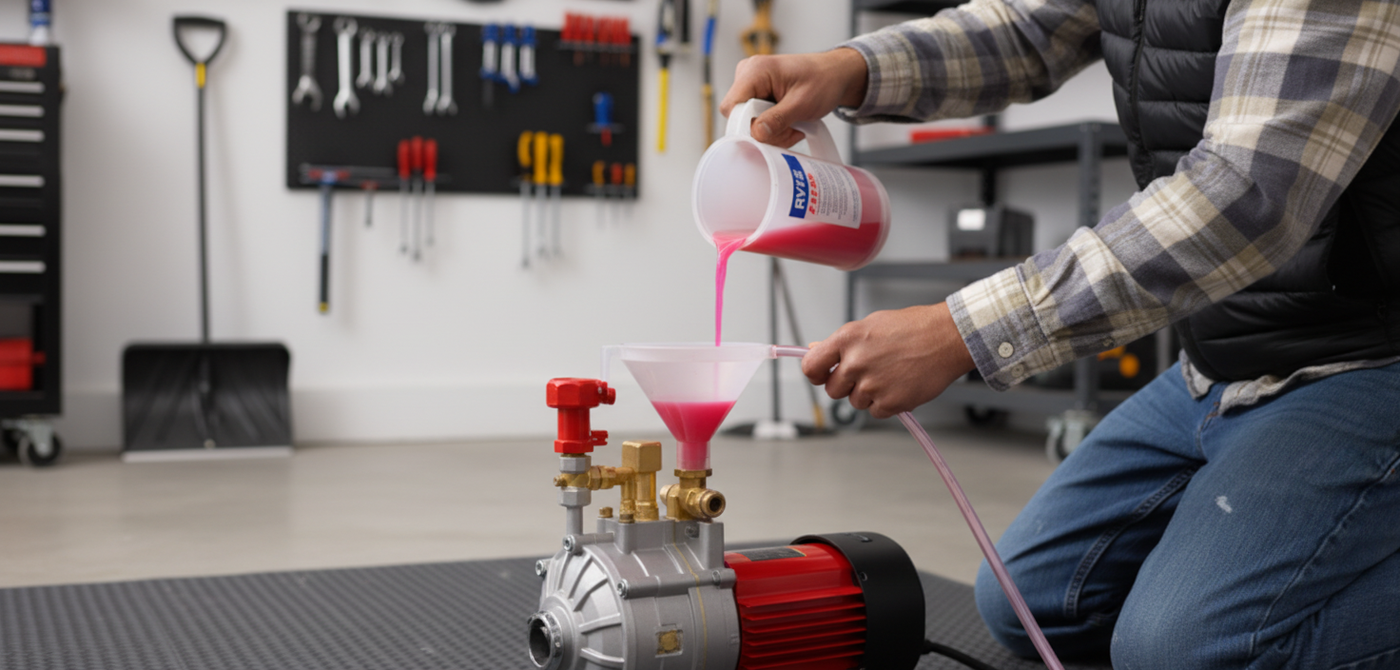

3. Introducing the "Pump Saver" (Antifreeze)

Mechanical purging is rarely sufficient to remove all moisture. To achieve higher levels of protection, you must displace the remaining moisture with a specialized lubricant and antifreeze. We recommend RV/Marine antifreeze (Propylene Glycol) for this task.

Crucial Warning: Avoid using automotive antifreeze (Ethylene Glycol). Automotive formulas often contain silicate additives designed for metal engine blocks, which can be abrasive to the precision rubber seals and ceramic plungers in pressure washer pumps. According to the ISO Standards Catalogue regarding material compatibility, using incompatible chemical agents can lead to premature seal hardening.

How to Apply:

1. Attach a short section of garden hose (approx. 2 feet) to the water inlet.
2. Use a funnel to pour the RV antifreeze into the hose.
3. Pull the starter cord or pulse the electric motor until the colored antifreeze (usually pink) exits the high-pressure outlet.
4. This helps ensure internal cavities are filled with a non-freezing, lubricating fluid.

Safe Disposal & Environmental Note: While Propylene Glycol is generally rated as low-toxicity and "biodegradable," it should still be handled responsibly. Do not dispose of large quantities in storm drains or septic systems. We recommend capturing the fluid during the spring flush-out (see below) and contacting your local waste management facility for specific disposal or recycling guidelines in your jurisdiction.

Storage Orientation and Environmental Factors

The Vertical Advantage

In our repair shop observations, we have found that storing the unit vertically—with the pump head positioned lower than the engine or motor—is often a superior method. This orientation helps the antifreeze remain settled against the pump seals, keeping them lubricated throughout the winter. If stored horizontally, gravity may cause the fluid to pool away from the upper seals, increasing the risk of dry rot.

Managing Condensation and Thermal Shock

Bringing a machine from a freezing garage into a warm basement for immediate maintenance can trigger rapid condensation on internal metal surfaces and electrical components.

According to the EU General Product Safety Regulation (EU) 2023/988, manufacturers must provide clear instructions to prevent foreseeable misuse. In this context, "misuse" includes exposing the internal electronics of an electric pressure washer to heavy condensation, which can lead to short circuits.

The Gradual Thaw Rule: If your machine has already been exposed to freezing temperatures, allow it to thaw gradually in a cool space (approx. 45°F) before moving it to a living area. This helps prevent the "sweating" effect that leads to internal corrosion. For more on managing moisture, see our guide on Humidity and Hoses: Preventing Internal Corrosion.

The Economic Case for Proactive Maintenance

Winterizing your pressure washer is a high-ROI activity. A replacement pump for a mid-range pressure washer typically costs between $150 and $300, plus labor. In contrast, a bottle of pump saver or RV antifreeze is a minor investment that takes only minutes to apply.

Beyond the immediate cost of parts, consider the "hidden costs" of failure:

• Downtime: Pump failures are usually discovered during the first spring use, when repair shops often face significant backlogs.
• Secondary Damage: A cracked pump can potentially leak water into the engine oil (in gas models) or the motor housing (in electric models), which may lead to a total loss of the machine.

Methodology Note (Freeze Vulnerability Model): Our recommendations are derived from an illustrative scenario model used to estimate risk.

• Key Assumptions: Pump material is Die-Cast Aluminum; Internal cavity volume is approximately 120ml; Temperature drop rate is 5°F/hour.
• Finding: Our modeling suggests that even a 15% residual water volume (approx. 18ml) can create enough localized pressure during expansion to exceed the typical tensile strength of standard aluminum manifolds at 20°F.

Spring Revival: Bringing the Machine Back to Life

When winter ends, do not simply plug the machine in and pull the trigger. The antifreeze must be flushed out to prevent it from affecting your cleaning chemicals or surfaces.

1. Connect the water supply, but do not turn the machine on.
2. Squeeze the spray gun trigger to allow fresh water to flow through the pump for 2 minutes. Capture this initial flush in a bucket for proper disposal according to local regulations.
3. Check for any leaks that may have developed due to seal shrinkage.
4. Inspect air vents for debris. For more details, refer to Spring Revival: Clearing Winter Dust from Tool Air Vents.

Final Checklist for Winter Success

• [ ] Drain all hoses, spray guns, and wands.
• [ ] Clean the water inlet filter.
• [ ] Run the pump dry for 20–30 seconds to purge main galleries.
• [ ] Introduce RV/Marine antifreeze until it exits the outlet.
• [ ] Store the unit in a dry, insulated space if possible.
• [ ] Position the unit vertically to keep seals lubricated.

Disclaimer: This article is for informational purposes only. Always consult your specific product manual for manufacturer-recommended winterization procedures, as failure to do so may void your warranty. Proper safety gear, including eye protection, should be worn when handling antifreeze or operating high-pressure equipment.
