How to Set Different Front and Rear Tire Pressures With a Portable Inflator

To set different front and rear tire pressures, give each axle its own target. Inflate both front tires to your vehicle's front PSI and both rear tires to its rear PSI. Those numbers come from your vehicle's tire label or owner's manual, not from one universal setting or from the tire itself.

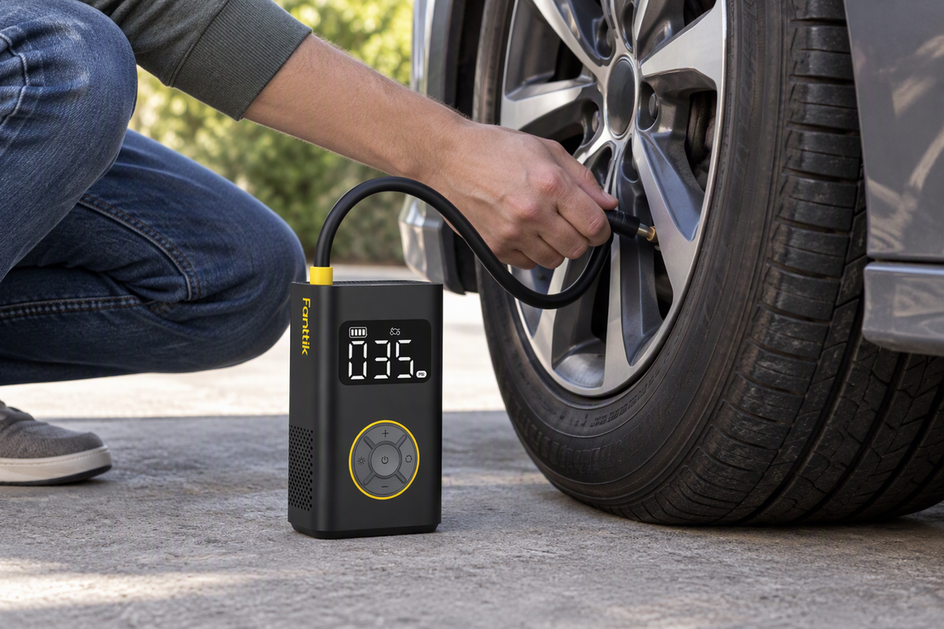

Check the pressure while the tires are cold, then adjust one tire at a time until each reading matches the value for its axle. A portable inflator makes this easy to do in your driveway before you drive anywhere.

How to Set Different Front and Rear Tire Pressures

Find the correct front/rear tire pressure first, then work around the car one axle at a time. The inflator supplies the air, but your vehicle documentation sets the number.

Find the Vehicle's Front and Rear Cold Targets

Your targets are already printed for your vehicle. Before you power on the inflator, write down both values so you never have to guess mid-job.

• Where to look: According to NHTSA's recommended-pressure and cold-reading guidance, the recommended pressure is on the Tire and Loading Information label on the driver's side door edge or door post, or in the owner's manual.
• Which number goes where: The label lists a front value and a rear value. The front number applies to both front tires. The rear number applies to both rear tires. Don't average them or use one for all four.
• When the reading counts as cold: NHTSA defines a cold tire as one that hasn't been driven on for at least three hours. Checking before your first drive of the day is the simplest way to meet that.
• What the sidewall number means: The pressure molded into the tire sidewall is the tire's maximum, not your vehicle's recommendation. NHTSA states that the correct pressure is what the vehicle manufacturer lists, not what is printed on the tire.
• When a load-specific option exists: Some vehicle documentation lists a second set of front and rear values for a particular load condition. Use those values only if your label or manual lists them and your current load matches the stated condition.

The placard numbers are not arbitrary. For vehicles covered by federal rules, federal placard regulations require displayed pressures to fit applicable load limits. The label must list the manufacturer's recommended cold pressure for front and rear tires, and include the spare tire unless the vehicle has no spare (marked "none") or uses a full-size spare matching an active tire (which may state "see above"). That rule does not give drivers a formula for adding PSI under heavier loads, so don't calculate your own adjustment. If you're packing the car for a long trip, our guide to loaded-vehicle pressure explains why there's no universal extra-PSI rule and how to work from the placard instead.

Stop and get help if the label or manual doesn't give you clear targets for the tires on the car now. That can happen with a missing or unreadable label, or with tires that differ from the original setup. In that case, contact the vehicle manufacturer or a qualified tire shop rather than guessing.

Inflate and Check Each Axle Separately

Work axle by axle so the inflator setting and your target always match the tire in front of you. Starting with the front pair and finishing with the rear pair keeps the order simple.

1. Start with the front tires. Remove the valve cap from one front tire and take a reading. Compare it with the front target you wrote down.
2. Set or monitor the front target. If your inflator's manual documents a target-pressure setting, enter the front value with that control. If it doesn't, or you aren't sure how the control works, inflate in short bursts and check the pressure with a tire gauge between bursts.
3. Add or release air based on the gap. NHTSA's steps have you note the difference between the measured pressure and the correct pressure. If the tire reads below target, add air. If it reads above, release air gradually by pressing the valve core briefly, then check again. Repeat until the reading matches.
4. Repeat on the other front tire. Use the same front target. Replace both valve caps when you finish.
5. Switch to the rear target before touching a rear tire. If your inflator holds a target value, change it to the rear value now. If you're working with a gauge, swap the number in your head before you start.
6. Adjust both rear tires. Follow the same read, add or release, and recheck routine, using the rear value for each one.
7. Confirm all four readings. Do a final pass with the gauge. Each front tire should match the front target, and each rear tire should match the rear target.

Two quick checks make the final readings more trustworthy. First, if your inflator's display and a separate gauge disagree, use the steps for checking digital gauge accuracy before you trust either number. Second, write down each tire's starting reading. A tire that started far lower than the rest, or keeps dropping between checks, may not be holding air. In that case, see why one tire keeps losing air before you treat the job as done.

Once all four tires match their axle targets and the caps are back on, you're done.

FAQs

Is it normal for the front and rear PSI to be different?

Yes, when your vehicle's label or manual lists them that way. NHTSA advises checking that all tires have the same pressure except when the front and rear tires are supposed to have different amounts. If your placard shows two values, using two values is correct. If it shows one, use that one number for all four tires.

Should I inflate to the number printed on the tire?

No. The sidewall figure is the tire's maximum pressure, not the pressure your vehicle needs. NHTSA's cold-tire and recommended-pressure guidance says the correct pressure is the one the vehicle manufacturer lists on the door-edge label or in the owner's manual.

How long should the car sit before I check the pressure?

At least three hours without driving. That's how NHTSA defines a cold tire, and recommended pressures are cold-tire values. Checking in the morning before you leave, or after the car has been parked all afternoon, meets that condition.

Does the spare tire have its own pressure?

Check your vehicle's placard or manual to confirm its spare tire specification. Under federal placard rules, the placard lists a cold inflation pressure for the spare unless the vehicle has no spare tire (marked "none") or the spare matches the active front or rear tires (which may state "see above"). If an explicit pressure is listed for your spare, check and set it to that specific target rather than assuming front or rear values apply.
