Auditory Diagnostics: Identifying Abnormal Motor Noises

Auditory Diagnostics: Translating Motor Sounds into Mechanical Health

Your portable tire inflator is more than a simple pump; it is a precision-engineered electromechanical system. When you press the start button, the sound it produces is a continuous stream of diagnostic data. To the untrained ear, it is just noise. To an experienced technician or a proactive DIY owner, it is a language. Identifying a grinding bearing or a chattering valve before a total failure occurs can mean the difference between a simple maintenance task and a discarded unit.

In the world of high-performance gear, trust is built on reliability. As outlined in The 2026 Modern Essential Gear Industry Report: Engineering Trust in a Cordless World, modern essential tools must move beyond aesthetics to demonstrate "credibility math"—the systematic engineering of transparency and safety. Understanding what your motor is telling you is the first step in maintaining that trust in your own garage.

The Physics of Sound in Portable Inflators

To diagnose abnormal noises, we must first understand the "normal" acoustic profile of a high-quality portable inflator. Most modern, high-output units utilize brushless DC (BLDC) motors or high-efficiency brushed motors coupled with a reciprocating piston.

The Baseline Acoustic Profile

A healthy motor produces a consistent, rhythmic hum. This sound is composed of three primary layers:

1. The Mechanical Whir: The sound of the motor shaft spinning at high RPM.
2. The Piston Thump: A lower-frequency vibration caused by the rapid compression of air within the cylinder.
3. The Air Rush: The high-velocity movement of air through the intake and exhaust valves.

In high-load scenarios—such as inflating large SUV tires—the pitch of these sounds typically deepens as the motor works against increasing back-pressure. However, when the sound becomes erratic, sharp, or excessively high-pitched, it indicates that the system is operating outside its intended mechanical parameters.

The Diagnostic Library: Identifying Abnormal Noises

Based on pattern recognition from our repair benches and customer support data, we have categorized the most common auditory "red flags."

1. Cyclical Grinding: The Bearing Warning

A true failing ball bearing produces a consistent, cyclical grinding or "crunching" sound. This noise is often the result of lubrication breakdown or the ingress of fine particulates into the bearing race.

• The Heuristic: If the grinding sound changes pitch in direct proportion to the motor speed, the issue is almost certainly mechanical and related to the rotating assembly.
• The Risk: Continued operation with a failing bearing increases friction, leading to heat buildup that can eventually melt the motor housing or seize the shaft entirely.

2. Erratic Valve Chatter: Debris in the System

Valve chatter is often confused with bearing noise, but the two have distinct signatures. Chatter is erratic and "tinny." It occurs when the intake or exhaust flapper valves cannot seat properly.

• The Professional Insight: Valve chatter is frequently caused by a speck of debris. A practical observation from our workshop is that this noise often diminishes or disappears after the unit runs for 15–20 seconds, as the high-velocity air expels the debris.
• Checklist for Chatter:
  • Does the noise start immediately but fade? (Likely debris).
  • Is the noise inconsistent with motor RPM? (Likely valve-related).

3. High-Pitched Whining: Electrical Stress and PWM

In compact, brushless motor designs, a high-pitched, piercing whine often points to electrical issues rather than mechanical ones. This is frequently related to the Pulse Width Modulation (PWM) controller or stator winding insulation breakdown.

• The Mechanism: PWM is the method used to control motor speed by rapidly switching power on and off. If the frequency of this switching interacts with a loose stator winding, it creates an audible "singing" noise.
• The Risk: While a slight whine is normal for some electronics, a sudden increase in volume or pitch under load suggests that the insulation on the copper windings is degrading due to heat.

4. Rhythmic Knocking: Piston and Seal Fatigue

A heavy knocking sound, similar to a "thump-thump," usually indicates a problem in the compression chamber. This could be a worn connecting rod or a piston seal that has lost its lubrication and is "slapping" against the cylinder wall.

Methodology Note: These diagnostic patterns are derived from common issues observed in workshop environments and are intended as heuristics (rules of thumb) for quick identification, not as a substitute for professional laboratory acoustic analysis.

Practical Field Diagnostics: The "Screwdriver Stethoscope"

When a noise occurs, isolating the source is critical. Because portable inflators use compact housings, sound resonates through the entire plastic or metal shell, making it difficult to pinpoint the origin.

The Screwdriver Stethoscope Method

1. Safety First: Ensure your hair, clothing, and fingers are clear of the air intake and any moving parts.
2. The Tool: Use a long, solid-handle screwdriver with a metal shaft.
3. The Technique: Place the metal tip of the screwdriver firmly against different points on the inflator housing. Press your ear against the handle of the screwdriver.
4. Isolate the Sound:
   • Near the Motor Base: If the grinding is loudest here, it confirms a bearing issue.
   • Near the Cylinder Head: If the knocking or chatter is loudest here, the issue is in the piston or valves.

The 20% Performance Rule

Based on our internal field data, we use a specific performance-to-noise ratio to determine the severity of a fault. If a new, abnormal noise is accompanied by a reduction in inflation speed of more than 20%, it typically indicates a mechanical failure requiring immediate intervention, such as a compromised piston seal or a major valve leak.

Scenario Analysis: The Heavy-Duty SUV Stress Test

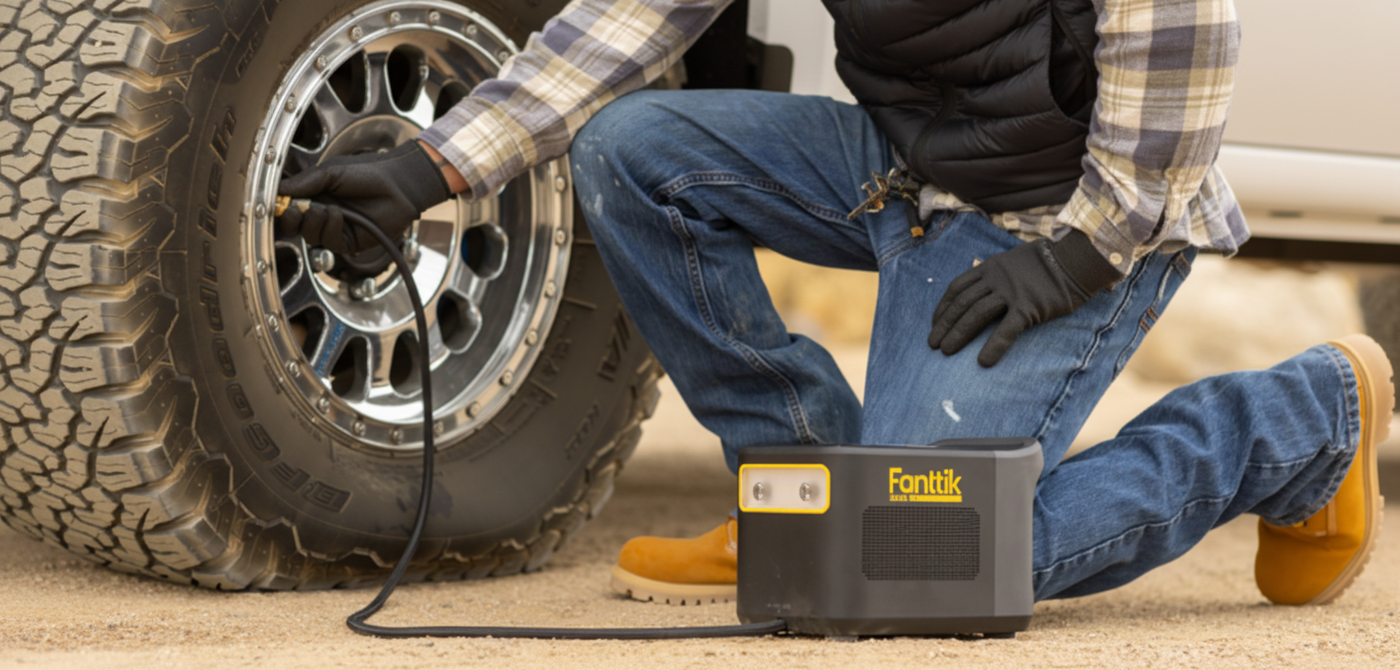

To understand how auditory warnings manifest in real-world use, we modeled a high-load scenario involving a heavy-duty SUV (e.g., Chevy Tahoe or Ford Expedition) using a portable unit like the X8 Apex.

Modeling Note (Reproducible Parameters)

This analysis is a scenario model, not a controlled lab study. It assumes the following parameters based on common industry heuristics and ISO metric tire geometry.

The Thermal Impact

Under these conditions, inflating a full set of four tires requires approximately 26 minutes of continuous runtime. Using the Ideal Gas Law and an adiabatic index of 1.4 for air, the theoretical temperature rise of the compressed air can reach ~159°C (328°F) before dissipation.

Qualitative Insight for Heavy Users: During this extended operation, the motor and lubricants are under extreme thermal stress. Heavy SUV owners should listen for a high-pitched whine that increases in pitch as the session progresses. This is a sign of stator winding stress. If you hear this, we recommend pausing for 15 minutes to allow the unit to cool, even if the thermal protection hasn't triggered yet. Proactive cooling can significantly extend the life of the internal electronics.

Prevention: The Realistic Repair Window

For many modern portable inflators, the "repair window" is actually before the noise starts. Many units use potting compounds for vibration resistance and welded housings for durability, making them difficult to service once internal components fail.

Proactive Maintenance Checklist

To avoid the noises described above, follow these engineering-backed steps:

1. Air Intake Filter Maintenance: Dust is the primary enemy of valves and bearings. Periodically check the intake area for fine dust accumulation. According to the International Electrotechnical Commission (IEC) 60529 standards, maintaining the integrity of ingress protection is vital for tool longevity.
2. Cycle Management: Avoid running the unit to its absolute thermal limit. For every 10–15 minutes of continuous use, allow a 5-minute "rest" period.
3. Storage Environment: Store the unit in a dry, temperature-controlled environment. Extreme cold can thicken lubricants, causing a "labored" sound upon startup, while extreme heat can degrade battery chemistry and seal integrity.

Trust, Safety, and Compliance

When performing DIY diagnostics, it is essential to understand the regulatory context of your tools. In the European Union, the General Product Safety Regulation (EU) 2023/988 mandates that products must be safe under "reasonably foreseeable conditions of use." This includes the user's ability to identify and respond to warning signs like abnormal noises.

Furthermore, when evaluating performance claims or "life-extending" hacks found online, ensure they align with the FTC Endorsement Guides (16 CFR Part 255). Many "miracle fixes" for motor noise can actually compromise the safety of the device or void your warranty.

Summary of Auditory Cues

By learning to "listen" to your motor, you transition from a passive user to an active steward of your gear. This auditory expertise not only saves money by preventing total tool failure but also ensures that when you are on a remote trail or a dark roadside, your equipment is as ready as you are.

Disclaimer: This article is for informational purposes only. Tire inflators are high-pressure devices and contain lithium-ion batteries. Always refer to your specific product manual for safety warnings. Do not attempt to disassemble a unit while it is powered or if it has a welded housing, as this may pose a fire or injury risk. If you are unsure about a specific noise, contact the manufacturer's technical support team.
