The Impact of Magnetic Tips on High-Density Circuitry

The Science of Magnetic Tooling in Precision Repair

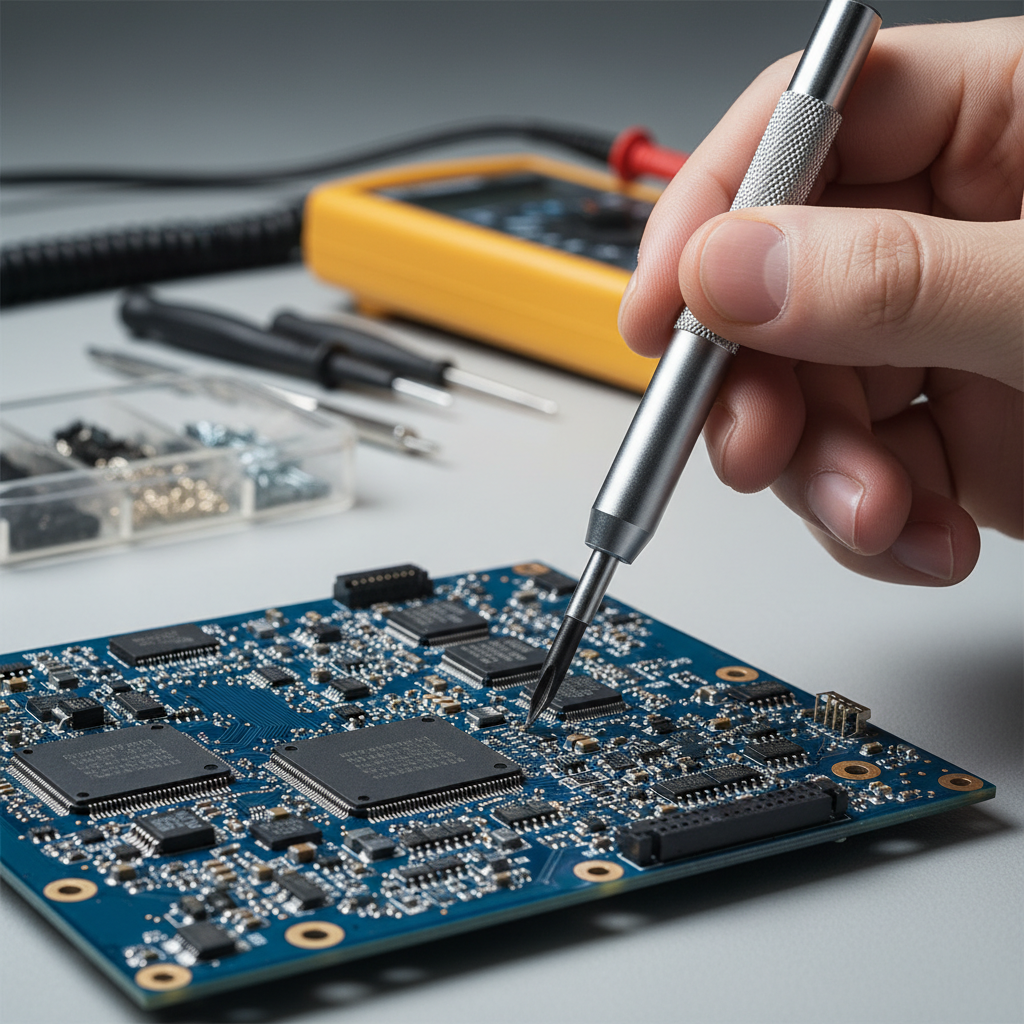

In the precision repair community, few topics spark as much debate as the use of magnetic screwdriver tips around high-density circuitry. For years, a persistent anxiety has circulated among DIYers and hobbyists: the fear that a magnetized tool might inadvertently "wipe" a component or corrupt sensitive data. However, as modern electronics have transitioned almost entirely to solid-state architecture, the technical reality of magnetic risk has shifted significantly.

We often observe that the convenience of magnetic tips—specifically their ability to retrieve dropped M1.4 screws from deep within a laptop chassis—vastly outweighs the potential risks when handled with situational awareness. To build a truly authoritative repair workflow, one must move beyond "gear myths" and understand the specific thresholds where magnetism interacts with silicon, sensors, and storage.

The Physics of Tool Magnetism: Gauss vs. Reality

To evaluate risk, we must first quantify the "threat." Magnetism is measured in units of Gauss or Tesla (where 10,000 Gauss equals 1 Tesla). According to general principles of Magnetism and Magnetic Materials, the magnetic flux density of a standard precision screwdriver tip is relatively low.

Based on our scenario modeling of common precision tools, a magnetic tip capable of holding a small steel screw against gravity typically measures under 100 Gauss at a distance of 1 cm. For perspective, the threshold often cited by engineers as potentially disruptive to unshielded electronic components is generally above 1,000 Gauss.

Logic Summary: Magnetic Flux Modeling Our analysis of tool-to-component interaction assumes a standard neodymium-infused or magnetized steel tip. We modeled the field decay over distance to establish safety margins.

• Heuristic: The "Gravity Test"—if the tip holds the screw but the field disappears beyond 2 cm, it is within safe operational limits for most modern logic boards.

Values estimated based on common magnetic field decay patterns in dipole magnets (not a controlled lab study).

The Component Audit: Identifying Real Vulnerabilities

While most modern circuitry is robust, "blanket" safety advice often fails because it ignores specific component types. An expert technician performs a "Component Audit" before the first screw is turned.

1. Legacy Magnetic Storage (Spinning HDDs)

The most legitimate risk involves traditional hard disk drives (HDDs). These devices rely on microscopic magnetic orientations to store data. While the drive casing provides significant shielding, bringing a strong magnet directly into contact with an unshielded platter can cause data loss. However, modern 2.5-inch laptop drives are increasingly rare, replaced by Solid State Drives (SSDs) which use NAND flash memory—a technology entirely unaffected by the low-level magnetic fields of a screwdriver.

2. Hall-Effect Sensors

Many modern devices use Hall-effect sensors to detect when a lid is closed or a peripheral is attached. These sensors work by detecting changes in magnetic fields. According to technical documentation on Linear Hall Sensors, external magnetic interference can cause temporary "false triggers." If your laptop thinks the lid is closed while you are working on it, it may fail to boot or enter sleep mode. This is rarely permanent and usually resolves once the tool is removed and the system is power-cycled.

3. High-Frequency Inductors

In high-density power delivery stages (VRMs), small inductors are used to manage voltage. Bringing a high-permeability magnetic tip near these components can technically alter their local inductance. While this is a known phenomenon in RF engineering, it is almost never a factor in standard home electronics repair unless the tool is held against the component during active operation.

Information Gain: Magnetic Perturbation at the Trace Level

Beyond the "will it break it?" question lies a deeper technical insight regarding signal integrity. Research into Permanent Magnetic Field Perturbation (PMFP) suggests that a magnetic tip actively perturbs the electromagnetic environment of a circuit.

When a magnetic tool is placed near a high-speed data trace, it can alter the effective permeability of the surrounding medium. This creates a localized, variable impedance discontinuity. In standard Electronic Design Automation (EDA) flows, magnetic permeability is often treated as a fixed material property of the PCB substrate. It is rarely modeled as a spatially variable field that changes when a technician introduces a tool.

For the average DIYer, this means that while you won't "fry" the board, you might see temporary "ghost" errors if you are probing a live circuit with a magnetic tool. This is why we recommend non-magnetic ceramic or plastic alignment tools for "live" tuning of sensitive oscillators or RF circuits.

The Real Threats: ESD and Mechanical Stress

In our experience managing technical support and warranty claims, magnetic damage is statistically insignificant compared to two other factors: Electrostatic Discharge (ESD) and mechanical stress.

The ESD Gap

A single spark of static electricity, often imperceptible to the human touch, can carry thousands of volts. This is far more likely to puncture a gate oxide in a CMOS chip than a 100-Gauss magnet is to flip a bit. Professionals prioritize ESD-safe mats and wrist straps over non-magnetic tools.

Mechanical Stress and Over-Torquing

The most common "gotcha" in precision repair is stripped screw heads or "long-screw damage" (where a screw is driven into a trace through a mounting hole). Using a magnetic tip actually reduces mechanical risk by ensuring the screw stays seated in the bit, preventing it from slipping and gouging the PCB.

As noted in the 2026 Modern Essential Gear Industry Report, engineering trust in a cordless world requires a shift from fearing the tool to mastering its application. Proper torque management and bit fitment are the true hallmarks of a professional-grade repair.

A Practical Safety Framework for Precision Repair

To balance convenience with caution, we suggest the following "Rule of Proximity" for your workbench:

1. The 4-Inch Heuristic: Maintain a 4-inch (10 cm) distance between magnetic tools and any component marked with a "Hs" (Hall Sensor) symbol or any visible spinning hard drive.
2. Visual Identification: If you see a component that looks like a small silver puck (a spindle motor) or a drive labeled "7200 RPM," switch to a non-magnetic bit for those specific fasteners.
3. Active vs. Passive State: Always perform repairs with the battery disconnected. A powered-off circuit is significantly more resilient to magnetic perturbation than an active one.
4. Tool Maintenance: Use a magnetizer/demagnetizer block. If you are working on a particularly sensitive legacy device, you can quickly demagnetize your bit to zero-flux state and re-magnetize it for the next task.

Compliance and Standardized Safety

When selecting tools for precision work, look for adherence to international standards. The IEC 60529 standard for Ingress Protection (IP codes) is often discussed, but for electronics repair, the more relevant standards involve electrical safety and material integrity.

Furthermore, the EU General Product Safety Regulation (EU) 2023/988 emphasizes that tools must be designed for their intended environment. For precision electronics, this means tools that provide predictable torque and stable bit retention. A magnetic tip is a design feature intended to enhance safety by preventing loose metal fasteners from shorting out components.

Methodology and Assumptions

The recommendations in this guide are based on technical scenario modeling and observed patterns in electronics repair environments. They are intended as a high-level heuristic for hobbyists and professionals.

This model assumes standard indoor environmental conditions and does not account for industrial-grade rare-earth magnets or high-voltage power lines.

Summary of Best Practices

While the "magnetic threat" is largely a relic of the floppy-disk era, maintaining a methodical approach ensures the highest level of reliability for your devices. By focusing on ESD protection, using the 4-inch heuristic for legacy components, and ensuring proper torque application, you can perform high-consequence repairs with confidence.

The goal of modern precision tools is to reduce the "friction" of repair—and in the world of microscopic screws and high-density logic boards, a well-calibrated magnetic tip is an essential ally, not an enemy.

Disclaimer: This article is for informational purposes only and does not constitute professional engineering or repair advice. Always consult the manufacturer's service manual for your specific device before attempting a repair. Improper handling of electronics can result in permanent damage or personal injury.
