In the modern home workshop, high-discharge lithium-ion batteries serve as the lifeblood of precision and mobility. Whether powering a high-torque rotary tool or a precision screwdriver, these energy-dense cells operate under significant thermal and chemical stress. While the convenience of cordless technology is undeniable, the charging phase represents the most critical window for maintaining system integrity and workshop safety.

⚡ The 5-Step Essential Charging Protocol (Answer-First)

1. Cool Down: Wait 30–45 minutes post-use until the battery is neutral to the touch.
2. Inspect: Check terminals for dust, "green" oxidation, or physical casing damage.
3. Isolate: Charge on a non-combustible surface (tile/concrete) away from sawdust.
4. Monitor: Check for unusual heat or odors during the first 10 minutes of the cycle.
5. Unplug: Remove from the charger once full; never leave batteries on a charger for seasonal storage.

High-discharge batteries require specific safety protocols during the charging phase to prevent "thermal runaway"—a self-sustaining reaction where internal heat causes cells to vent or ignite. This article outlines the correct sequence and environmental conditions for safe energy distribution, moving beyond generic manual warnings to provide a methodical, engineering-based approach to power management. As noted in the 2026 Modern Essential Gear Industry Report, building a culture of safety is the primary competitive advantage for the modern prosumer.

1. The Thermal Threshold: Why Cooling is Non-Negotiable

A common pattern observed in workshop environments—based on Fanttik customer support data and warranty return analysis—is the immediate connection of a battery to a charger after high-drain use. When a tool like the Fanttik F2 Master Cordless Rotary Tool Kit is used for sustained grinding at 25,000 RPM, internal cell resistance generates significant heat.

Charging a battery while it is still warm (above 40°C/104°F surface temperature) can accelerate chemical degradation and increase the risk of lithium plating. This occurs when ions cannot intercalate into the anode fast enough at elevated temperatures, leading to metallic buildup that can eventually compromise the internal separator.

The Ambient Equilibrium Protocol:

• Wait Time: Allow batteries to rest for at least 30 to 45 minutes after use. (Note: This is a heuristic based on the typical thermal mass of 18650/21700 cell packs to ensure core-to-surface equilibrium).
• Tactile Check: The casing should feel neutral to the touch, not "warm."
• Active Cooling: Avoid placing a hot battery in a refrigerator or directly in front of an AC vent; rapid temperature shifts can cause internal condensation.

Quick Checkpoint: If you don't have an infrared thermometer, use the "back of the hand" test. If the battery feels warmer than your skin, it is not ready for the charger.

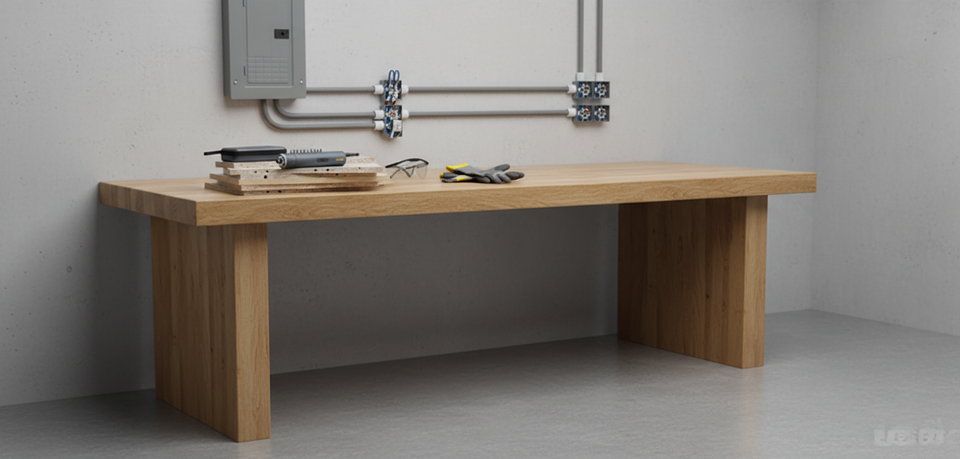

2. Electrical Infrastructure: The 1.5x Rule for Circuit Management

A workshop's electrical safety is only as strong as its weakest link. High-performance chargers can draw significant current during the "Constant Current" phase. To prevent nuisance breaker trips, we recommend the 1.5x Rule for Circuit Load.

If your charging station draws a combined 10 amps, the circuit's continuous rating should be at least 15 amps. This 50% safety margin accounts for startup surges and prevents "heat creep" in residential wiring.

Workshop Wiring Specifications:

• Dedicated Circuits: Avoid sharing a charging circuit with high-draw tools like table saws.
• Surge Protection: Use high-quality power strips (minimum 2000 Joules).
• Verification: Periodically check the temperature of wall outlets. A warm faceplate indicates a loose connection or overloaded wiring.

Methodology Note: The 1.5x Rule is a practical shop heuristic derived from NFPA 70 (National Electrical Code) guidelines, which suggest that continuous loads should not exceed 80% of a circuit's rated capacity.

3. Contact Maintenance: Preventing Resistance Buildup

Battery contact corrosion is a subtle but significant issue. Over time, workshop dust and humidity create oxidation on the terminals. This increases resistance, generating heat at the connection point rather than delivering energy to the cells.

For tools requiring precision voltage, such as the Fanttik E2 MAX Precision Electric Screwdriver, a quarterly maintenance routine is recommended.

The Quarterly Cleaning Protocol:

1. Inspection: Use a flashlight to check for dullness or "greenish" tint on copper contacts.
2. Solvent: Apply 90% or higher Isopropyl Alcohol to a lint-free swab.
3. Mechanical Cleaning: For stubborn oxidation, use a fiberglass scratch brush. Avoid steel wool, as stray fibers can cause a short circuit.

Brand-Observed Data: Based on Fanttik's internal analysis of connector oxidation, maintaining clean terminals can reduce charging temperatures at the plug interface by an estimated 5–10°C (measured under standard 25°C ambient conditions).

4. Storage and Longevity: The 40-60% SoC Sweet Spot

Storing a battery at 100% charge for long periods can cause internal stress that accelerates capacity loss. Conversely, storing at 0% can lead to "over-discharge," where the Battery Management System (BMS) may permanently disable the pack for safety.

For seasonal storage—such as managing tools in unheated winter garages—aim for a 40-60% State of Charge (SoC).

Verification Method: For high-value packs, use a digital multimeter. For a standard 18V/20V Max pack (5 cells in series), a reading of approximately 18.5V to 19.0V indicates a healthy storage level. This range is widely accepted in IATA Lithium Battery Guidance for transport and long-term stability.

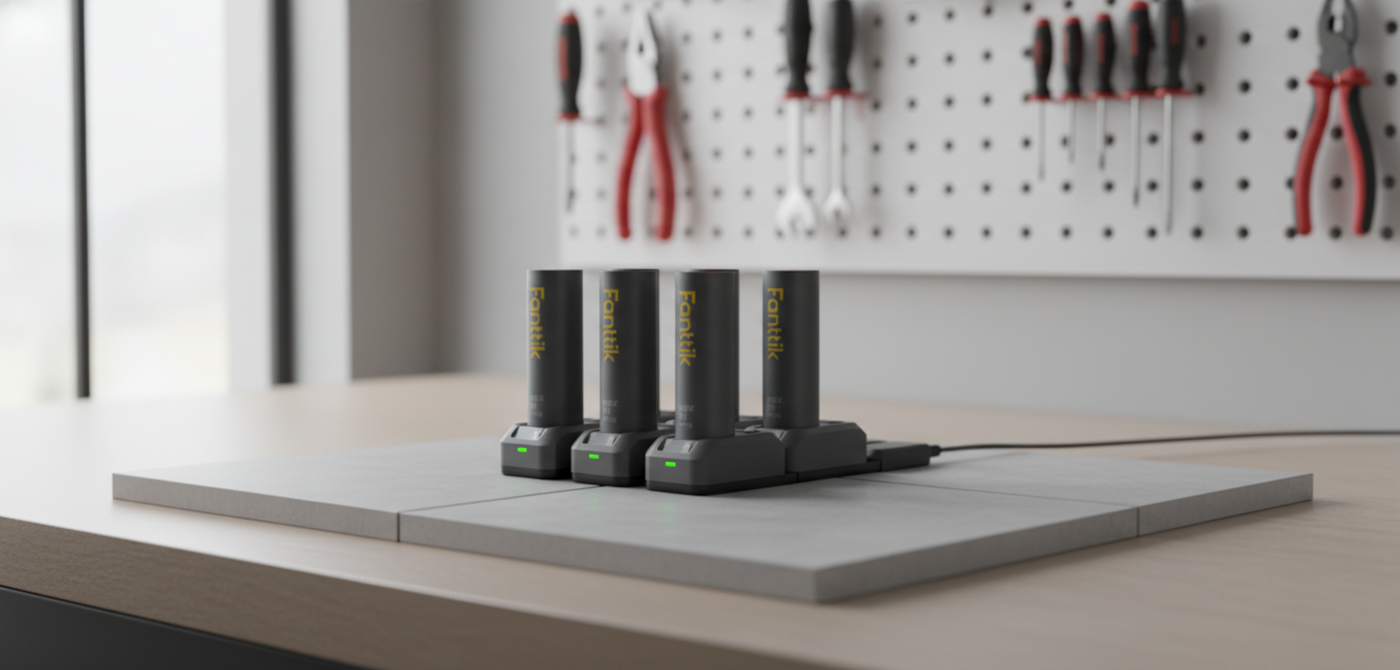

5. Environmental Safety: Designing the Charging Zone

The physical environment is your final line of defense. A case study by the FDNY highlighted that many workshop fires are exacerbated by charging on combustible surfaces like wooden workbenches.

The "Safe Zone" Checklist:

• Surface: Use ceramic tile, a fire-resistant mat, or concrete.
• Clearance: Maintain a 3-foot "air gap" from sawdust or chemicals.
• Ventilation: Never charge inside a closed drawer or plastic bin.
• Surveillance: Avoid charging overnight or while away from the shop.

Emergency Mitigation Strategy:

• Incipient Stage: A bucket of dry sand can smother a small, smoking pack.
• Advanced Stage: Use an F-500 encapsulator or a Class D extinguisher if available.
• Critical Stage: Evacuate and call emergency services. (Note: Specific fire response protocols may vary by local jurisdiction).

6. Compliance and Industry Standards

Navigating the "protocol void" is a challenge for DIYers. OSHA notes that while no specific federal standard exists for small-scale charging, safety is governed by the "General Duty Clause," requiring an environment free from recognized hazards.

When selecting new tools, such as the Fanttik S2 Pro Cordless Electric Screwdriver, look for UL 62133-2 certification. This standard involves rigorous "crush tests" and thermal abuse testing to ensure the pack can handle workshop realities.

Disclaimer: This article is for informational purposes only and does not constitute professional electrical or safety advice. Battery technology and regulations vary by region. Always consult your specific product manual and local electrical codes. If you suspect a battery is damaged, contact a certified recycling center immediately.
