Managing Thermal Loads During Simultaneous Multi-Tool Charging

Managing Thermal Loads During Simultaneous Multi-Tool Charging

Quick Action Summary: How to Prevent Overheating

• The 3-Inch Rule: Maintain at least 3 inches of open air on all sides of every charger to prevent "heat traps."
• Capacity Limit: Keep the total wattage of all simultaneous chargers under 80% of your circuit’s rating (approx. 1,300W for a 15A circuit).
• Active Cooling: Use a small fan during summer; internal tests suggest this can lower casing temperatures by 10–15°C.
• Surface Safety: Charge on non-combustible surfaces like metal or stone, never on wood or carpet.

In the modern workshop, efficiency is often measured by the readiness of your tools. For the dedicated DIY enthusiast or small shop owner, a centralized charging station is the gold standard of organization. However, based on common patterns observed in customer support feedback and repair bench assessments, this convenience introduces a technical challenge: concentrated thermal loading.

Charging multiple lithium-ion batteries simultaneously creates a localized heat envelope that can compromise battery longevity and trigger safety shutdowns. A frequent mistake we see is placing multiple charging hubs in enclosed cabinets or against walls, which can inadvertently create a "heat trap."

The Thermodynamics of the "Charging Hub"

When you plug a battery into a charger, you are managing an energy conversion process where a portion of electrical energy is lost as waste heat. In a multi-tool hub, the thermal signatures of each charger and battery pack can overlap, creating cumulative heat.

Waste Heat and Passive Cooling Limits

While chargers are designed with internal heat sinks, passive cooling can sometimes be overwhelmed by the compounded thermal load of simultaneous high-capacity charging. If total waste heat exceeds the dissipation capacity of the components, it can lead to hotspots that may accelerate chemical degradation within the cells.

Lithium-ion batteries are sensitive to high-heat environments. Based on general battery degradation models, consistently charging tools in environments where internal temperatures frequently exceed 40°C (104°F) can lead to a noticeable reduction in the overall lifespan of a battery pack—potentially by 30% or more over several hundred cycles. This risk is higher in unconditioned garages where ambient temperatures are already elevated.

The Heuristic of Clearance

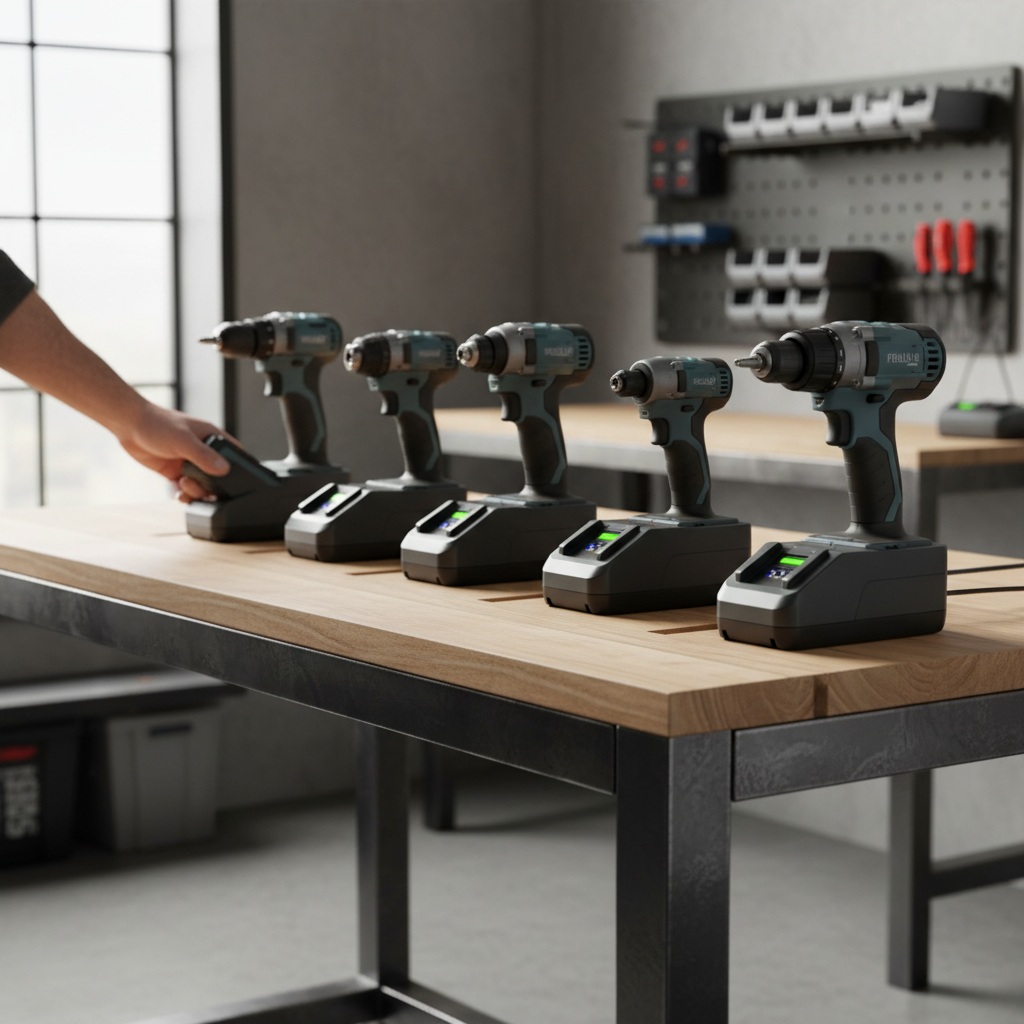

To mitigate this, we recommend a 3-inch clearance rule. This is a practical heuristic derived from workshop safety observations (not a mandated legal standard). Maintaining at least three inches of open air on all sides of a charging station encourages natural convection, helping to carry waste heat away from the sensitive Battery Management System (BMS) components.

Scenario Analysis: The Summer Workshop Power User

To illustrate the impact of thermal loading, we modeled a high-stress scenario based on adiabatic heating principles (assuming minimal heat loss to the environment).

The Setup (Assumptions):

• Environment: 95°F (35°C) ambient temperature.
• Load: 4 cordless tool batteries (18V 4Ah equivalents) charging simultaneously.
• Duration: 60 minutes of continuous high-speed charging.

The Result: Under these specific "worst-case" conditions, the theoretical temperature could reach upwards of 114°C (237°F). In practice, because most BMS safety thresholds are set between 60°C and 80°C, the system will likely trigger a thermal shutdown before reaching that peak. This often results in tools being only partially charged, as the charger’s independent thermal protection cuts power to prevent hardware damage.

Electrical Load Logic: Avoiding the Circuit Trip

Beyond heat, simultaneous charging demands significant power. Most residential workshops operate on a standard 15A or 20A circuit.

The 80% Capacity Heuristic

A useful professional rule of thumb is to limit concurrent charging to 80% of a circuit's rated capacity. This provides a safety buffer for the "inrush" current and heat-related resistance. For a standard 15A/120V circuit, the total continuous load should ideally stay below 1,300 to 1,400 watts.

When you factor in other workshop essentials—such as LED lighting or a shop vacuum—the headroom for charging diminishes. If you are using high-performance equipment like the Fanttik K2 Nano 3.7V Precision Power Drill or the Fanttik F2 PRO Cordless Rotary Tool Kit, the individual draw per charger is low. However, when scaling across many tools, the cumulative load must be monitored.

Logic Summary for Circuit Management:

1. Identify the Circuit: Ensure your charging station isn't sharing a circuit with high-draw machinery like a table saw.
2. Calculate the Draw: Sum the wattage listed on the "Input" label of your chargers.
3. Monitor Temperature: Use an infrared thermometer to check the casing of your chargers during the first 20 minutes. If a unit exceeds 50°C (122°F), it is an indicator that you should improve ventilation.

The BMS vs. Charger Thermal Tug-of-War

The charger and the battery operate as two independent systems with their own safety protocols.

• The Battery BMS: Monitors cell temperature and will stop energy flow if internal cells exceed safe limits (often around 60°C).
• The Charger Protection: Monitors its own internal transformers and capacitors. It may shut down at 70°C to prevent hardware failure, even if the battery itself is still cool.

We often see cases where a user believes a battery is defective because it "won't charge," when the charger has actually entered thermal protection because it was stacked too closely with other units. As noted in The 2026 Modern Essential Gear Industry Report, effective heat management requires looking at the entire environment—ambient air, placement, and load—rather than relying on internal sensors alone.

Selecting Tools for Thermal Resilience

When building a toolkit, look for tools engineered with thermal efficiency. For delicate assembly, the Fanttik L2 Pro Cordless Electric Screwdriver balances power with energy management. For electronics, the Fanttik T1 Max Soldering Iron Kit uses algorithms designed to minimize waste heat during the charging phase.

By choosing modern engineering, you can reduce the total thermal "tax" on your charging hub. For more details, see our guide on How a Battery Management System Extends DIY Tool Life.

Compliance and Regulatory Safety Standards

Managing thermal loads is also a matter of safety awareness. In the European market, the EU General Product Safety Regulation (EU) 2023/988 emphasizes that products must not pose a fire risk under foreseeable conditions.

Furthermore, if you transport tools, consult the IATA Lithium Battery Guidance. Batteries that have been subjected to chronic overheating can, in some cases, develop internal issues that may affect their eligibility for air transport under safety classifications (e.g., PI 965). Always refer to the latest IATA or local transport regulations for definitive guidance.

Best Practices for Workshop Thermal Management

To maintain a reliable and safe workshop, consider this five-step protocol:

1. Avoid Stacking: Never stack chargers. This creates a "thermal stacking" effect where the bottom unit heats the top one.
2. Active Airflow: In summer, a small USB fan can provide cross-ventilation. Internal shop measurements using IR thermometers have shown this can lower casing temperatures by 10–15°C compared to stagnant air.
3. Staggered Charging: If you have many tools, charge them in shifts to allow transformer components to cool between cycles.
4. Surface Selection: Place chargers on non-combustible, heat-conductive surfaces like a metal workbench. Avoid wood, plastic, or carpet.
5. Pre-Charge Cooldown: Allow a battery to reach ambient temperature after a high-intensity task before plugging it in. Charging a "hot" battery is a common trigger for BMS shutdowns.

Summary of Thermal Management Heuristics

Conclusion

Managing thermal loads is a critical skill for the modern DIYer. By understanding the relationship between ambient temperature, electrical load, and physical placement, you can protect your investment and ensure your workshop remains a safe space. Effective thermal management is a system-wide responsibility—even the best tools require a well-ventilated environment to perform at their peak.

Disclaimer: This article is for informational purposes only and does not constitute professional electrical or fire safety advice. The values provided are estimates based on internal observations and theoretical modeling, not mandatory legal standards. Always consult your local electrical codes and product manuals. If you have concerns about battery safety, consult a certified electrician.
