How to Connect an Electric Bike Pump to Presta Valves Without Leaking Air

To connect an electric pump to a Presta valve without leaking air, first find out what kind of head your pump has and read its Presta instructions. Then remove the valve's dust cap, loosen the small lock ring at the tip, and attach the head the way your manual says. Some heads screw on. Others push on and lock.

No single attachment sequence works for every electric pump. Your pump's manual decides how the head seats, locks, and releases. If the head won't seat or air keeps hissing out, stop and recheck the fit. Don't force it.

How to Connect an Electric Pump to a Presta Valve

A good Presta valve pump connection comes from two things: preparing the valve correctly and using the head exactly as your model is designed to work. The steps below take you from an unknown pump to a quiet, sealed connection.

1. Identify your pump model and its head type. Look for the model name on the pump body or the box. Then open the part of the manual that covers Presta valves. That section tells you whether the head fits Presta as it is, needs a setting change, or needs an adapter.
2. Remove the dust cap and loosen the lock ring. General bike-pump guidance in BikeExchange's tire pumping guide says to take off the Presta dust cap and loosen the valve's lock ring before you pump. The lock ring is the small nut at the very tip of the valve stem.
3. Match your hands to the head mechanism. The same guide notes that pump heads either screw on or push on and lock. A screw-on head threads onto the valve. A push-on head slides over the valve and then locks in place. Your manual tells you which kind you have and how to secure it.
4. Start inflating only after the head is secured as the manual describes. When the connection is right, you shouldn't hear air hissing out at the head once it's locked. If you do, go to the troubleshooting section below before you keep pumping.

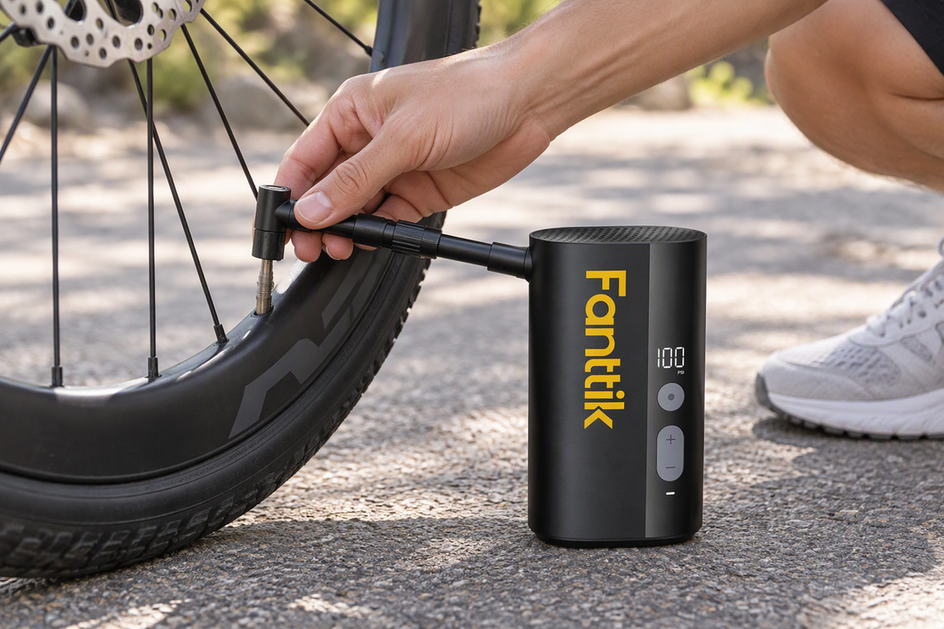

Our Fanttik X9 Ace Bike Pump shows why step 1 matters. It has an integrated Presta/Schrader nozzle that comes set up for Presta. Reversing the nozzle part converts it to Schrader, the wider valve found on car tires and many bikes.

So if someone switched an X9 Ace to Schrader, reverse the nozzle part back before you try it on a Presta valve. That nozzle setting is the Presta-specific part of the setup. For seating, starting, and removing the head, follow the X9 Ace manual.

This nozzle check applies to other pumps too. Many connection problems are really setup problems. A head set for the wrong valve type, or an adapter the manual never mentions, can't make a clean seal no matter how carefully you press it on. Settle the setup first, then attach.

Do You Need a Presta Adapter?

You need an adapter only when your pump's own documentation says the head needs one for Presta. A connector that looks like it should fit isn't proof that it will. The exact model's instructions decide whether you connect directly or through an adapter.

• The manual documents a direct Presta head: Attach the head directly in its Presta setting. The X9 Ace falls here. It uses its integrated nozzle in the Presta setting rather than a separate adapter.
• The manual names a compatible adapter: Use that adapter and attach it the way the instructions describe. Then connect the pump head to it as directed.
• Presta fit isn't documented anywhere: Pause before attaching anything. Find the model's manual or contact the pump maker's support to confirm the fit. Don't try an adapter just because it's the right general size.

This matters because the adapter becomes part of the seal. Any fit you haven't confirmed adds one more place for air to escape. A documented setup removes that guesswork before air starts flowing.

What to Do if the Head Won't Seat or Keeps Leaking

Stop as soon as the head won't seat or air keeps escaping, and don't force the fitting. Pushing harder or twisting the valve won't fix a fit your pump wasn't designed for. Work through these steps instead.

1. Stop pumping. Don't keep running the pump while air is leaking at the head.
2. Recheck the setup against the instructions. Confirm the exact head or adapter, its Presta setting, and the attachment method in your pump's manual. Also confirm the dust cap is off and the lock ring is loosened.
3. Reattach once the setup is confirmed. If you keep hearing air escape after the head is attached and locked, general pump-head guidance says you may need to try the connection again. Follow your manual's attachment steps from the start.
4. Stop again if it still won't seal. If the head still won't seat, or your pump's Presta fit isn't documented, don't keep trying. Get the model's documentation or contact support before your next attempt.

When you're done inflating, pull the head straight off without bending or moving the valve. Use the release method in your pump's manual if it describes one. A straight pull keeps side force off the thin Presta stem while the head comes free.

FAQs

Do some pumps work with both Presta and Schrader without any change?

Yes. According to BikeExchange's valve guidance, some pumps adjust automatically to work with both valve types. Other pumps need a setting change or a different head. Your pump's instructions tell you which kind you have. If they aren't clear, read them again before attaching the pump to a Presta valve.

Can the X9 Ace inflate a Schrader valve too?

Yes. The X9 Ace has an integrated Presta/Schrader nozzle. It ships set for Presta, and reversing the nozzle part switches it to Schrader. If you use it on both kinds of bikes, check which way the nozzle part faces before each connection so it matches the valve in front of you.

Does a hiss when I remove the pump head mean the tire lost air?

Not necessarily. A short burst of air as the head comes off is most likely pressurized air from the pump, not from the tire, based on the same general bike-pump guidance. A brief hiss at removal is different from air that keeps escaping while the head is locked on. Ongoing air escape during inflation is the sign to stop and reconnect.
