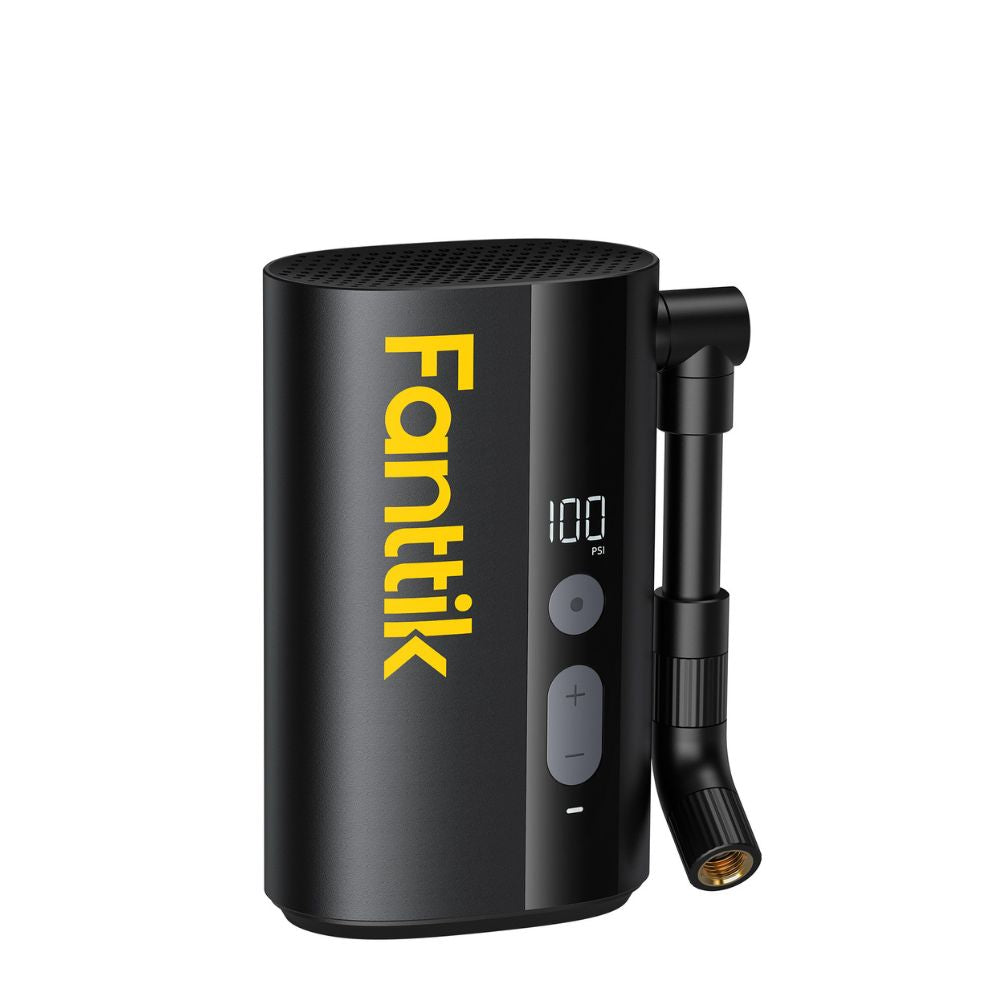

This practical guide covers the Fanttik X9 Ace Bike Pump, a compact electric bike pump intended for bicycle-tire inflation. It is designed for owners looking for a clear setup and care reference. It does not substitute for the safety leaflet supplied with the product, and it deliberately does not link to an unverified manual PDF.
Before First Use
- Confirm which valve is on the bicycle and fit the matching connector or adapter.
- Check that the valve stem is straight and the valve core is not loose.
- Charge the pump before leaving on a ride, then pack the required valve adapter with it.
Photograph the product label and keep the order details before the first job. Those details make model confirmation and warranty support much easier if the tool later needs service.
Safe Operating Workflow
- Read the pressure range molded on the bicycle tire sidewall.
- Connect the pump without pulling the valve stem sideways.
- Choose the pressure unit you normally use and set a target inside the tire maker's range.
- Run the pump while supporting the connector, then allow it to stop at the target.
- Disconnect promptly, close the valve if required, and check that no air is escaping.
If a control, icon, or indicator on your unit differs from this overview, stop and follow the labeling on the product and the documentation supplied in its box. Do not borrow button sequences or indicator meanings from a sibling Fanttik model.
Charging and Storage
Charge in a dry, ventilated place with the connection specified for the product. Inspect the cable and port before use, and stop if a connector becomes unusually hot or loose. For storage, switch the product off, clean away working debris, and keep it away from direct sun, standing water, and temperature extremes. If it will sit unused, check it periodically rather than allowing the battery to remain deeply discharged.
Routine Care
- Wipe dust from the connector after trail or road use.
- Do not store a small pump while it is hot from a long inflation cycle.
- Keep adapters together in a pouch so the correct fitting is available on the road.
Routine care should stay external: cleaning accessible surfaces, checking consumables, and keeping connections dry. Opening a sealed battery or drive housing can create a safety risk and should be left to Fanttik support.
When the Product Does Not Behave Normally
| Symptom | First safe check | Next action |
|---|---|---|
| No power | Confirm charge state and control position | Test a known-good charging source, then contact support if there is still no response |
| Stops under load | Remove the load and let the product cool | Check for binding, debris, or an unsuitable accessory |
| Unusual heat, odor, or noise | Switch off and move away from combustible material | Do not continue testing; request service |
Manual and Support Options
The current product page is the verified online source for this exact model. A reliable official PDF URL was not confirmed during preparation, so this draft does not invent or republish one. Keep the printed documentation supplied with the product and use the Fanttik Support Center to request model-specific documentation when needed. The Fanttik manual hub also collects manuals that have verified sources.
Match the Pump to the Bicycle Valve
Bike tires commonly use Schrader or Presta valves, and the connection method is not interchangeable by force. A Schrader stem has a central pin and resembles a car-tire valve. A Presta stem is narrower and usually has a small threaded tip that must be loosened before inflation and closed afterward. Inspect the adapters supplied with your exact X9 Ace package and use only the fitting intended for the valve in front of you.
Support a Presta stem while connecting the pump. Side-loading a narrow stem can damage the tube at its base even when the pump itself is working normally. If air leaks immediately, remove the connector and start again rather than tightening at an angle. For a tubeless setup, a failure to gain pressure can come from an unseated tire bead or sealant problem; a portable pump should not be blamed until the wheel and valve have been checked.
Pressure depends on the bicycle, not the pump
Road, gravel, mountain, cargo, and electric-bike tires use very different pressures. Start with the tire maker's printed range and the bicycle maker's guidance, then consider rider load and surface. Do not reuse a car preset or another rider's number. A target that is safe for a wide mountain-bike tire can be unsuitable for a narrow road tire, and the reverse is also true.
A practical ride-preparation routine
Before leaving, squeeze both tires, look for embedded debris, and verify that the pump, charging cable, and correct valve adapter are together. After inflation, listen at the valve and rotate the wheel once to check for an obvious leak. Stowing the X9 Ace in a clean pouch keeps grit out of its connector and prevents a small adapter from disappearing into the bottom of a riding bag.
FAQ
Is this an official manual PDF?
No. It is a locally prepared setup and care guide based on the verified official product page. No unverified PDF is linked.
Can I use instructions from a similar Fanttik model?
Use sibling-model advice only for general care. Controls, chargers, accessories, and indicator behavior can differ, so confirm instructions for the exact model.
What should I record before contacting support?
Record the model label, order details, charging source tested, accessory installed, and a short description or video of the symptom.
Should I open the housing to replace the battery?
No. This guide does not treat an internal battery or sealed drive assembly as user-serviceable.
